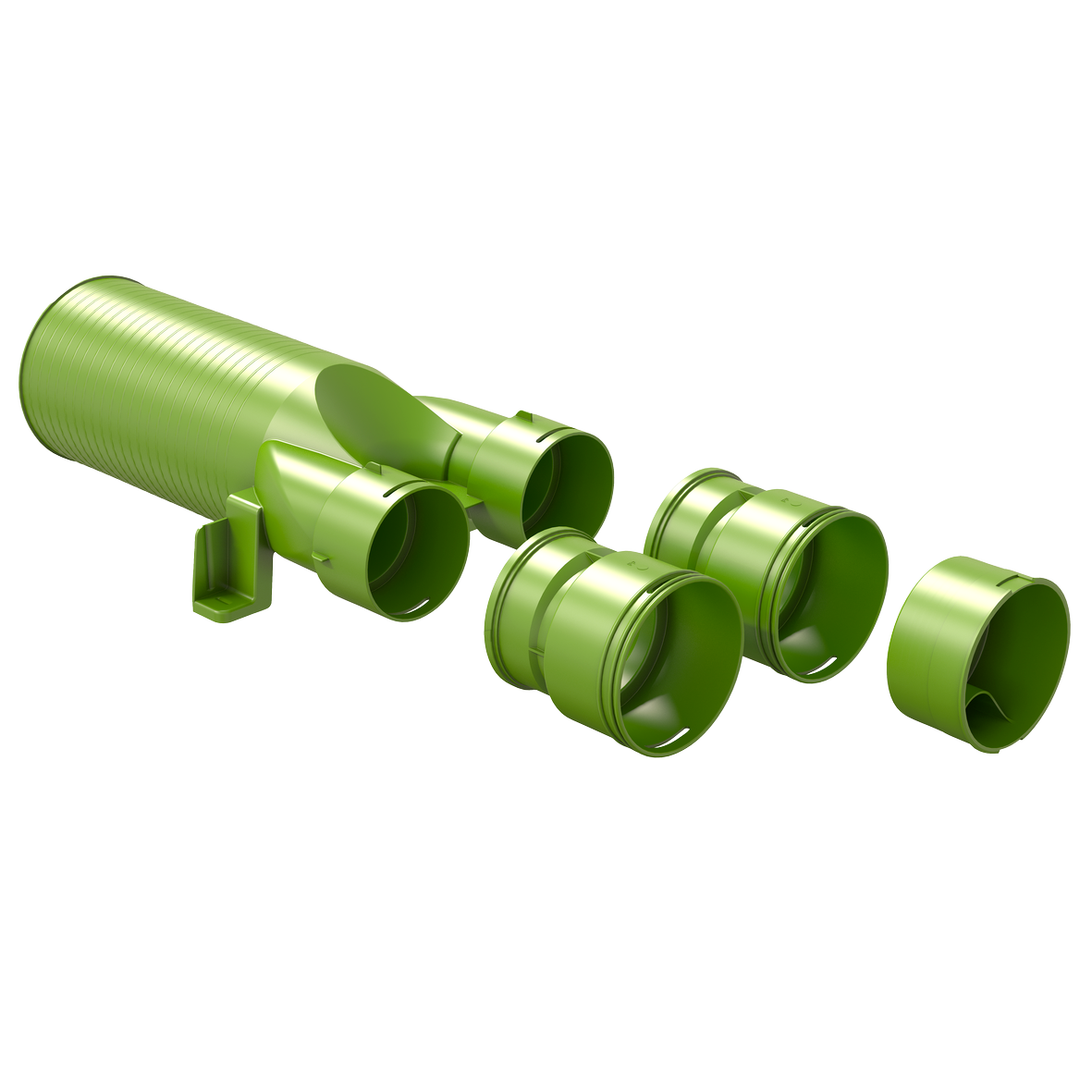

Air Excellent 2x AE48C Valve Adaptor 125mm 180°

Article number: 188535

The valve adapter is an AE48C component. Use an AE48C seal ring and an AE48C click ring to connect the AE48C duct to it.

  • Low system pressure loss due to radial design
  • Antistatic and antimicrobial properties
  • Safe and quick assembly
  • Airtight (class ATC1 up to +/- 1000 Pa) thanks to mechanical connections, which minimises fan energy use and sound production
View all specifications
Air Excellent 2x AE48C valve adaptor 125mm 180°
Dimensional drawing – 2x AE34C Valve Adaptor 125mm 180°

All media

Air Excellent 2x AE48C valve adaptor 125mm 180°
Dimensional drawing – 2x AE34C Valve Adaptor 125mm 180°
Air Excellent 2x AE48C valve adaptor 125mm 180°
Air Excellent 2x AE48C valve adaptor 125mm 180°
Dimensional drawing – 2x AE34C Valve Adaptor 125mm 180°

Detailed information

This item can be used to terminate a duct run inside a habitable or wet room. A valve must be inserted into it.

Specifications

General

Product Name
Air Excellent 2x AE48C Valve Adaptor 125mm 180°
GTIN
8713645246987
Type
Adaptors
Trade name
Air Excellent

Technical

Comm. Dimension
90 mm
Shape
Circular
Anti static
Airflow direction
Supply / extract
Colour
Green
Number of connections
2
Antimicrobial

Dimensions

Length gross
397 mm
Height
134 mm
Width
234 mm
Net weight
0.627 kg

Logistical

Intrastat
39259080
Gross weight
0.627 kg
Packaging / Trade width
234 mm
Base unit packaging
Unpacked
Packaging / Trade length
397 mm
Packaging / Trade height
134 mm

Performance

CE string
-
Temperature resistance (max.)
60 °C
Temperature resistance (min.)
-20 °C

Downloads

Installation manual

Installation manual - Air Excellent ductwork

Technical data sheet

Technical data sheet - Air Excellent 2x AE48C Valve Adaptor 125mm 180°

Brochure/folder

Brochure - Smart ventilation, healthy living
