Air Excellent AE48C Valve Adaptor 125mm 90° Haelix Stella

Article number: 188072

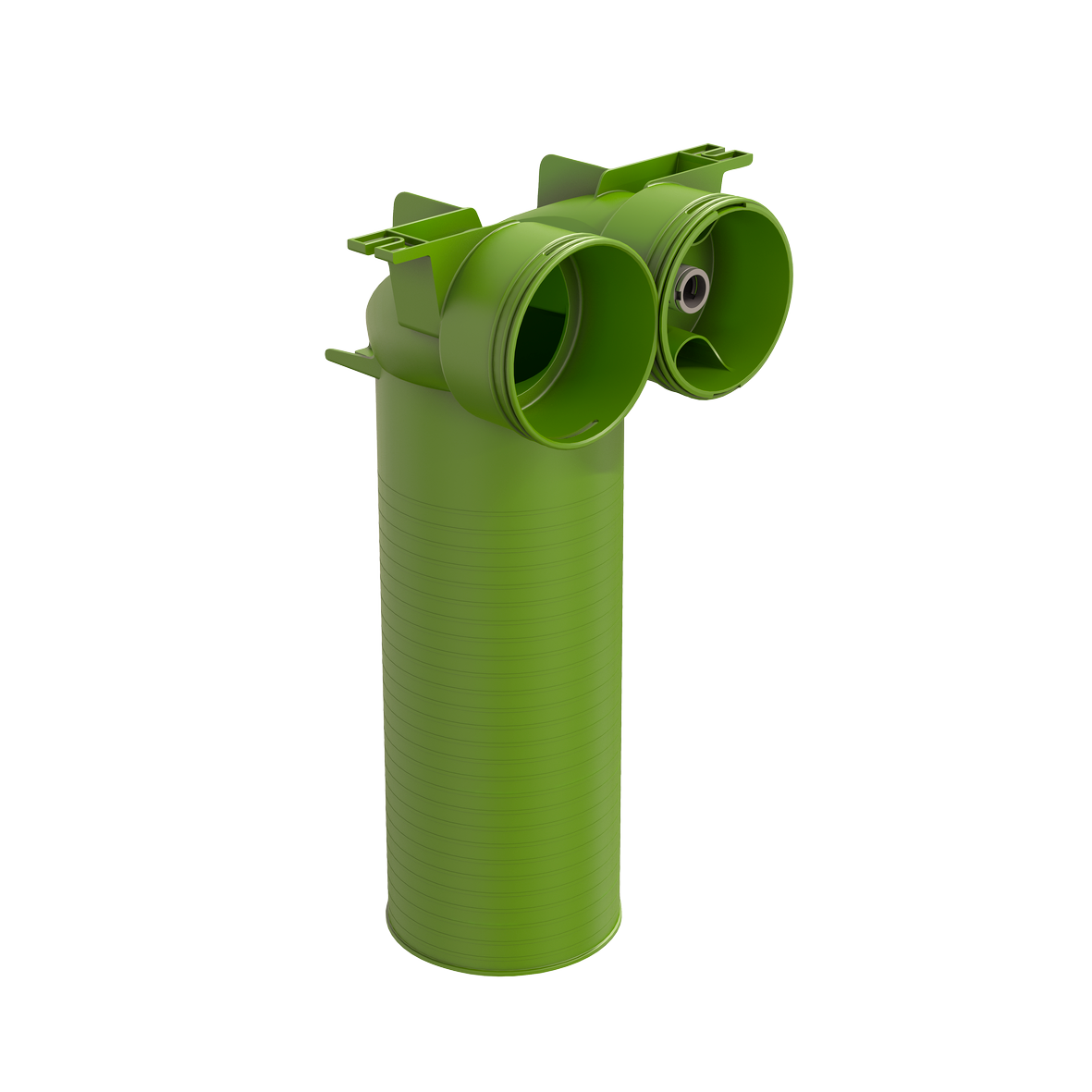

Haelix Stella valve adaptor AE48C PP green
Dimensional drawing – 2x AE48C Valve Adaptor 125mm 90°
Haelix Stella valve adaptor AE48C PP green
Dimensional drawing – 2x AE48C Valve Adaptor 125mm 90°

The Air Excellent AE48C Valve Adaptor 125 mm 90° ensures a perfect fit for the Haelix Stella valve, providing a seamless connection to an AE34C Air Excellent duct. A built-in cable gland allows a 16 mm pre-wired preflex to pass through for quick and secure electrical connection of the Haelix Stella valve. Designed for easy installation, it ensures a reliable and efficient setup for ventilation and lighting in one.

  • Class D/ATC 2 up +/- 2000 Pa thanks to mechanical connections, minimize fan energy use and sound production.
  • Features a built-in cable gland for secure electrical connection.
  • Simple to cut to the desired length, ensuring a perfect fit for every installation.
  • Easily assembled with the Haelix Stella valve and Air Excellent duct for a seamless setup.
View all specifications

Specifications

General

Product Name
Air Excellent AE48C Valve Adaptor 125mm 90° Haelix Stella
Trade name
Air Excellent
GTIN
8713645246628

Technical

Colour
Green
Material
PP
Number of connections
1
Antimicrobial
Colour indication
RAL 6038
Shape
Circular
Anti static
Airflow direction
Supply / extract

Dimensions

Length gross
426 mm
Height
180 mm
Width
180 mm

Logistical

Intrastat
39259080
Packaging / Trade length
557 mm
Packaging / Trade height
233 mm
Base unit packaging
Box
Packaging / Trade width
257 mm

Performance

CE string
-
Temperature resistance (max.)
60 °C
Temperature resistance (min.)
-20 °C
