Air Excellent 2x AE34C - AE45SC 90° Adaptor kit

Article number: 188995

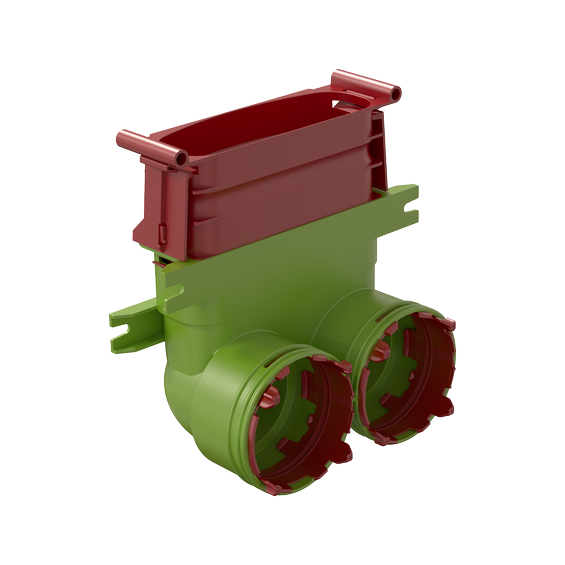

Air Excellent 2x AE34C - AE45SC 90° Adaptor kit

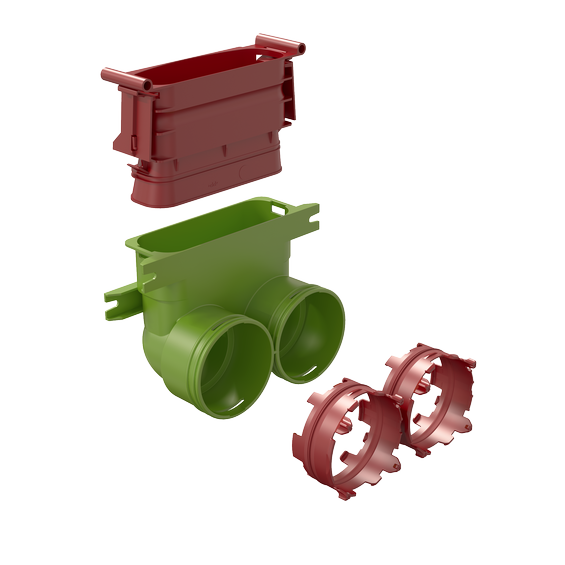

Exploded view - Air Excellent 2 x AE34C - AE45SC 90° Adaptor kit

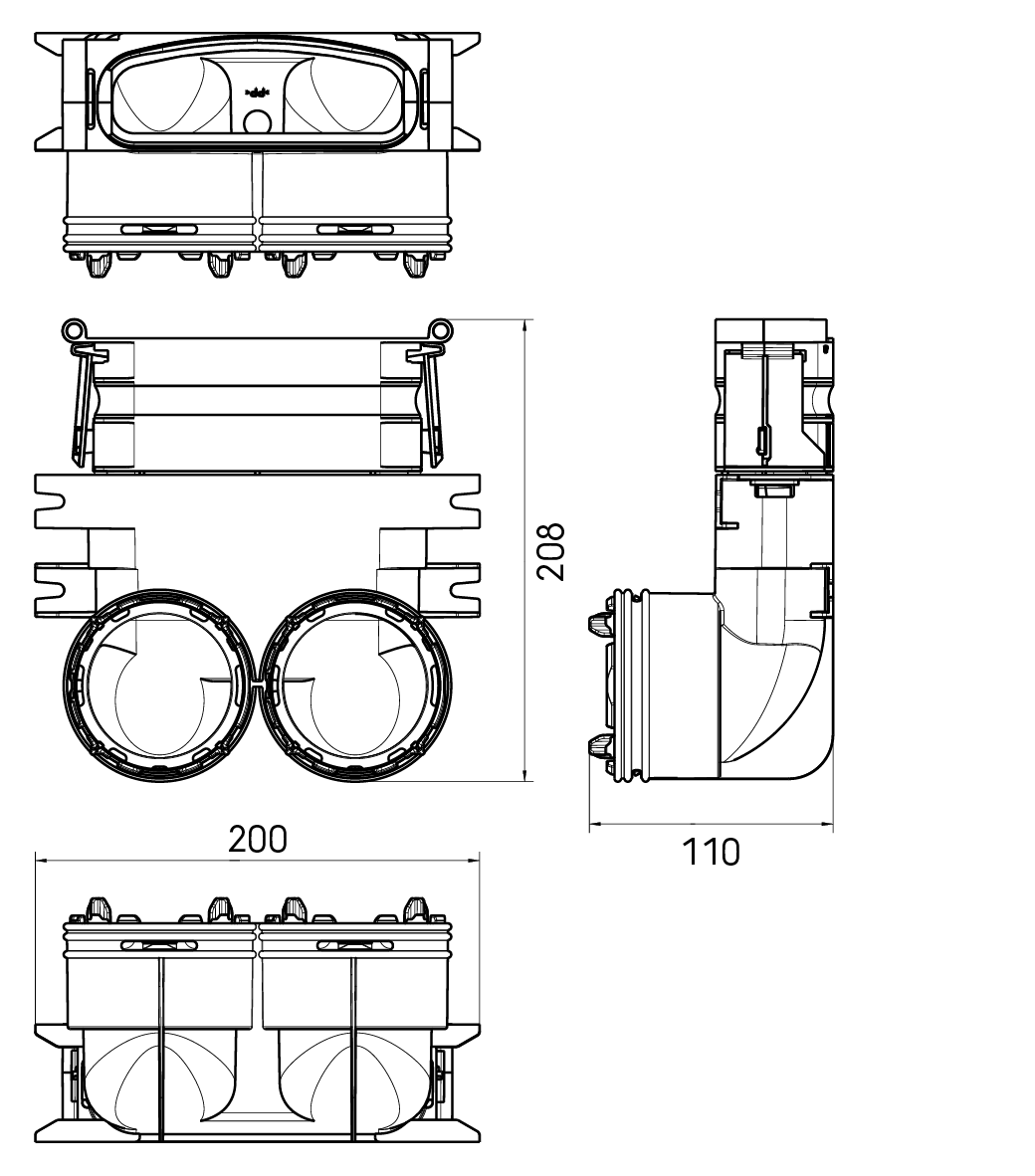

Dimensional drawing - Air Excellent 2x AE34C - AE45SC 90° Adaptor kit
Air Excellent 2x AE34C - AE45SC 90° Adaptor kit
Exploded view - Air Excellent 2 x AE34C - AE45SC 90° Adaptor kit
Dimensional drawing - Air Excellent 2x AE34C - AE45SC 90° Adaptor kit

The 2x AE34C - AE45SC 90° Kit Adaptor seamlessly connects an AE45SC duct with two AE34C ducts, making it possible to create a 90° bend in your system, ensuring a quick, secure and tool-free installation. Includes two AE34C Click-Seal Rings and one AE45SC Seal Ring.

  • Airtight connections for reliable system performance
  • Low pressure loss to reduce fan energy use
  • Quick, tool-free installation
  • Lightweight design for easy handling
  • TÜV SÜD-certified for quality and safety
View all specifications

Specifications

General

Product Name
Air Excellent 2x AE34C - AE45SC 90° Adaptor kit
Trade name
Air Excellent
GTIN
8713645247717

Technical

Comm. Dimension
50 x 140 mm / 75 mm
Number of connections
2
Antimicrobial
Colour
Green
Anti static
Airflow direction
Supply / extract

Dimensions

Length gross
208 mm
Height
110 mm
Width
200 mm
Net weight
0.23 kg

Logistical

Intrastat
39259080
Gross weight
0.23 kg
Packaging / Trade width
98200 mm
Base unit packaging
Unpacked
Packaging / Trade length
208 mm
Packaging / Trade height
110 mm

Performance

CE string
-
Temperature resistance (max.)
60 °C
Temperature resistance (min.)
-20 °C

Downloads

Certificate

Certificate - TÜV SÜD Air Excellent

Installation manual

Installation manual - Air Excellent ductwork
