Ventilation
Solving Long -Term Damp and Underfloor Ventilation Challenges at Oxford Christadelphian Church
Project Date:
June 2026
Project Location:
Oxfordshire
Specialist Installer:
Ventilation Partner:
Ubbink UK
Ubbink Technical Support:
Overview

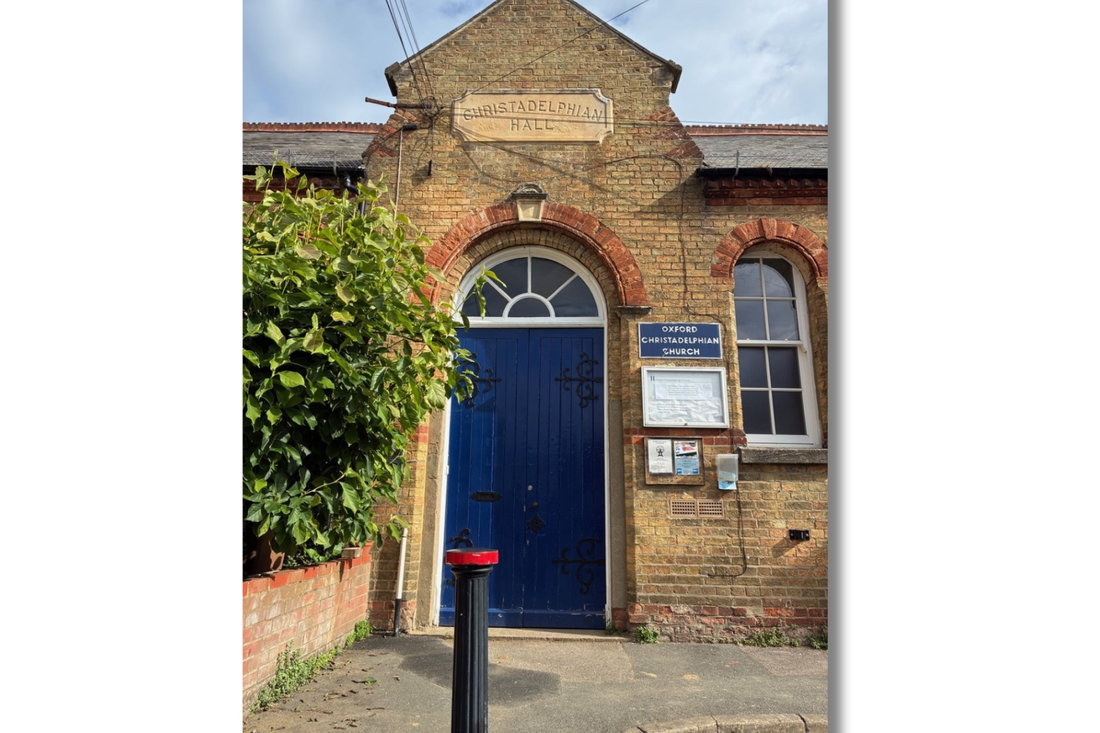

When the Oxford Christadelphian Church approached Byfield Damp Solutions, they faced a persistent damp problem that had affected the historic building for decades. Located in low lying central Oxford, just a few hundred metres from the River Cherwell, the late-19th-century church had experienced ongoing moisture issues beneath its suspended timber floor, leading to structural deterioration, unpleasant odours and internal damage.
Byfield Damp Solutions designed and implemented a specialist ventilation strategy that addressed the root cause of the problem rather than simply treating the symptoms. Working alongside Ubbink UK, the project successfully restored healthy airflow beneath the building while preserving energy efficiency.
Within two days of installation and commissioning, the system had quietly operated at less than 50% capacity while moving approximately 4.8 million litres of air through the underfloor space.
The Challenge
Like many Victorian buildings, the church was originally constructed with a suspended timber floor and traditional air bricks to provide natural underfloor ventilation.
Over time, alterations to neighbouring properties and changes to the surrounding landscape significantly reduced the natural airflow beneath the building. Combined with the church's low-lying position close to the River Cherwell, moisture became trapped within the underfloor void.
The consequences included:

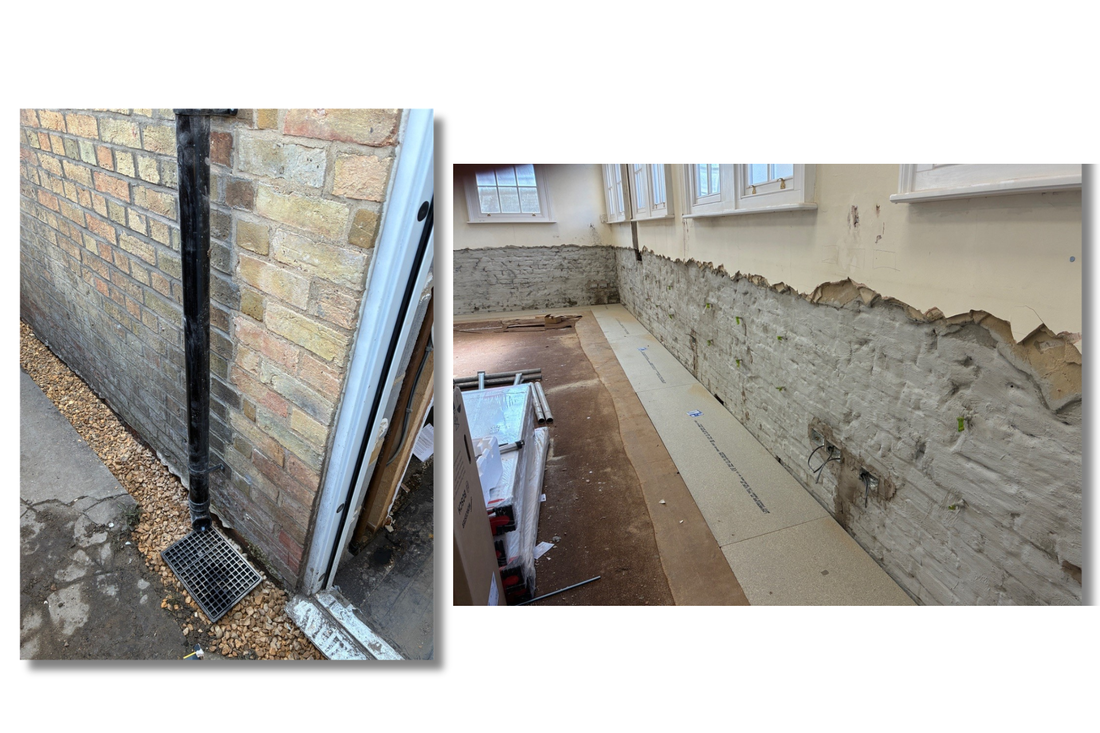

- Persistent damp odours throughout the building.
- Damp soil beneath the suspended timber floor.
- Previous timber floor failures requiring replacement.
- Blown internal plaster caused by moisture ingress.
- Poor air circulation beneath inaccessible sections of the building.
While external drainage & surface water handling improvements, ground level corrections and specialist waterproofing treatments resolved the sources of water ingress, achieving effective ventilation beneath the floor remained the most technically challenging aspect of the project.
The Solution
Following a detailed assessment, Byfield Damp Solutions determined that a mechanical ventilation system would provide the most effective long-term solution.

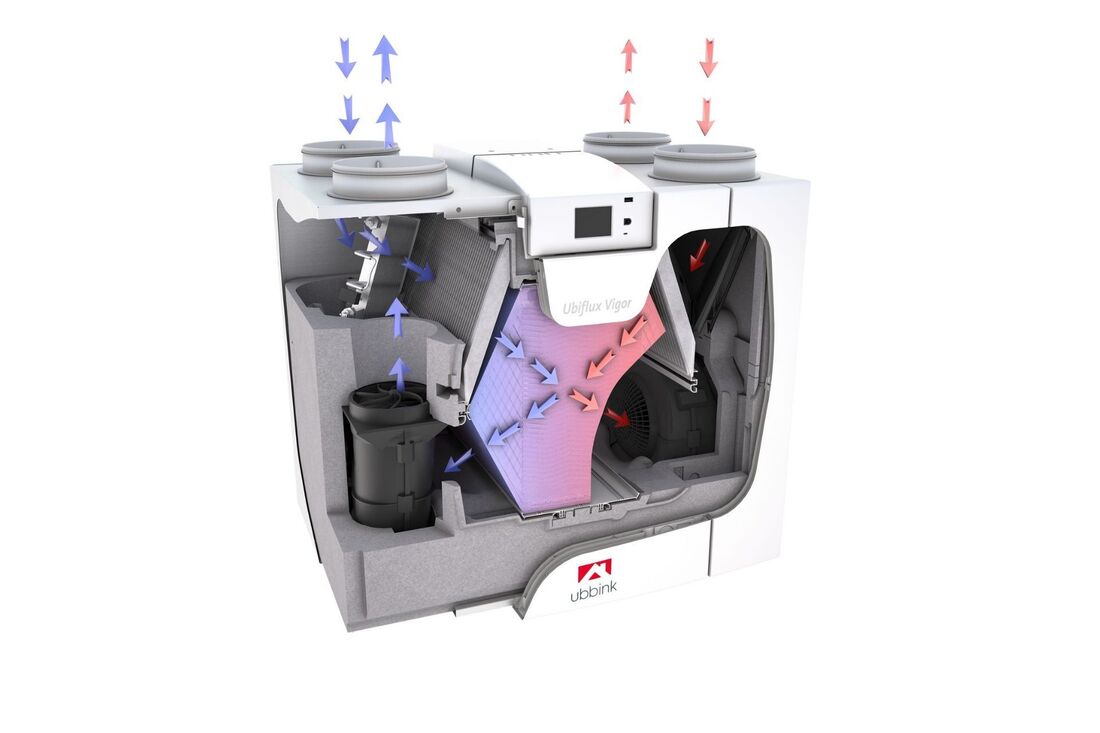

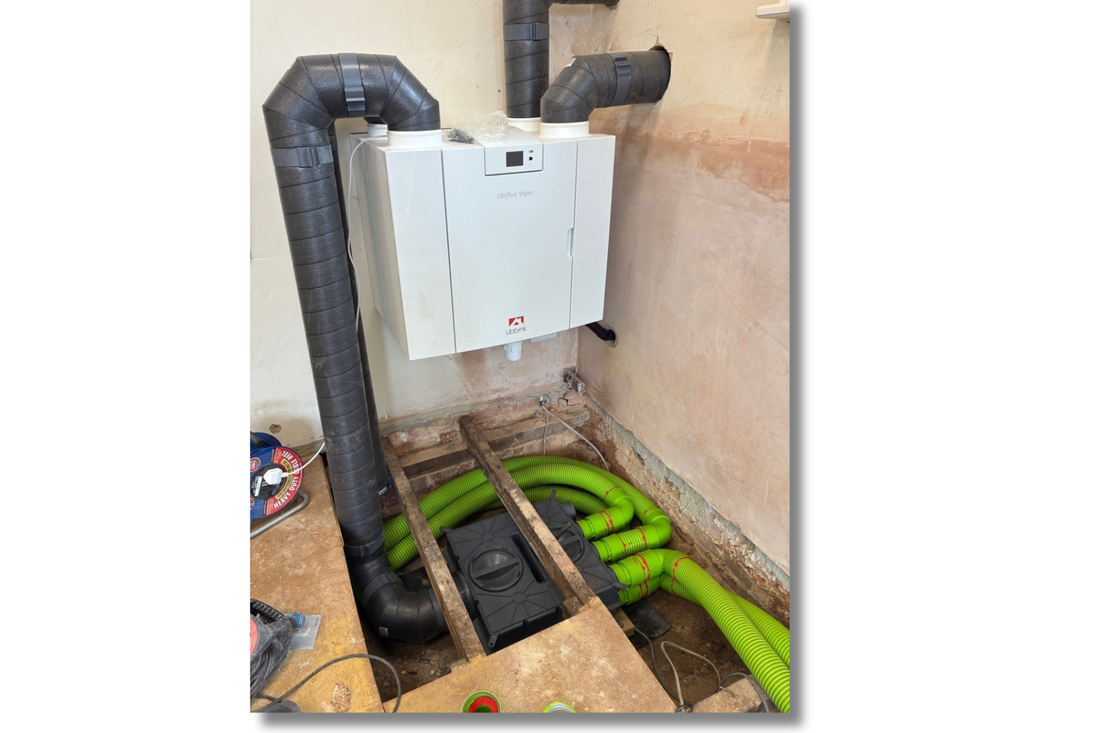

The chosen system was the Ubbink Vigor W325 MVHR (Mechanical Ventilation with Heat Recovery) unit, selected for its flexible ducting options, intelligent airflow balancing and energy-efficient heat recovery technology.

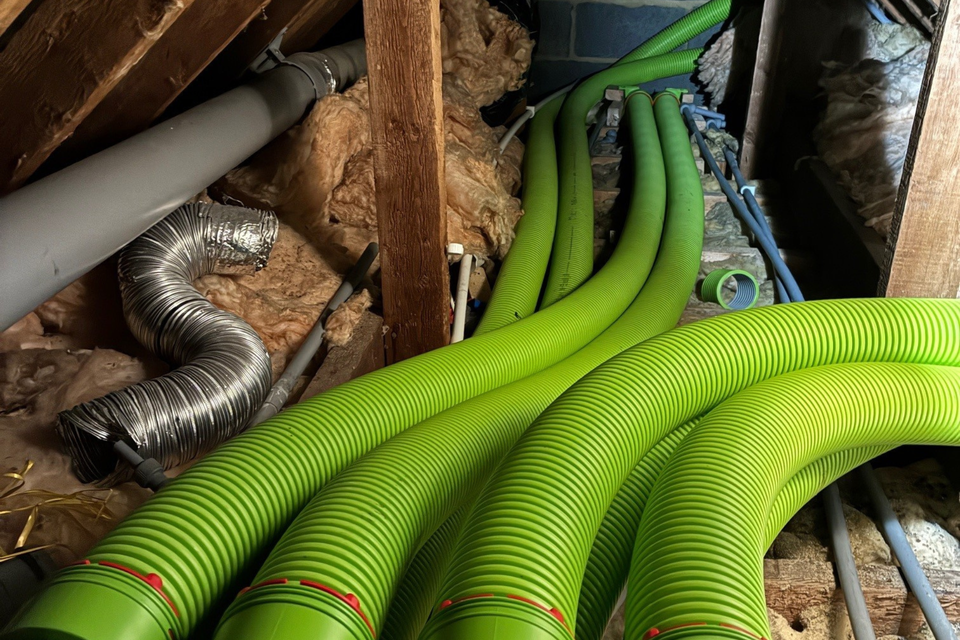

The ventilation strategy focused on creating continuous air movement beneath the suspended floor by:
- Supplying fresh air into the underfloor void.
- Directing airflow towards areas with little or no natural ventilation.
- Extracting moisture-laden air from the opposite side of the building.

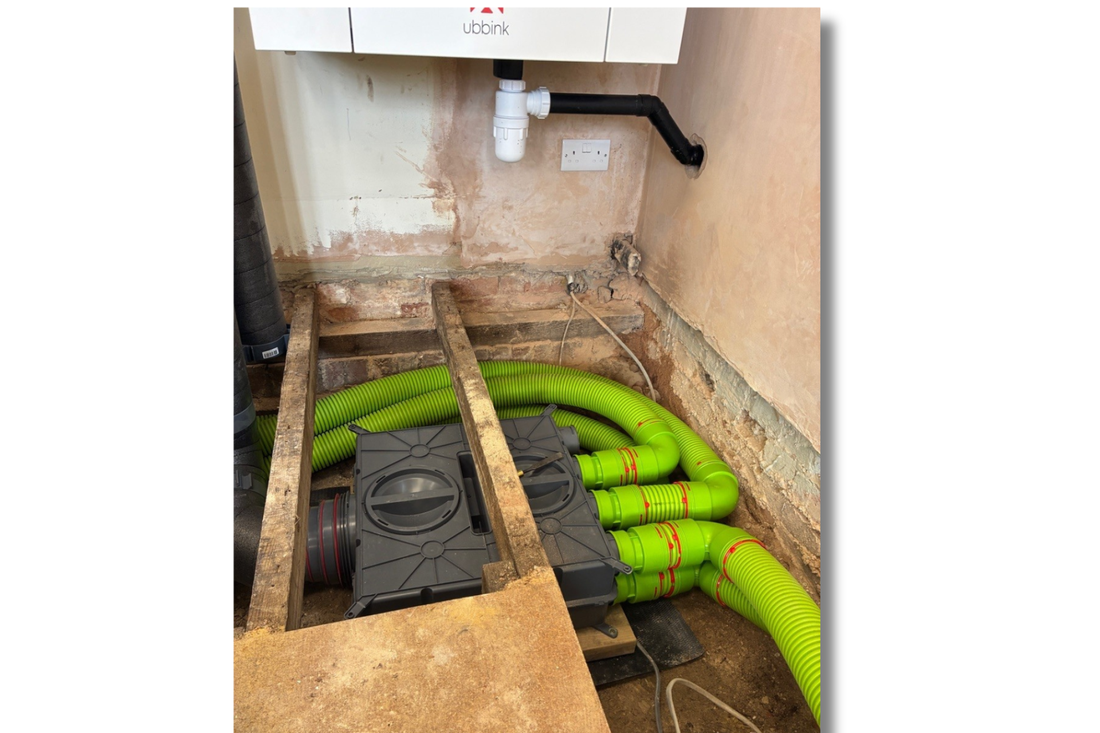

- Carefully balancing airflow using Ubbink's adjustable distribution system to ensure every section of the void received adequate ventilation.
Unlike conventional extract-only systems, the MVHR unit also recovers heat from the extracted air. This helps maintain more stable temperatures beneath the floor during colder months, avoiding the introduction of excessively cold outside air while still providing continuous moisture control.
Installation Results
Within two days of installation and commissioning, the system had quietly operated at less than 50% capacity while moving approximately 4.8 million litres of air through the underfloor space.
The improvement was very fast.
The long-standing damp smell that had affected the church for years was eliminated, and the underfloor environment became significantly drier.
The success of the project was the result of careful planning, specialist damp remediation expertise and close collaboration with Ubbink UK's technical team. Byfield Damp Solutions would also like to thank Craig Cundey at Ubbink UK for his technical advice and support throughout the project.
Why Mechanical Ventilation Is Essential for Damp Control
Many older buildings suffer from moisture problems not because water is entering the building, but because trapped moisture has no effective means of escaping.
Traditional properties with suspended timber floors are particularly vulnerable when original ventilation routes become blocked or restricted over time.
Mechanical Ventilation with Heat Recovery (MVHR) offers a long-term solution by providing continuous, controlled airflow that removes excess moisture while maintaining energy efficiency.
Rather than masking damp symptoms, properly designed ventilation systems help tackle one of the primary causes of condensation, timber decay and poor indoor air quality.
Benefits of MVHR for Damp and Moisture Problems
Continuous Moisture Control
A constant supply of fresh air and extraction of stale, humid air helps reduce condensation and lower humidity levels throughout the building.
Protection Against Mould
By reducing moisture build-up, MVHR systems significantly decrease the conditions that allow mould growth and musty odours to develop.
Improved Indoor Air Quality
Continuous ventilation removes stale air, airborne pollutants, allergens and excess humidity, creating a healthier indoor environment.
Energy-Efficient Ventilation
Heat recovery technology helps retain valuable heat energy while maintaining continuous airflow, improving comfort and reducing heating costs.
Ideal for Older Buildings
Where natural ventilation has become ineffective, mechanical ventilation provides a practical solution that protects traditional building fabric and suspended timber floors.
Project Outcome
- Following the installation, the Oxford Christadelphian Church now benefits from:
- Continuous underfloor ventilation.
- Stable moisture and humidity levels.
- Elimination of persistent damp odours.
- Improved protection for the suspended timber floor.
- Quiet, energy-efficient operation.
- A healthier internal environment for occupants.
Looking for a Ventilation Solution for Damp or Moisture Problems?
No two buildings are the same, particularly older properties where original ventilation has been compromised over time. Identifying the root cause of excess moisture is essential to delivering a long-term solution.
At Ubbink UK, we work closely with experienced installation partners, such as Byfield Damp Solutions, to provide high-performance ventilation systems that help tackle condensation, excess humidity and poor indoor air quality. Our range of Mechanical Ventilation with Heat Recovery (MVHR) systems is designed to deliver continuous, controlled airflow while improving energy efficiency and creating healthier indoor environments.
Whether you're addressing underfloor damp, condensation, mould growth or wider ventilation challenges, Ubbink UK can support installers, contractors and property owners with proven ventilation solutions that are designed for lasting performance.
