Dry Verge Universal Cap Angled Sepia

Article number: 294158

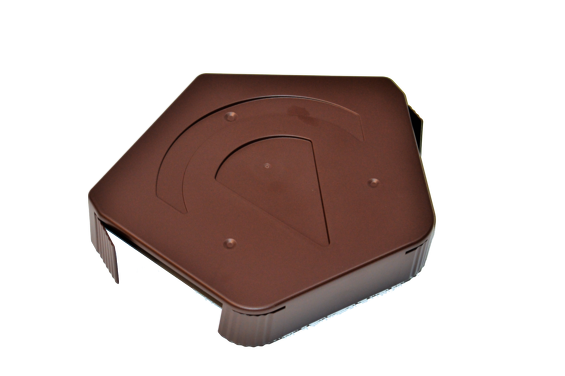

100000294158 - Angled Ridge End Cap Brown
100000294158 - Angled Ridge End Cap Brown

The Ubbink Universal Dry Verge is a mortar free system to mechanically fix the verge tiles according to BS5534. It is quick and easy to install. The units have a water channel built in to prevent water staining, often a common issue with other dry verge systems. With a batten gauge of 255mm to 355mm the system suits most popular profile tiles including the thin leading edge tile. Included in the system is a batten bracket, which gives a secure fixing to the end of the cut flush batten ensuring there is a straight/equal install line for the verge. The system suits roof pitches up to 55° and is easy and quick to install. It offers integral solutions for a secure fixing to the roof. The unique starter unit at the eaves offers three different installation options: fixing to the barge board; to the fascia board; or to the lowest batten. It can also be installed with or without the gutter in place.

  • Ambi handed units
  • Each ambi unit has a built in water drip channel to prevent staining on the gable end
  • Batten gauge range of 255mm to 355mm, suitable for most popular roof tiles including the thin leading edge tile
  • The unique starter unit allows installs to take place before or after the gutter has been installed and includes the eaves closure
  • With our kit we also supply a batten bracket that allows the battens to be cut flush, ensuring an equal overhang of the bracket to give a straight install line up the roof
View all specifications

Specifications

General

Product Name
Dry Verge Universal Cap Angled Sepia
GTIN
8713645218113

Technical

Colour
Sepia
Material
PP

Dimensions

Length gross
265 mm
Height
50 mm
Width
229 mm
Net weight
0.22 kg

Logistical

Intrastat
39259080
Base unit packaging
Unpacked
Packaging / Trade length
265 mm
Packaging / Trade height
50 mm
Number per packaging
10
Gross weight
0.22 kg
Packaging / Trade width
229 mm

Performance

UV resistance
true
