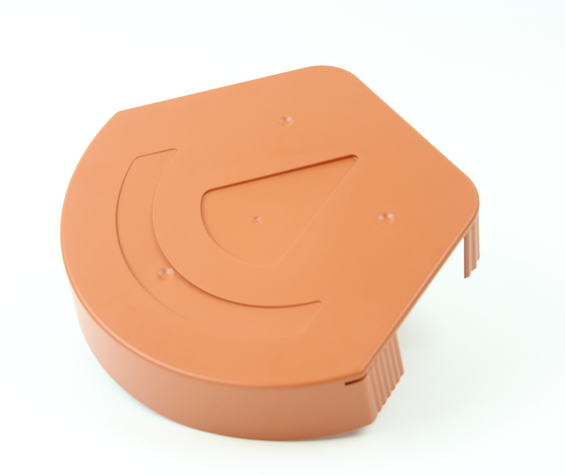

Dry Verge Universal Cap Round Red

Article number: 294156

100000294156 - Dry verge cap round red
100000294156 - Dry verge cap round red

The Ubbink Universal Dry Verge is a mortar free system to mechanically fix the verge tiles according to BS5534. It is quick and easy to install. The units have a water channel built in to prevent water staining, often a common issue with other dry verge systems. With a batten gauge of 255mm to 355mm the system suits most popular profile tiles including the thin leading edge tile. Included in the system is a batten bracket, which gives a secure fixing to the end of the cut flush batten ensuring there is a straight/equal install line for the verge. The system suits roof pitches up to 55° and is easy and quick to install. It offers integral solutions for a secure fixing to the roof. The unique starter unit at the eaves offers three different installation options: fixing to the barge board; to the fascia board; or to the lowest batten. It can also be installed with or without the gutter in place.

  • Each ambi unit has a water drip channel, preventing water staining
  • Suits popular profile roof tiles with a batten gauge range of 255mm to 355mm
  • Suits the thin leading edge tile (additional cutting is required on ambi unit tabs)
  • The starter unit gives a positive fixing point for the system and can be installed either with or without the gutter in place
  • The batten bracket gives a secure fixing to the end of the batten. Also no measuring is required for the 30mm overhang of the batten as the batten bracket abuts a flush cut batten
  • Suits roof pitches up to 55°
View all specifications

Specifications

General

Product Name
Dry Verge Universal Cap Round Red
GTIN
8713645218090

Technical

Colour
Red
Material
PP

Dimensions

Length gross
260 mm
Height
50 mm
Width
228 mm
Net weight
0.22 kg

Logistical

Intrastat
39259080
Base unit packaging
Unpacked
Packaging / Trade length
260 mm
Packaging / Trade height
50 mm
Number per packaging
10
Gross weight
0.22 kg
Packaging / Trade width
228 mm

Performance

UV resistance
true
