Over Fascia Ventilation System OFVS10

Article number: 294122

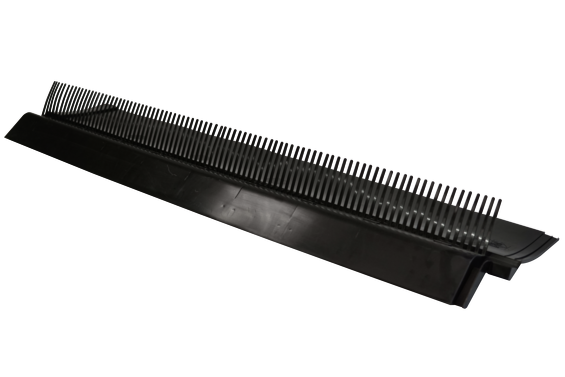

294 122-Sabliere de ventilation_tuile_SV10
294 122-Sabliere de ventilation_tuile_SV10

The Ubbink Over Fascia Vent System is a one-piece interlocking system fitted to the top of the fascia which provides: • Eaves level continuous ventilation • Semi-rigid hinged underlay support flap • Large insect and vermin inhibitor • Discharge of water from underlay to gutter • Under tile bird excluder (OFVS10 only)

View all specifications

Detailed information

Over Fascia Ventilating System 3 in 1 10,000mm2 FVA

Specifications

General

Product Name
Over Fascia Ventilation System OFVS10
GTIN
8711465049504
Type
Eaves

Technical

Colour
Black
Bird protection
false
Material
PP

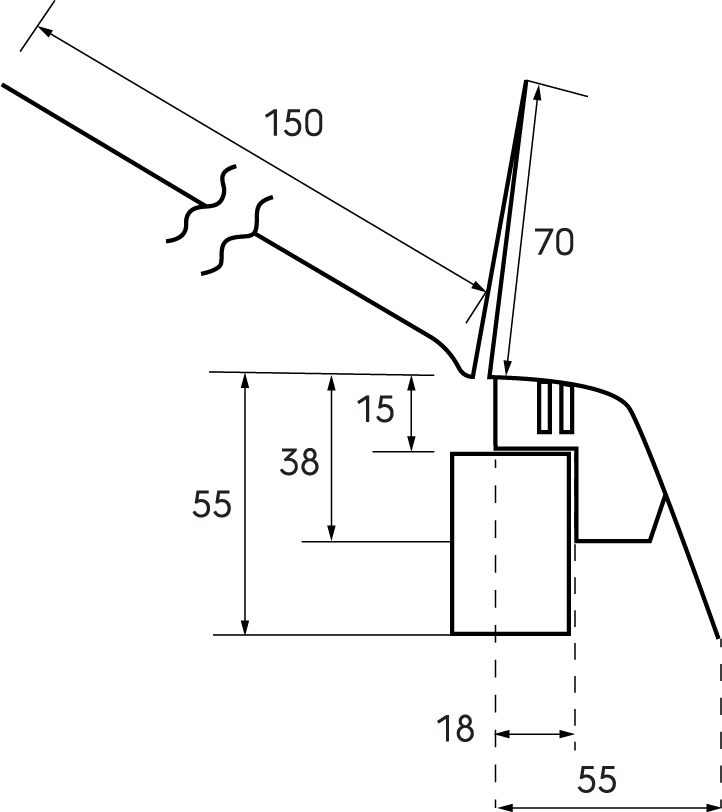

Dimensions

Length gross
0.9 m / 900 mm
Height
128 mm
Width
220 mm
Net weight
0.37 kg

Logistical

Intrastat
39259080
Base unit packaging
Box
Packaging / Trade length
1010 mm
Packaging / Trade height
940 mm
Number per packaging
40
Gross weight
0.42 kg
Packaging / Trade width
385 mm
