294 139-Sabliere de ventilation_ardoise_SV10

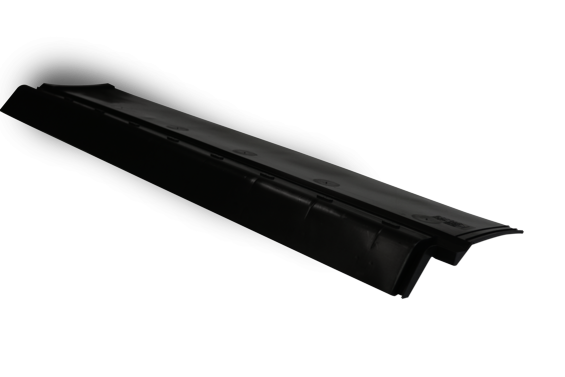

Over Fascia Ventilation System OFVS10L

Article number: 294139

294 139-Sabliere de ventilation_ardoise_SV10
294 139-Sabliere de ventilation_ardoise_SV10

The Ubbink Over Fascia Vent System is a one-piece interlocking system fitted to the top of the fascia which provides: • Eaves level continuous ventilation • Semi-rigid hinged underlay support flap • Large insect and vermin inhibitor • Discharge of water from underlay to gutter • Under tile bird excluder (OFVS10 only)

View all specifications

Detailed information

Over Fascia Ventilating System 2 in 1 10,000mm2 FVA

Specifications

General

Product Name
Over Fascia Ventilation System OFVS10L
GTIN
8711465049511
Type
Eaves

Technical

Colour
Black
Bird protection
false
Material
PP

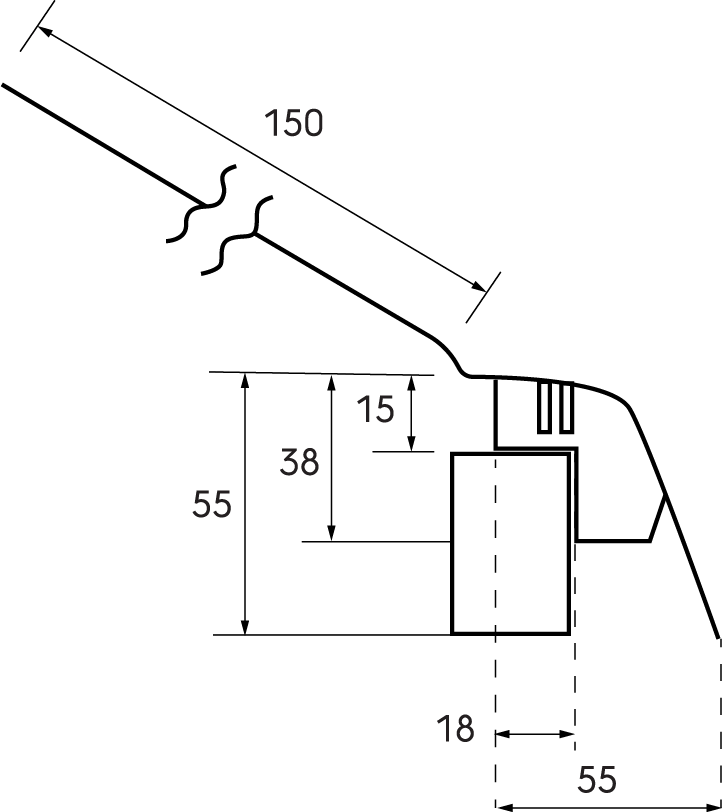

Dimensions

Length gross
900 mm
Height
65 mm
Width
220 mm
Net weight
0.34 kg

Logistical

Intrastat
39259080
Base unit packaging
Box
Packaging / Trade length
1010 mm
Packaging / Trade height
940 mm
Number per packaging
40
Gross weight
0.37 kg
Packaging / Trade width
165 mm

Downloads

Technical data sheet

Technical data sheet - Over Fascia Ventilation System (OFVS)

Brochure/folder

Brochure - Roofing Products
