Roll Out Rafter Tray 6m x 400mm

Article number: 611210

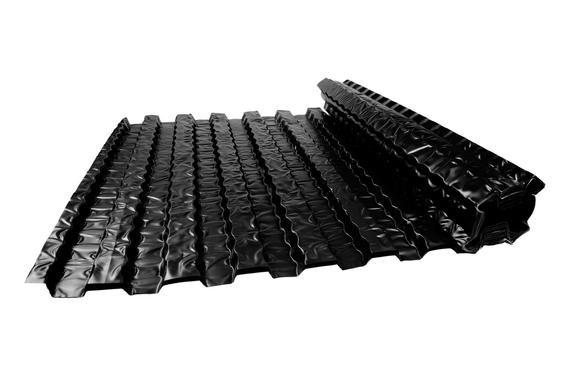

350000611200 - RB100 300mm
350000611200 - RB100 300mm

RB100 Roll Out Insulation Rafter Tray provides a minimum 25mm clear airway between the ceiling insulation and the roof underlay and is suitable for use in cold roofs, but not suitable for warm roof voids. It is used in conjunction with eaves ventilation products. Each Roll is 6m long and available in 300mm, 400mm, 600mm, 800mm and 900mm, 1000mm & 1200mm widths.

  • Universal rafter centre fitting capability
  • Provides a minimum 25mm clear airway
  • Available in 6m lengths and optional widths
  • Quick and easy to install with no special tools required
View all specifications

Specifications

General

Product Name
Roll Out Rafter Tray 6m x 400mm
GTIN
8713645972510
Type
Eaves

Technical

Colour
Black
Bird protection
Material
PVC

Dimensions

Length gross
6 m / 6000 mm
Height
30 mm
Width
400 mm
Net weight
0.94 kg

Logistical

Intrastat
39259080
Base unit packaging
Unpacked
Number per packaging
1
Gross weight
0.94 kg

Performance

CE string
-
