Ventilation Tile Hooded UB19 Double Roman (FRA) Terracotta

Article number: 290353

100152290353 - FRA UB19 Ubivent Terracotta
100152290353 - FRA UB19 Ubivent Terracotta

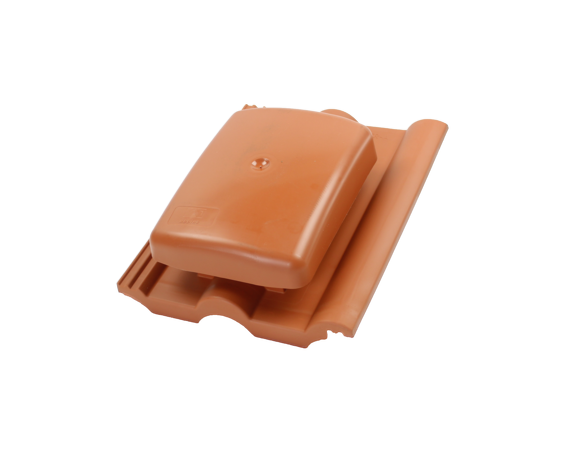

Ubbink's UB19 Double Romans vent is a streamlined hooded unit to suit: •Redland, 50 Double Roman •Marley, Double Roman •Sandtoft, Double Roman The UB19 unit has a free vent area of 22,000mm² and is available in 4 colours. For the UB19 vent to be converted into a terminal for soil/mechanical ventilation add a felt sleeve and adaptor 50544180

  • 22,000mm² large free vent area
  • Injection moulded construction
  • Suitable for most roof finishes
  • High or low level roof void ventilation
  • Mechanical extraction when used with the Felt Sleeve and Stepped Adaptor
  • Minimum pitch of 17.5˚
View all specifications

Specifications

General

Product Name
Ventilation Tile Hooded UB19 Double Roman (FRA) Terracotta
GTIN
8713645147017
Type
Roof Terminals

Technical

Colour
Terracotta
Material
PP

Dimensions

Net weight
1.03 kg

Logistical

Intrastat
39259080
Base unit packaging
Unpacked
Packaging / Trade length
700 mm
Packaging / Trade height
460 mm
Number per packaging
1
Gross weight
1.2 kg
Packaging / Trade width
390 mm

Performance

CE string
-
