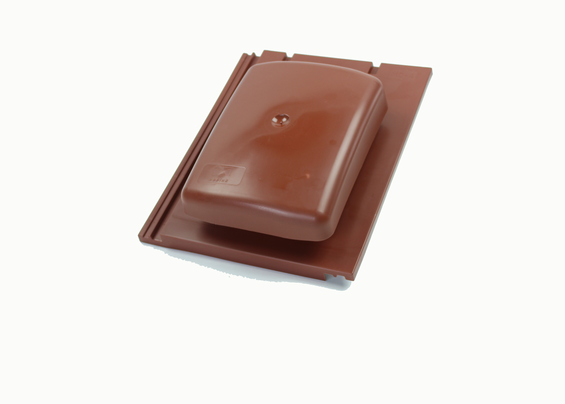

Ventilation Tile Hooded UB19 Modern (MD/MDA) Red

Article number: 290338

UB19 Modern MD/MDA ventilation tile PP red
UB19 Modern MD/MDA ventilation tile PP red

Ubbink's UB19 Modern vent is a streamlined hooded unit to suit: •Redland, Mini Stonewold •Marley, Modern •Sandtoft, Calderdale •Russell, Grampian The UB19 unit has a free vent area of 22,000mm² and is available in 3 colours. For the UB19 vent to be converted into a terminal for soil/mechanical ventilation please add a felt sleeve and adaptor 50544180

  • 22,000mm² large free vent area
  • Injection moulded construction
  • Suitable for most roof finishes
  • High or low level roof void ventilation
  • Mechanical extraction when used with the Felt Sleeve and Stepped Adaptor
  • Minimum pitch of 17.5˚
View all specifications

Specifications

General

Product Name
Ventilation Tile Hooded UB19 Modern (MD/MDA) Red
GTIN
8713645146812
Type
Roof Terminals

Technical

Colour
Red
Flashing material
PP
Material
PP

Dimensions

Net weight
0.93 kg

Logistical

Intrastat
39259080
Base unit packaging
Unpacked
Packaging / Trade length
700 mm
Packaging / Trade height
460 mm
Number per packaging
1
Gross weight
1.1 kg
Packaging / Trade width
390 mm

Performance

CE string
-
