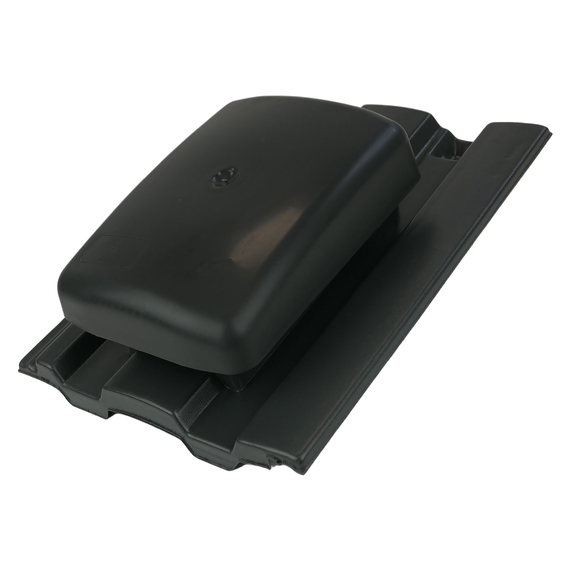

Ventilation Tile Hooded UB19 Renown (RS) Anthracite

Article number: 290810

100152290810 - UB19 RENOWN (RS)-ANTHRACITE- HOODED VENTILATION TILE-PP
100152290810 - UB19 RENOWN (RS)-ANTHRACITE- HOODED VENTILATION TILE-PP

Ubbink's UB19 Renown vent is a streamlined hooded unit to suit: •Redland, Renown The UB19 unit has a free vent area of 22,000mm² and is available in 2 colours. For the UB19 vent to be converted into a terminal for soil/mechanical ventilation add a felt sleeve and adaptor 50544180

  • 22,000mm² large free vent area
  • Injection moulded construction
  • Suitable for most roof finishes
  • High or low level roof void ventilation
  • Mechanical extraction when used with the Felt Sleeve and Stepped Adaptor
  • Minimum pitch of 17.5˚
View all specifications

Specifications

General

Product Name
Ventilation Tile Hooded UB19 Renown (RS) Anthracite
GTIN
8713645145822
Type
Roof Terminals

Technical

Colour
Anthracite
Material
PP

Dimensions

Net weight
0.65 kg

Logistical

Intrastat
39259080
Base unit packaging
Unpacked
Packaging / Trade length
700 mm
Packaging / Trade height
460 mm
Number per packaging
1
Gross weight
0.82 kg
Packaging / Trade width
390 mm

Performance

CE string
-
