Ventilation Tile Hooded Universal RVT200 Red/Red

Article number: 172069

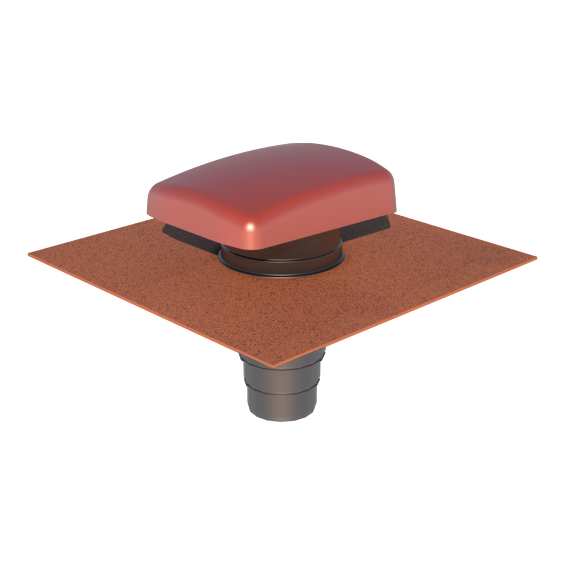

Ventilation Tile Hooded Universal + Adaptor Terracotta
Ventilation Tile Hooded Universal + Adaptor Terracotta

The UB16 is a universal roof vent for use in most tiled and slated pitched roofs without the need to identify the make or design of the tiles or slates.

  • Universal application, so can be used where a roof finish is not known or no longer available.
  • 18,750mm² large free vent area
  • Large diameter spigot allows direct ventilation into roof void
  • Integral mesh to stop the ingress of large insects and vermin.
View all specifications

Specifications

General

Product Name
Ventilation Tile Hooded Universal RVT200 Red/Red
GTIN
8713645171470
Type
Roof Terminals
Trade name
RVT 200

Technical

Comm. Dimension
160 mm
Material
Plastic
Flashing
Colour
Red
Type of tile
Universal
Flashing material
Ubiflex standard

Dimensions

Length gross
500 mm
Height
183 mm
Width
500 mm
Net weight
1.98 kg

Logistical

Intrastat
39259080
Base unit packaging
Box
Packaging / Trade length
557 mm
Packaging / Trade height
233 mm
Number per packaging
1
Gross weight
1.98 kg
Packaging / Trade width
257 mm

Performance

CE string
-
