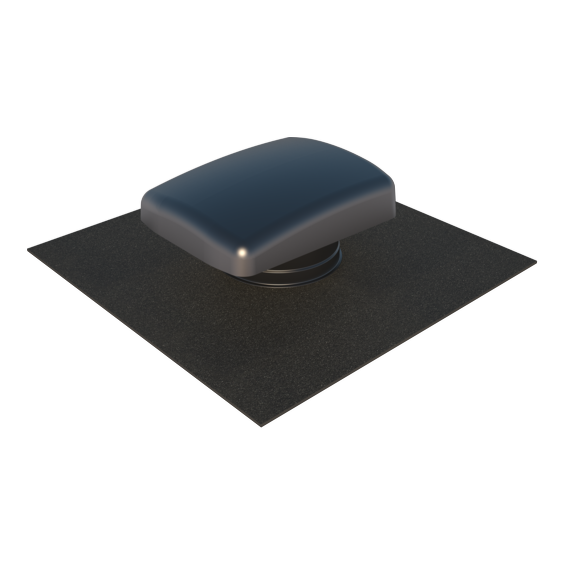

Ventilation Tile Hooded Universal UB16 Grey/Black

Article number: 172063

Ventilation Tile Hooded Universal Grey/Black
Ventilation Tile Hooded Universal Grey/Black

The UB16 is a universal roof vent for use in most tiled and slated pitched roofs without the need to identify the make or design of the tiles or slates.

  • Universal application, so can be used where a roof finish is not known or no longer available.
  • 18,7500mm² large free vent area
  • Large diameter spigot allows direct ventilation into roof void
  • Integral mesh to stop the ingress of large insects and vermin.
View all specifications

Specifications

General

Product Name
Ventilation Tile Hooded Universal UB16 Grey/Black
GTIN
8713645173429
Type
Roof Terminals

Technical

Comm. Dimension
160 mm
Type of tile
Universal
Colour
Grey
Flashing material
Ubiflex standard

Dimensions

Length gross
500 mm
Height
183 mm
Width
500 mm
Net weight
1.66 kg

Logistical

Intrastat
39259080
Base unit packaging
Box
Packaging / Trade length
550 mm
Packaging / Trade height
220 mm
Number per packaging
1
Gross weight
2 kg
Packaging / Trade width
250 mm

Performance

CE string
-
