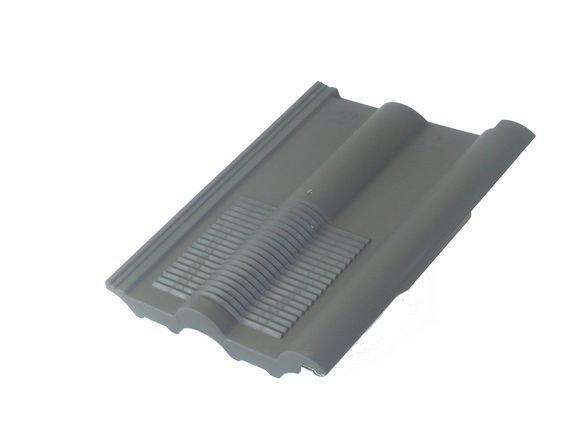

Ventilation Tile Inline UB62 Double Roman (FRA) Anthracite

Article number: 294794

100000294784 - FRA UB62 Inline Vent Anthracite
100000294784 - FRA UB62 Inline Vent Anthracite

Ubbink's UB62 Double Roman in-line vent suits: Redland, 50 Double Roman Marley, Double Roman Sandtoft, Double Roman UB62's offer a high performance whilst retaining the aesthetics of the roof design and is available in 4 colours. It is designed to provide ventilation of the roof space, either at high or low levels for roof pitches above 25° and may be used to supplement or replace other ventilation such as dry ridge, abutment or eaves systems. The UB62 has a free vent area of 15,000mm². For the UB62 vent to be converted into a terminal for soil/mechanical ventilation please add the stepped adaptor 544180

View all specifications

Specifications

General

Product Name
Ventilation Tile Inline UB62 Double Roman (FRA) Anthracite
Price (MSRP ex. VAT)
25.88 GBP
GTIN
8713645122236

Technical

Colour
Grey
Material
PP

Dimensions

Length gross
420 mm
Height
90 mm
Width
330 mm
Net weight
0.87 kg

Logistical

Intrastat
39259080
Base unit packaging
Unpacked
Packaging / Trade length
700 mm
Number per packaging
8
Gross weight
1 kg
