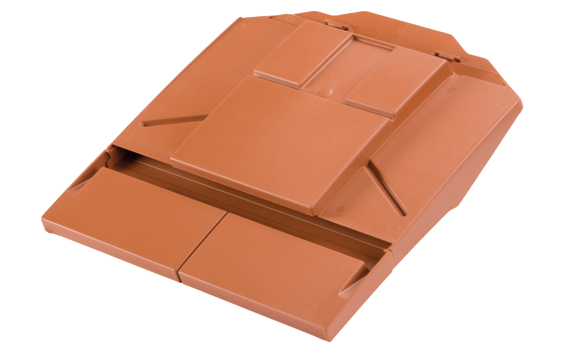

Ventilation Tile Inline UB8 Plain Tile Terracotta

Article number: 294522

Ventilation Tile Inline UB8 Plain Tile Terracotta
Ventilation Tile Inline UB8 Plain Tile Terracotta

Ubbink's UB8 vent is an in-line roof ventilating tile for use in small plain non-interlocking tiles. Designed specifically to merge into the surface of plain tiles without disturbing the roofline. The design features a slotted insect inhibitor to keep out large insects and vermin. UB8 plain tile vents are suitable for both high and low level ventilation and can be installed without batten or tile trimming.

  • No batten cutting necessary
  • Moulded grill directs ventilation to roof void
  • 110mm diameter adaptor available for connection to soil & vent/mechanical extraction
  • Prevents ingress of birds/vermin and large insects
View all specifications

Specifications

General

Product Name
Ventilation Tile Inline UB8 Plain Tile Terracotta
GTIN
8713645180472
Type
Roof Terminals

Technical

Colour
Terracotta
Material
PP

Dimensions

Net weight
1.45 kg

Logistical

Intrastat
39259080
Base unit packaging
Unpacked
Packaging / Trade length
700 mm
Packaging / Trade height
460 mm
Number per packaging
1
Gross weight
1.56 kg
Packaging / Trade width
390 mm

Performance

CE string
-
