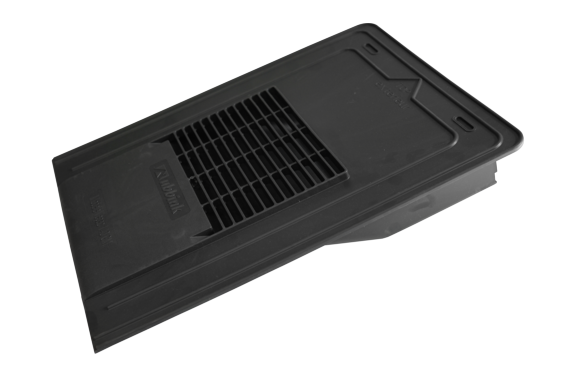

Ventilation Tile Inline Vepac Slates UB11

Article number: 294620

294 600-Chatière VEPAC_140 PM_ardoises
294 600-Chatière VEPAC_140 PM_ardoises

Ubbink's UB11 (380mm x 285mm) is an in-line unit with a multipurpose base which will provide inconspicuous ventilation in natural and manmade slate roofs. Can be installed with either 500mm x 250mm or 600mm x 300mm slate vents. Ubbink's Vepac (382mm x 398mm) is an in-line unit which should not need trimming when installing with 600mm x 300mm slates. Vepac vents are suitable for high or low level ventilation in roofs of 25° and over. Each vent has a slotted inhibitor to keep out large insects and vermin and provides a free vent area of 10,750mm². For the UB11 vent to be converted into a terminal add a vepac connector and lower pipe 100140294605

View all specifications

Specifications

General

Product Name
Ventilation Tile Inline Vepac Slates UB11
GTIN
8713645052229
Type
Roof Terminals
Trade name
Vepac

Technical

Colour
Grey
Flashing
false
Material
PP

Dimensions

Length gross
288 mm
Height
64 mm
Width
384 mm
Net weight
0.54 kg

Logistical

Intrastat
39259080
Base unit packaging
Unpacked
Packaging / Trade length
400 mm
Packaging / Trade height
255 mm
Number per packaging
1
Gross weight
0.6 kg
Packaging / Trade width
290 mm
