FlatRoofVent Roof Terminal 110 Black

Article number: 169931

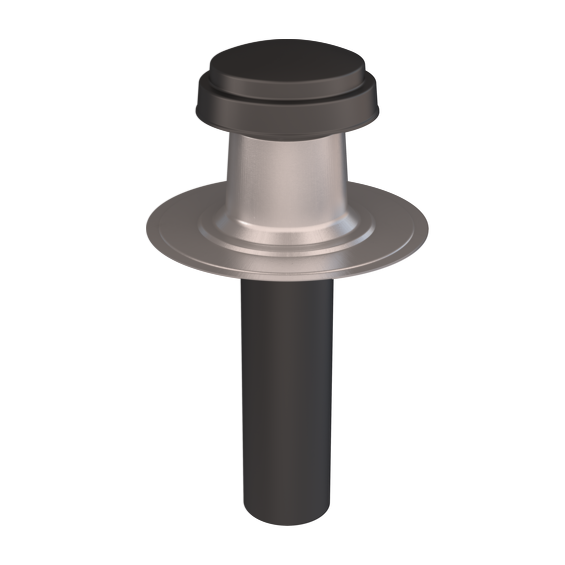

0169941-FlatRoofVent-110R
FlatRoofVent-Dak
ventilatie op dak met bitumen
0169941-FlatRoofVent-110R
FlatRoofVent-Dak
ventilatie op dak met bitumen

The Ubbink OFT range vents are capped stacks for use in the below roof types and suitable for roof pitches from 0 – 10 degrees. There are five flange types for different roof covering that suit the OFT1 range ranging from 110mm diameter to 166mm. With the following roof finishes: • Asphalt • Built up felt • EPDM • Bitumen • GRP roofs

  • Large free vent area/Low Pa resistance
  • Made of high-quality PP
  • Applicable for all weather conditions
  • High ventilation capacity
  • No rain ingress
  • Elegant design
  • For new build and renovation purposes
View all specifications

Specifications

General

Product Name
FlatRoofVent Roof Terminal 110 Black
GTIN
8713645219424
Type
Roof Terminals
Trade name
FlatRoofVent

Technical

Comm. Dimension
110 mm
Material
Plastic
Colour
Black

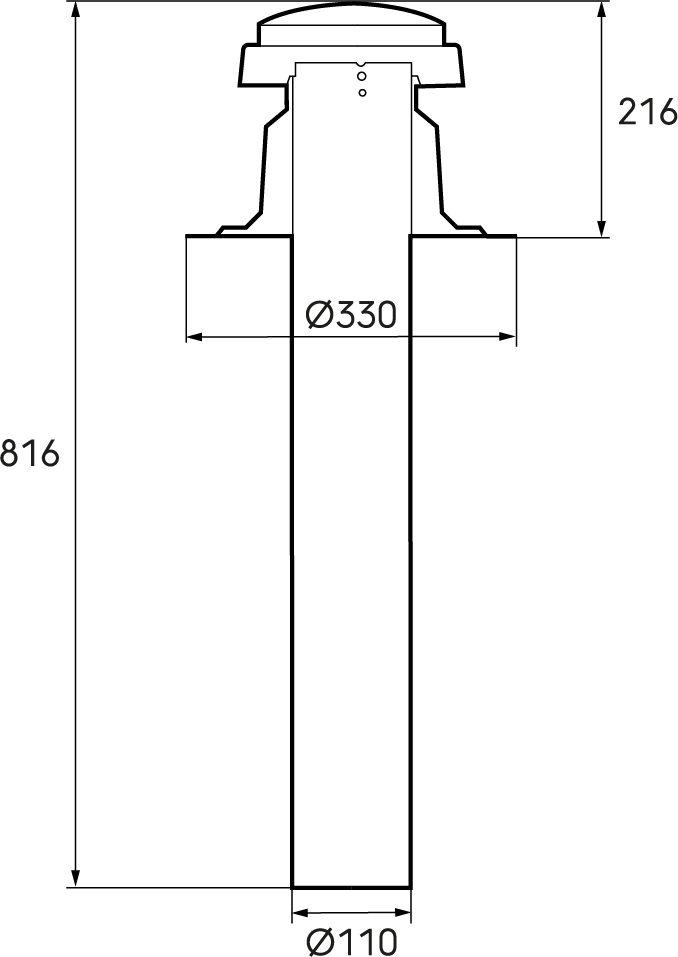

Dimensions

Length gross
330 mm
Height
817 mm
Width
330 mm
Net weight
1.77 kg

Logistical

Intrastat
39259080
Base unit packaging
Box
Packaging / Trade length
834 mm
Packaging / Trade height
330 mm
Number per packaging
1
Gross weight
1.77 kg
Packaging / Trade width
330 mm

Performance

CE string
-
