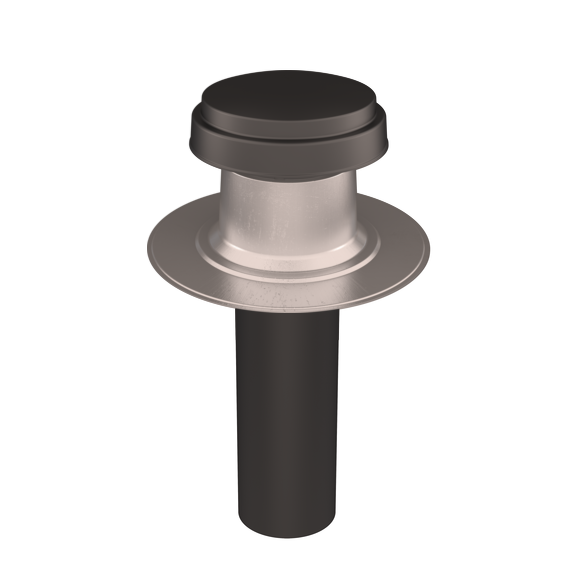

FlatRoofVent Roof Terminal 160 Black

Article number: 169933

169943-FlatRoofVent-160R
FlatRoofVent-Dak
ventilatie op dak met bitumen
169943-FlatRoofVent-160R
FlatRoofVent-Dak
ventilatie op dak met bitumen

The Ubbink OFT range vents are capped stacks for use in the below roof types and suitable for roof pitches from 0 – 10 degrees. There are five flange types for different roof covering that suit the OFT1 range ranging from 110mm diameter to 166mm. With the following roof finishes: • Asphalt • Built up felt • EPDM • Bitumen • GRP roofs

  • Large free vent area/Low Pa resistance
  • Made of high-quality PP
  • Applicable for all weather conditions
  • High ventilation capacity
  • No rain ingress
  • Elegant design
  • For new build and renovation purposes
View all specifications

Specifications

General

Product Name
FlatRoofVent Roof Terminal 160 Black
GTIN
8713645219462
Type
Roof Terminals
Trade name
FlatRoofVent

Technical

Comm. Dimension
160 mm
Material
Plastic
Colour
Black
Flashing material
Aluminium

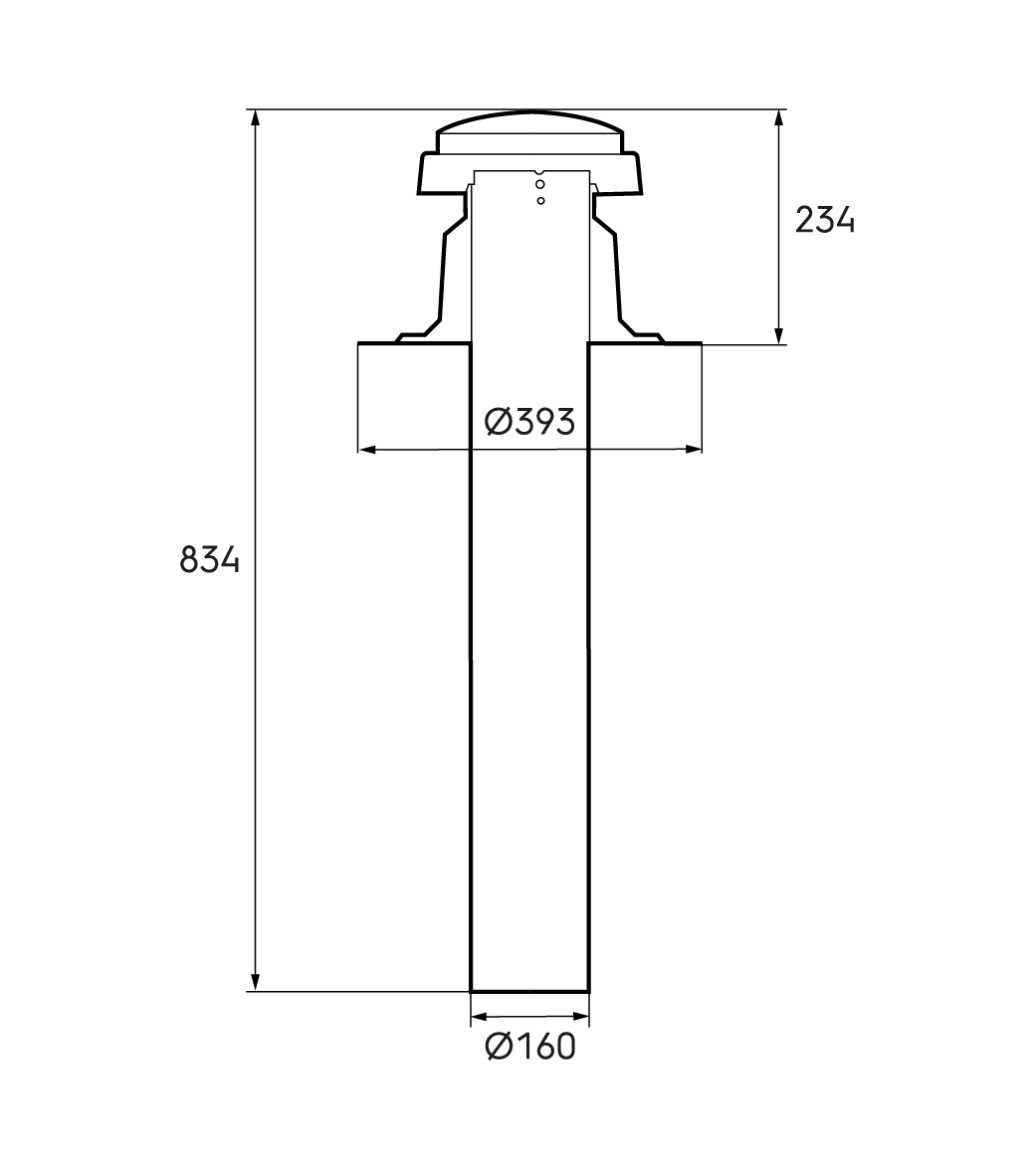

Dimensions

Length gross
393 mm
Height
834 mm
Width
393 mm
Net weight
2.47 kg

Logistical

Intrastat
39259080
Base unit packaging
Box
Packaging / Trade length
834 mm
Packaging / Trade height
393 mm
Number per packaging
1
Gross weight
2.47 kg
Packaging / Trade width
393 mm

Performance

CE string
-
