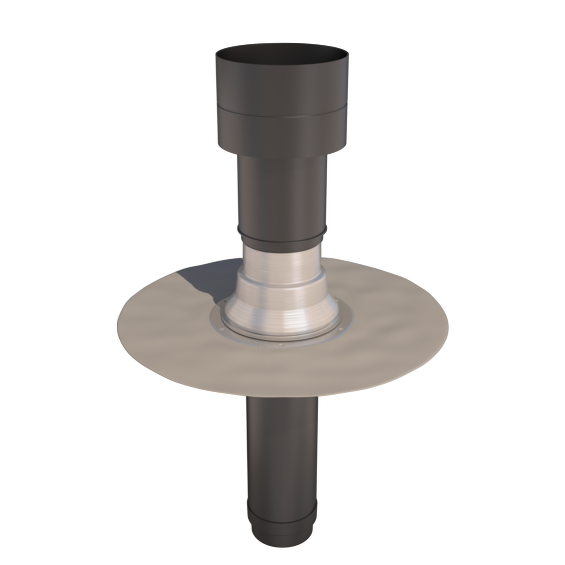

Roof Terminal Insulated OFT-5 150 PVC Flat Roof

Article number: 147265

185677_Ventub 125-flat flashing - PVC - L150
185677_Ventub 125-flat flashing - PVC - L150

The OFT 5 insulated terminal range is suitable for use with heat recovery and high volume extract fans and for both mechanical and natural (passive) ventilation installations. It has a higher insulation value above the roof space which reduces the risk of condensation. The OFT 5 internal spigot is always 166mm (excluding OFT 5 180 mm) with additional reducers provided. With the following roof finishes: • Asphalt • Built up felt • EPDM • Bitumen • GRP roofs

  • Large free vent area/Low Pa resistance
  • Made of high-quality PP
  • Applicable for all weather conditions
  • High ventilation capacity
  • Fully insulated to the cowl
  • Elegant design
  • For new build and renovation purposes
View all specifications

Specifications

General

Product Name
Roof Terminal Insulated OFT-5 150 PVC Flat Roof
GTIN
8713645223582
Type
Roof Terminals
Trade name
Ventub

Technical

Comm. Dimension
150 mm
Colour
Black

Dimensions

Length gross
1149 mm
Height
490 mm
Width
490 mm
Net weight
2.96 kg

Logistical

Intrastat
39259080
Base unit packaging
Box
Number per packaging
1
Gross weight
2.9 kg
