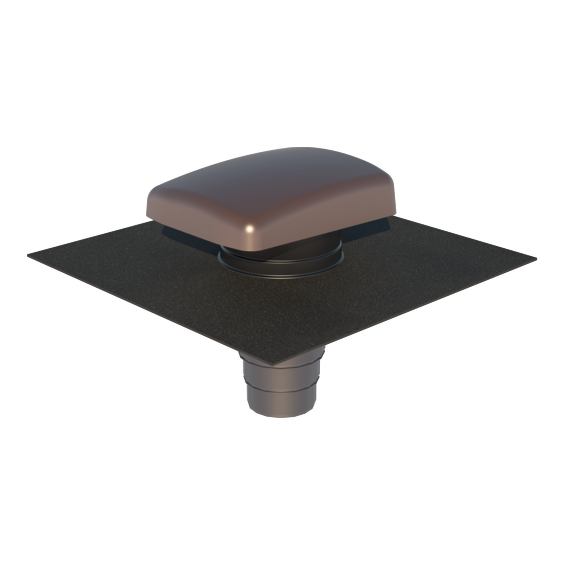

Ventilation Tile Hooded Universal UB41 + Adaptor Sepia

Article number: 30172066

Ventilation Tile Hooded Universal UB41 + Adaptor Sepia
Ventilation Tile Hooded Universal UB41 + Adaptor Sepia

Ubbink's universal service terminal is suitable in most tiled and slated pitched roofs without the need to identify the make or design of the tiles or slates. The unit may also be used to terminate soil & vent pipes where an external pressure test is not required.

  • 18,750mm² large free vent area
  • Large diameter spigot c/w Adaptor to accept ducting of 100/110/125/150/160mm
View all specifications

Specifications

General

Product Name
Ventilation Tile Hooded Universal UB41 + Adaptor Sepia
GTIN
8713645195940
Type
Roof Terminals

Technical

Comm. Dimension
100 mm / 110 mm / 125 mm / 150 mm / 160 mm
Material
PP
Colour
Sepia
Flashing material
Ubiflex standard

Dimensions

Length gross
500 mm
Net weight
1.66 kg

Logistical

Intrastat
39259080
Base unit packaging
Box
Packaging / Trade length
550 mm
Packaging / Trade height
220 mm
Number per packaging
1
Gross weight
2 kg
Packaging / Trade width
250 mm

Performance

CE string
-
