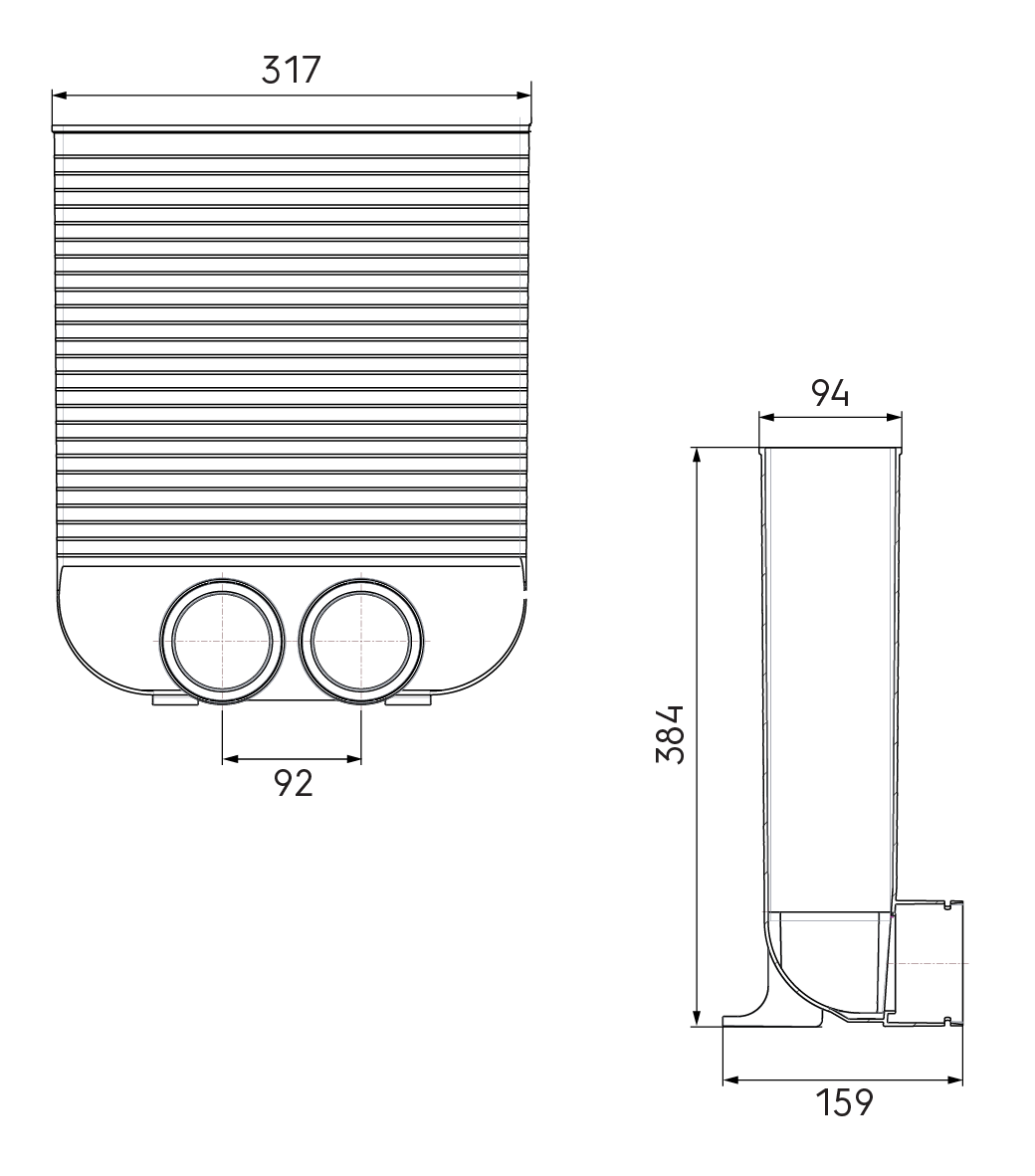

Dimensional drawing – AE34C Floor Grille Adaptor

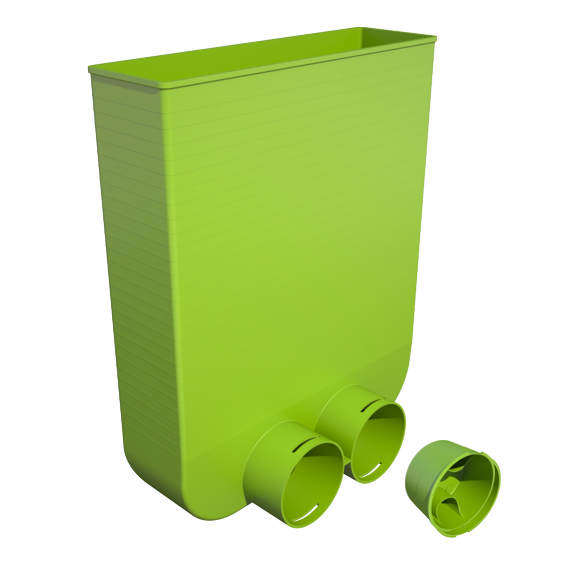

Air Excellent AE34C Floor Grille Adaptor

Article number: 188397

New

188.397-AE34c-FloorGrillAdapter
Dimensional drawing – AE34C Floor Grille Adaptor
188.397-AE34c-FloorGrillAdapter
Dimensional drawing – AE34C Floor Grille Adaptor

An AE34C duct accessory. Use a AE34C seal rings and a AE34C click rings to connect a AE34C duct to it.

  • Modular manifolds, which can be used with all 6 duct types
  • Semi-rigid plastic ducts on a roll and airtight mechanical connections, which are extremely easy to install
  • Low system pressure loss due to radial design
  • Airtight (class D/ATC 2 up +/- 2000 Pa) thanks to mechanical connections, which minimises fan energy use and sound production
  • TÜV SÜD and ISEGA tested and certified, REACH compliant
View all specifications

Detailed information

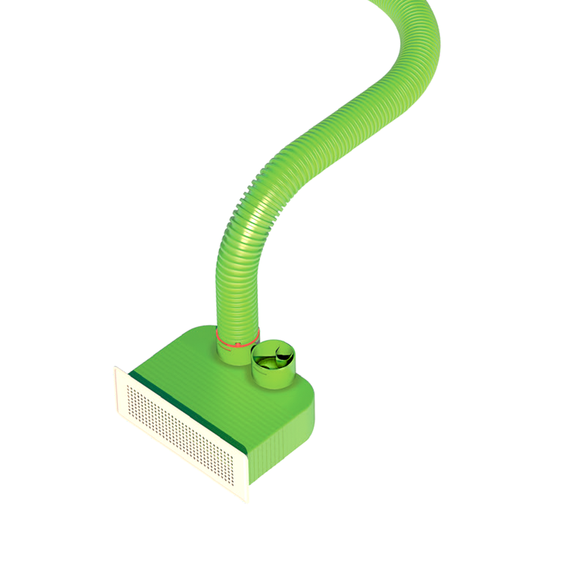

This item can be used to terminate a duct run inside a habitable room. An Air Excellent floor grille must be inserted into it.

Specifications

General

Product Name
Air Excellent AE34C Floor Grille Adaptor
GTIN
8713645212777
Trade name
Air Excellent
Type
Adaptors
Accessories in package
Cover caps

Technical

Comm. Dimension
75 mm
Material
PP
Number of connections
2
Antimicrobial
true
Colour
Green
Shape
Circular
Anti static
true
Airflow direction
Supply / extract

Dimensions

Length gross
159 mm
Height
383 mm
Width
317 mm
Net weight
0.793 kg

Logistical

Intrastat
39259080
Base unit packaging
Unpacked
Packaging / Trade length
159 mm
Packaging / Trade height
383 mm
Number per packaging
1
Gross weight
0.793 kg
Packaging / Trade width
317 mm

Performance

Temperature resistance (min.)
-20 °C
Temperature resistance (max.)
60 °C
