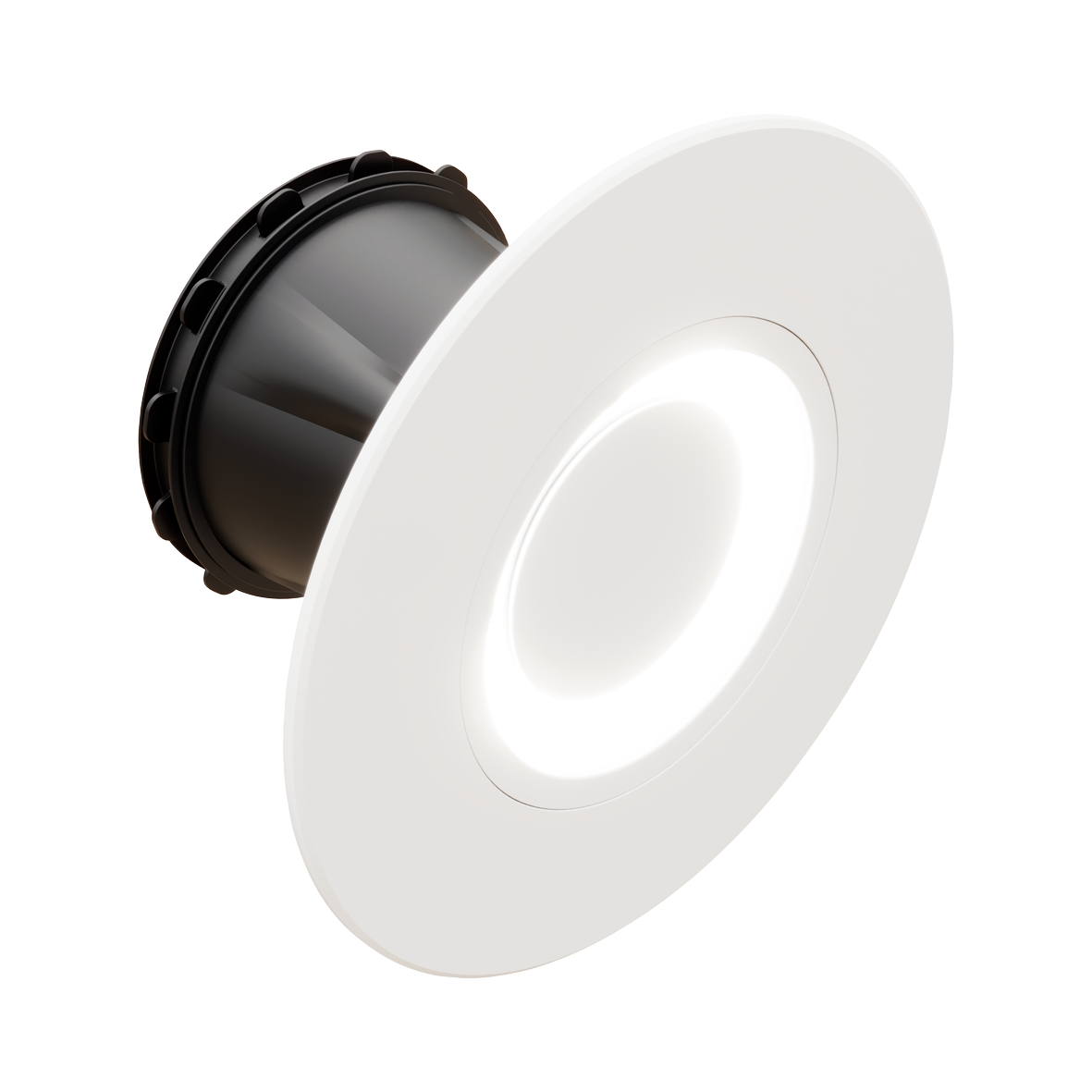

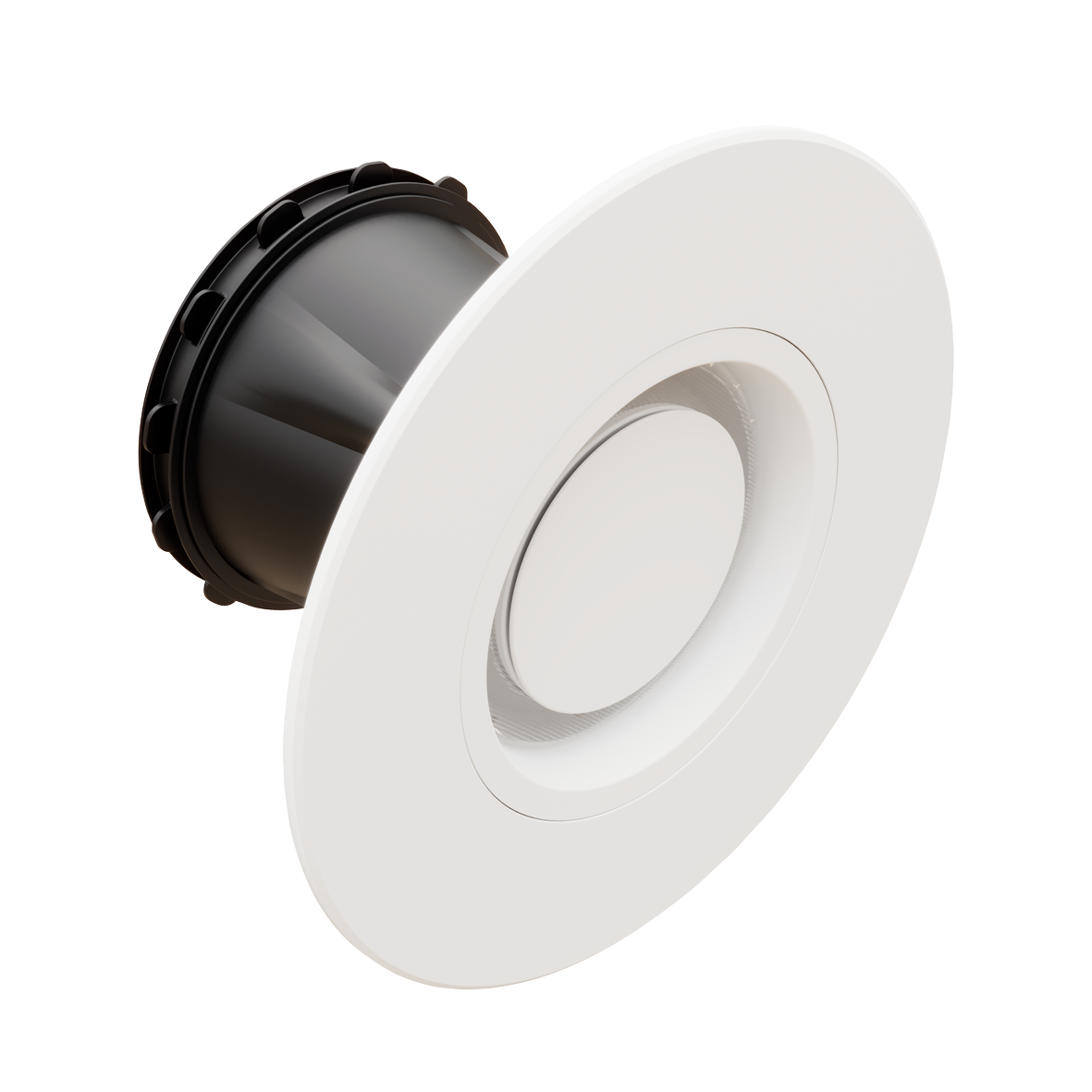

Haelix Stella valve with led light 125mm white

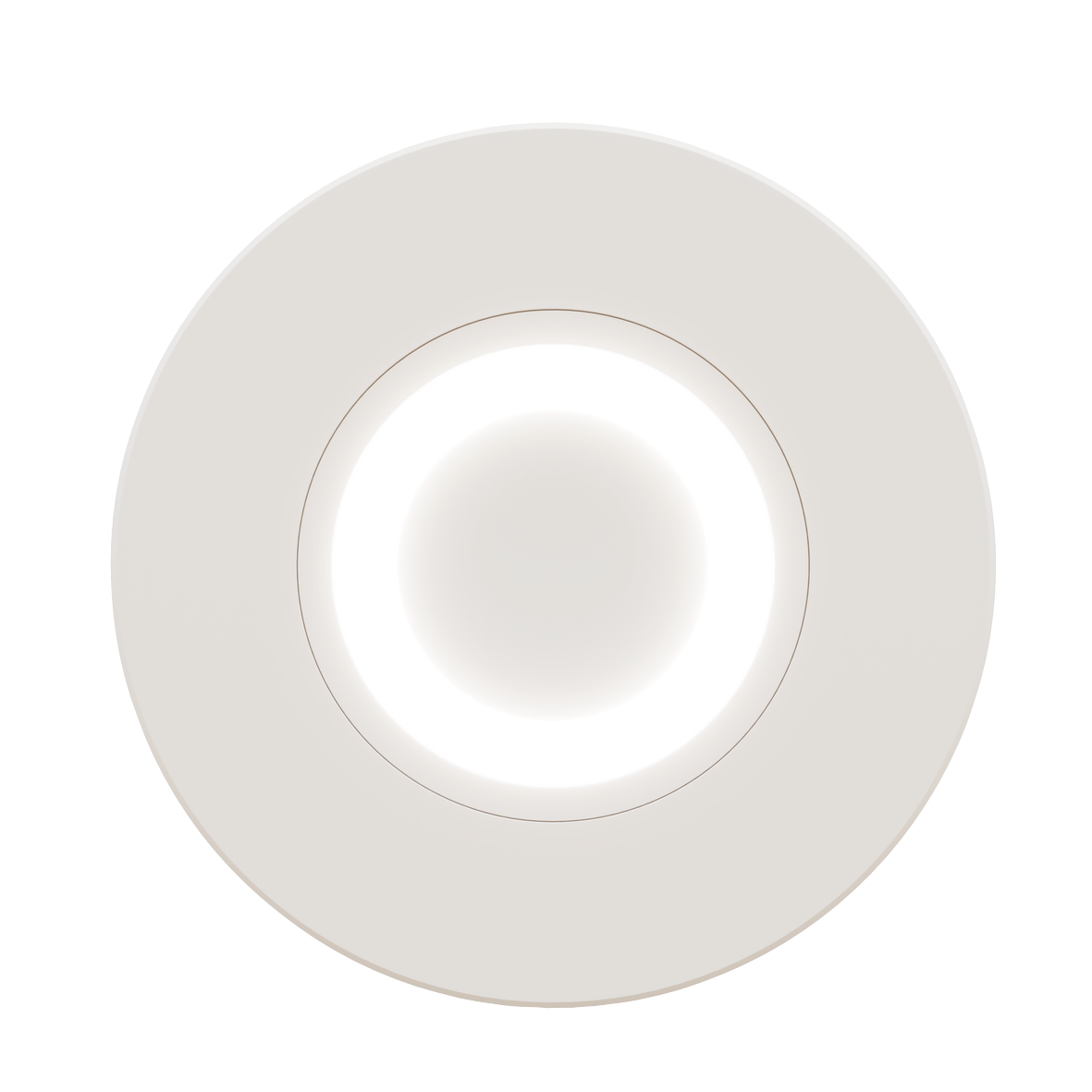

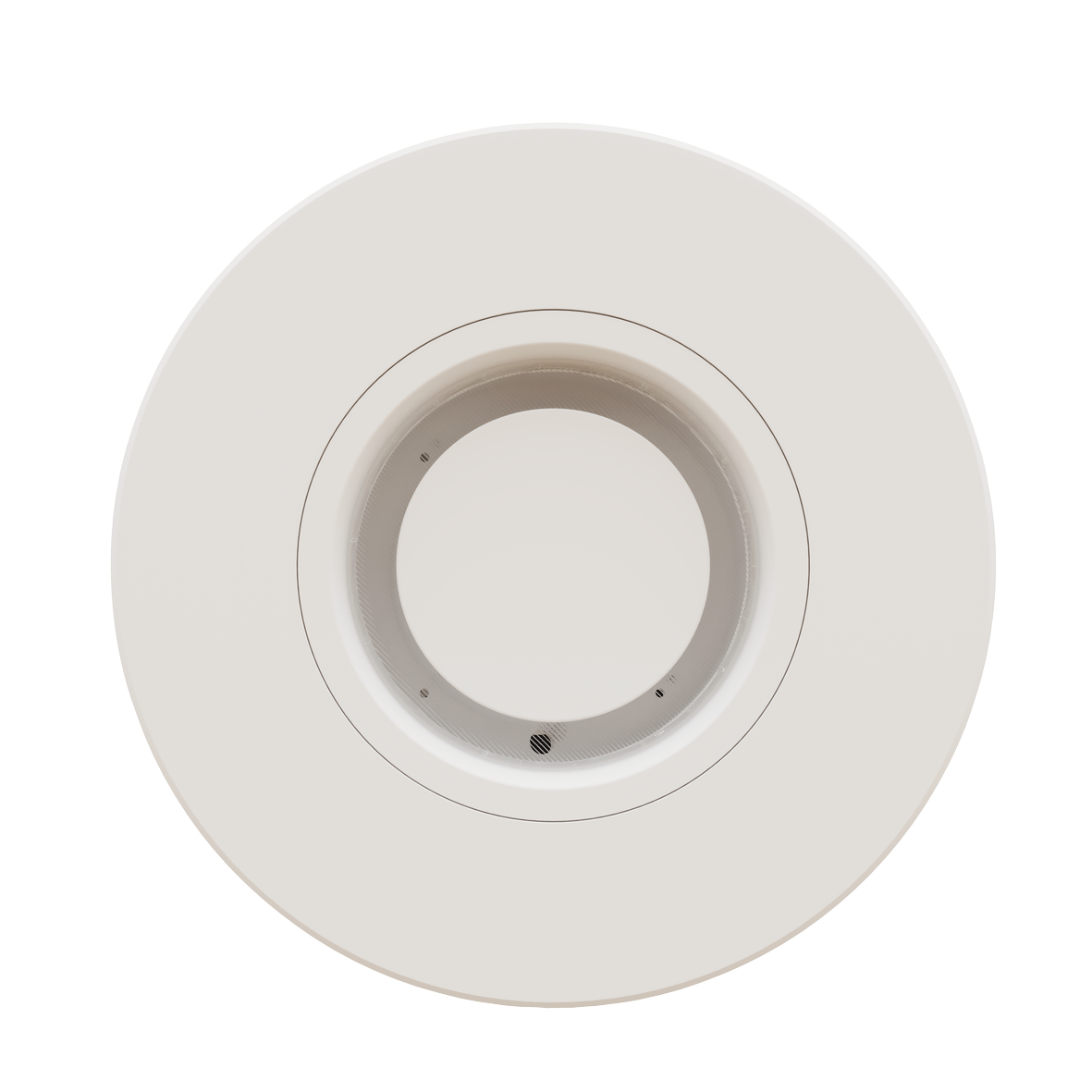

Haelix Stella valve 125mm white

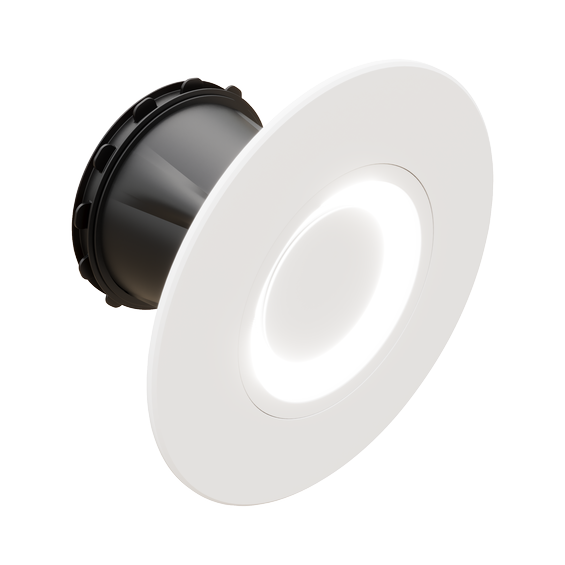

Haelix Stella valve with led light 125mm white

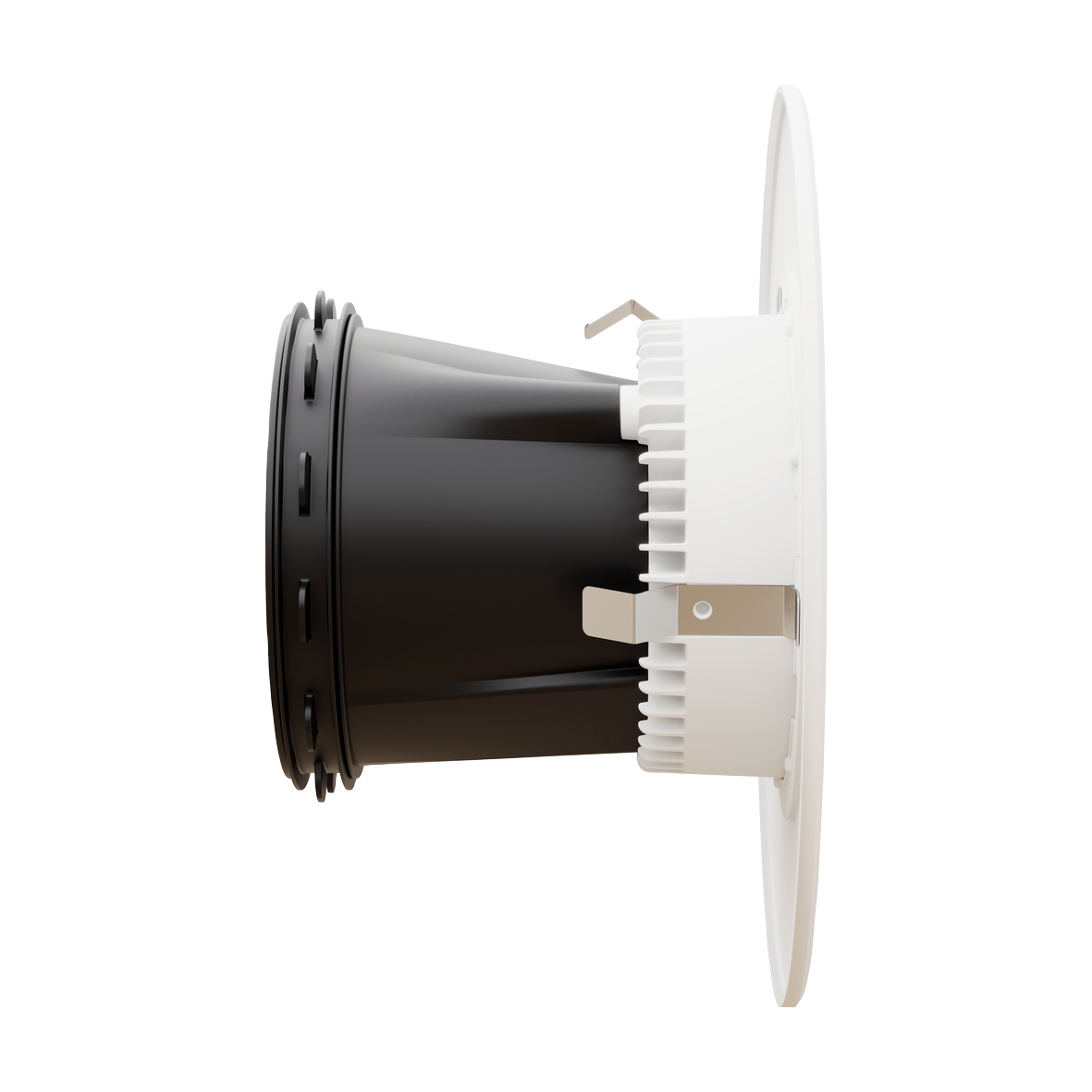

Haelix Stella valve 125mm white
Haelix Stella valve 125mm white

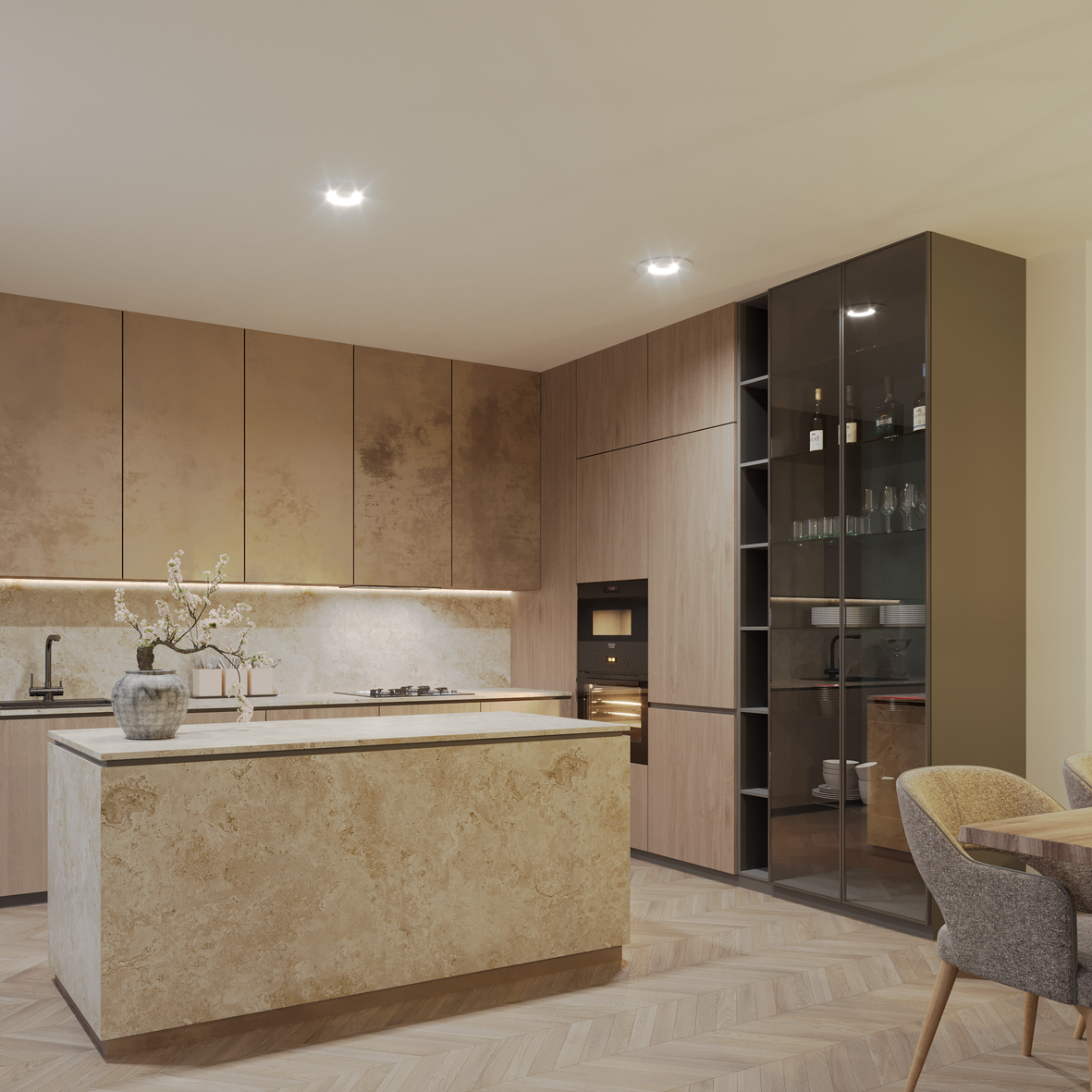

Haelix Stella valve with led light 125mm white in kitchen

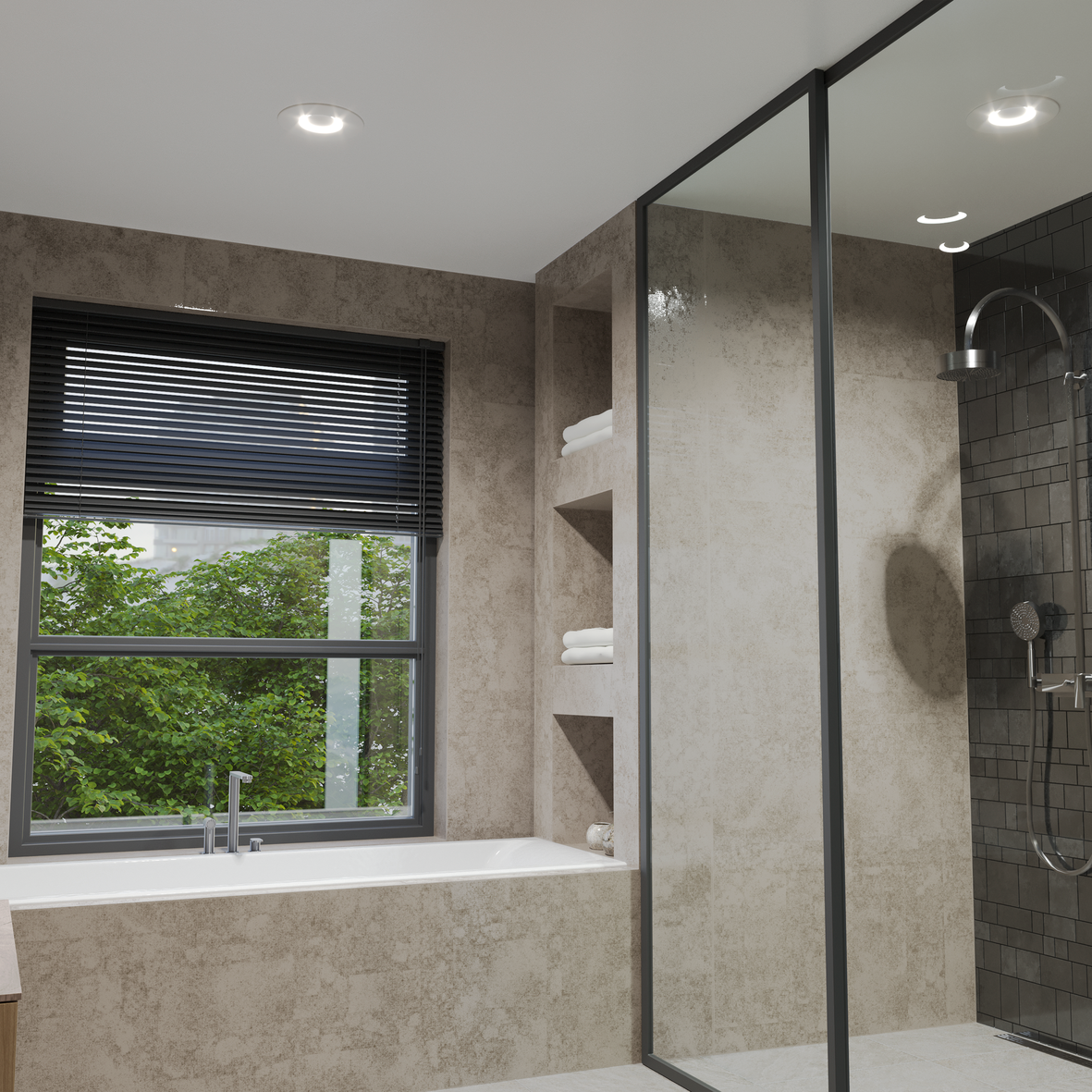

Haelix Stella valve with led light 125mm white in bathroom

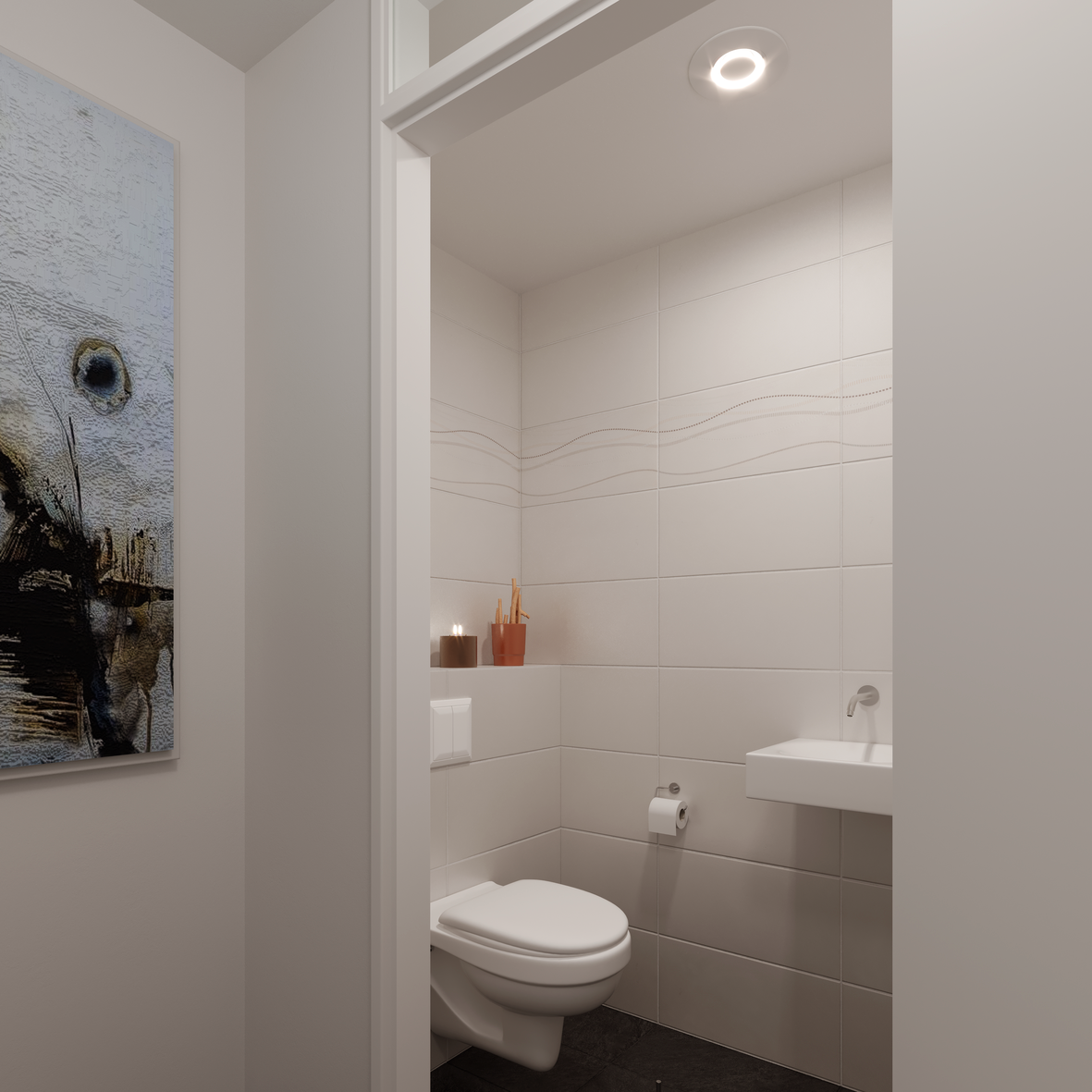

Haelix Stella valve with led light 125mm white in toilet

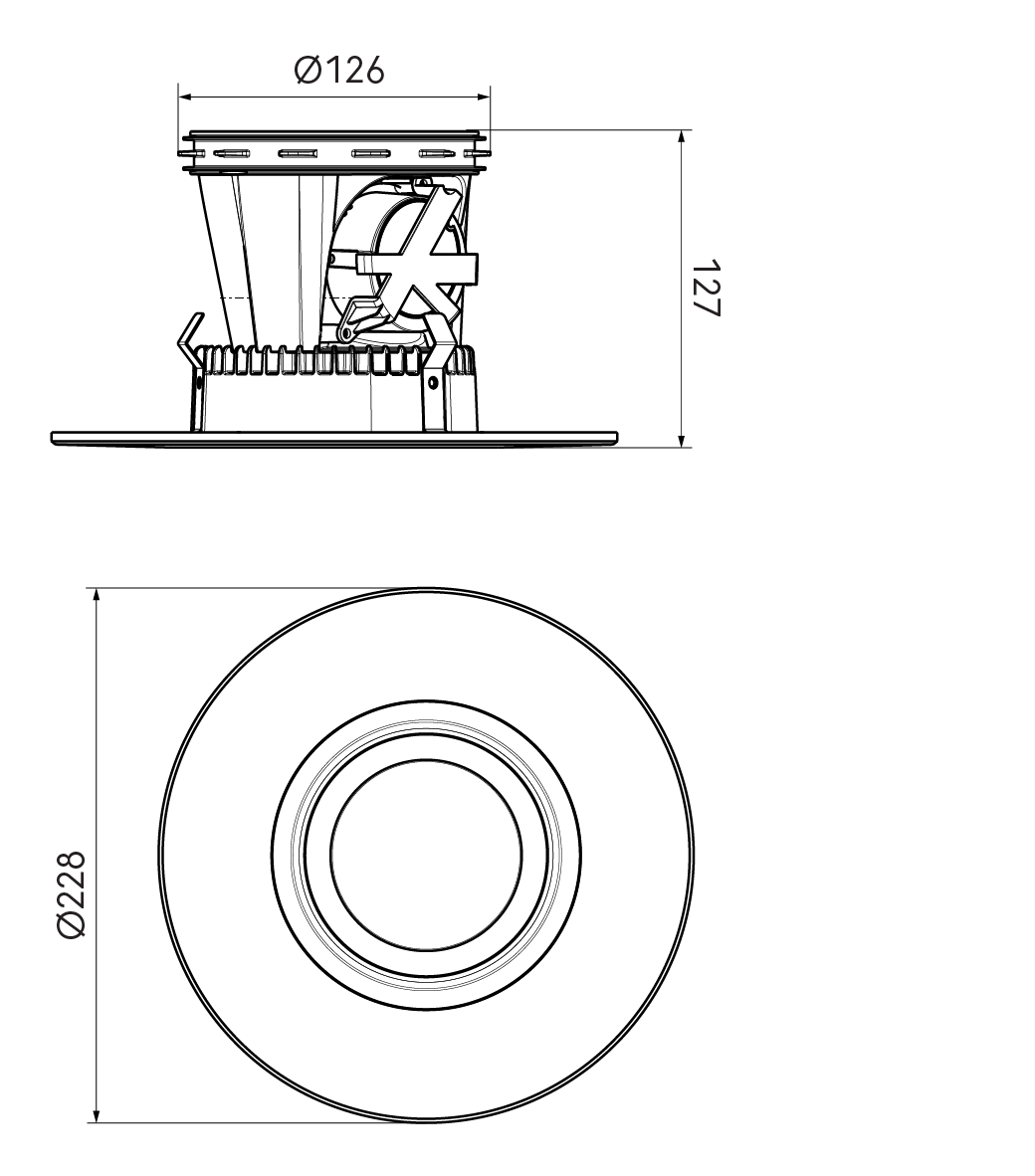

Dimensional drawing - Haelix Stella valve 125mm white
Haelix Stella valve with led light 125mm white
Haelix Stella valve 125mm white
Haelix Stella valve with led light 125mm white
Haelix Stella valve 125mm white
Haelix Stella valve 125mm white
Haelix Stella valve with led light 125mm white in kitchen
Haelix Stella valve with led light 125mm white in bathroom
Haelix Stella valve with led light 125mm white in toilet
Dimensional drawing - Haelix Stella valve 125mm white

The Haelix Stella Retrofit valve is the perfect choice for renovation work. With its integrated LED lighting, it combines air supply, extract and illumination in one easy-to-install solution. Designed to fit existing 125 mm valve adapters without the need for additional modifications, it ensures a quick and efficient upgrade. Paired with the Air Excellent system which provides optimal airflow control, it improves both function and aesthetics in any space.

  • Combines ventilation and LED lighting in a single valve.
  • Fits into any 125 mm valve adapter, no tools or additional adapter needed.
  • Designed for low sound levels, ensuring discreet performance.
  • Features a dirt deposit prevention flange.
  • A sleek, low-profile look that blends seamlessly into any ceiling.
View all specifications

Specifications

General

Product Name
Haelix Stella Retrofit Valve with LED light
Trade name
Haelix
GTIN
8713645246635

Technical

Colour
White
Shape
Circular
Colour indication
Ral9016
Airflow direction
Supply / extract

Dimensions

Length gross
228 mm
Height
127 mm
Width
228 mm

Logistical

Intrastat
39259080
Packaging / Trade width
256 mm
Packaging / Trade length
256 mm
Packaging / Trade height
146 mm

Performance

CE string
-
Supply capacity
50 m³/h
Temperature resistance (max.)
40 °C
Extract capacity
50 m³/h
Temperature resistance (min.)
5 °C
