Aerfoam 180-180-125 T-piece

Article number: 188236

0188236-T-STUK 180-125 90° EPE
Aerfoam insulated ductwork system
Aerfoam insulated ductwork system, view from below

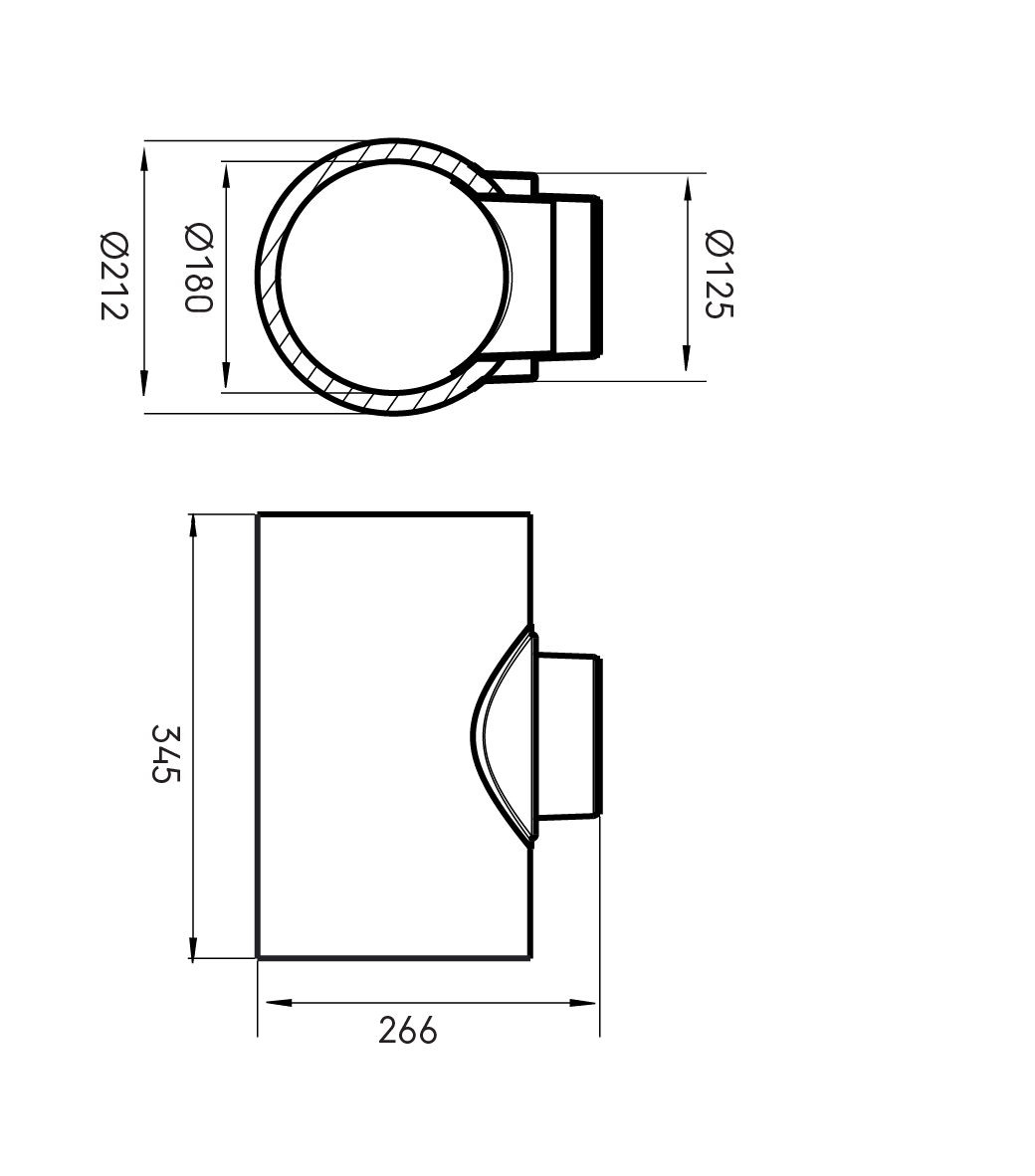

Dimensional Drawing - Aerfoam T-piece  180-180-125
0188236-T-STUK 180-125 90° EPE
Aerfoam insulated ductwork system
Aerfoam insulated ductwork system, view from below
Dimensional Drawing - Aerfoam T-piece  180-180-125

The Aerfoam 180-125 mm T-Piece allows branching in the Aerfoam system. Made of expanded polyethylene (EPE) duct, which minimises the risk of condensation and energy loss. It is very light and extremely easy and safe to install. All Aerfoam parts connect to each other using strong, airtight mechanical connections. They can also be securely mounted to walls or ceilings using brackets. Aerfoam is ideal for both central mechanical ventilation and domestic hot water heat pump systems.

  • Insulated to minimise the risk of condensation and energy loss.
  • Easy mechanical connection and mounting.
  • Lightweight and easy to cut, ensuring quick installation.
  • Impact resistant.
View all specifications

Specifications

General

Product Name
Aerfoam 180-180-125 T-piece
GTIN
8713645118864
Type
T-Piece
Trade name
Aerfoam

Technical

Comm. Dimension
180 mm
Shape
Circular
Colour
Grey
Insulation thickness
16 mm

Dimensions

Length gross
345 mm
Height
266 mm
Width
212 mm
Net weight
0.18 kg

Logistical

Intrastat
39259080
Base unit packaging
Box
Packaging / Trade length
408 mm
Packaging / Trade height
306 mm
Number per packaging
1
Gross weight
0.54 kg
Packaging / Trade width
263 mm

Performance

CE string
-
