Aerfoam 180 Y-Piece

Article number: 188245

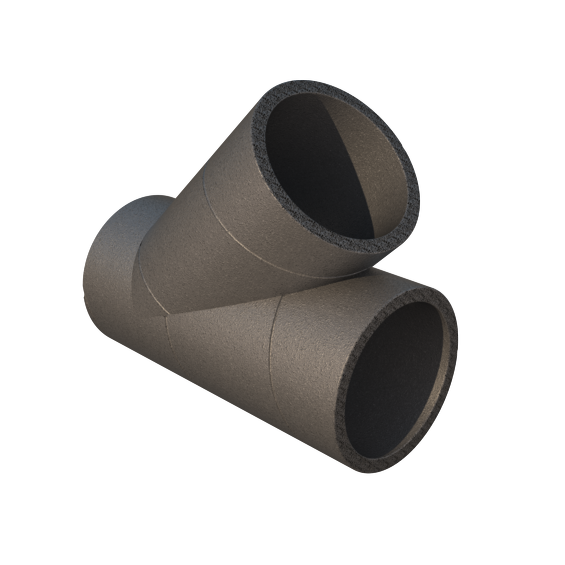

Aerfoam-Y-piece
Aerfoam insulated ductwork system
Aerfoam insulated ductwork system, view from below

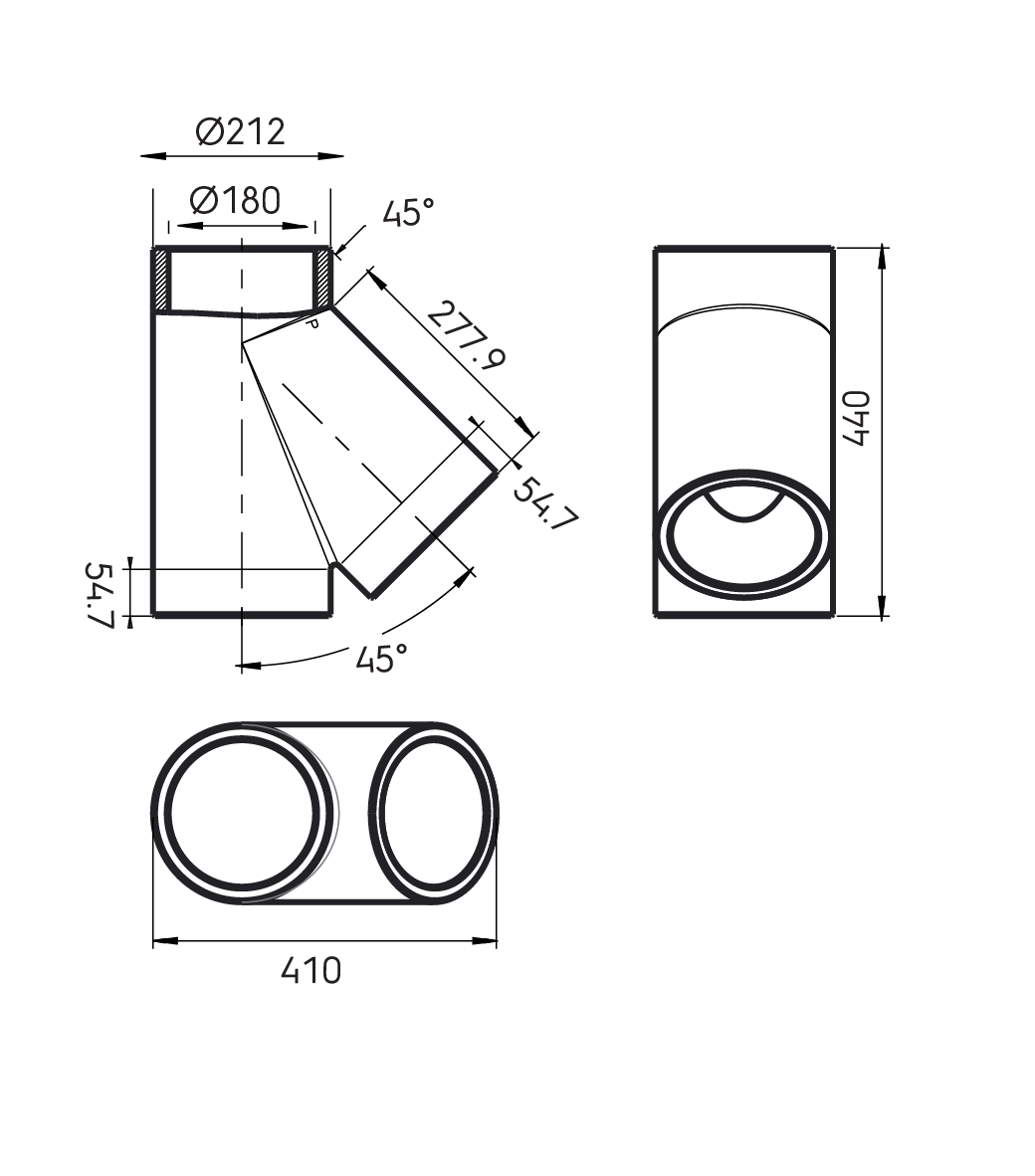

Dimensional Drawing - Aerfoam Y-Piece 180mm
Aerfoam-Y-piece
Aerfoam insulated ductwork system
Aerfoam insulated ductwork system, view from below
Dimensional Drawing - Aerfoam Y-Piece 180mm

The Aerfoam 180 mm Y-Piece allows branching in the Aerfoam system. Made of expanded polyethylene (EPE) duct, which minimises the risk of condensation and energy loss. It is very light and extremely easy and safe to install. All Aerfoam parts connect to each other using strong, airtight mechanical connections. They can also be securely mounted to walls or ceilings using brackets. Aerfoam is ideal for both central mechanical ventilation and domestic hot water heat pump systems.

  • Insulated to minimise the risk of condensation and energy loss.
  • Easy mechanical connection and mounting.
  • Lightweight and easy to cut, ensuring quick installation.
  • Impact resistant.
View all specifications

Specifications

General

Product Name
Aerfoam 180 Y-Piece
GTIN
8713645118710
Type
Y-Piece
Trade name
Aerfoam

Technical

Comm. Dimension
180 mm
Shape
Circular
Colour
Grey
Insulation thickness
16 mm

Dimensions

Length gross
440 mm
Height
410 mm
Width
212 mm
Net weight
0.38 kg

Logistical

Intrastat
39259080
Base unit packaging
Box
Packaging / Trade length
421 mm
Packaging / Trade height
450 mm
Number per packaging
1
Gross weight
0.58 kg
Packaging / Trade width
215 mm

Performance

CE string
-
