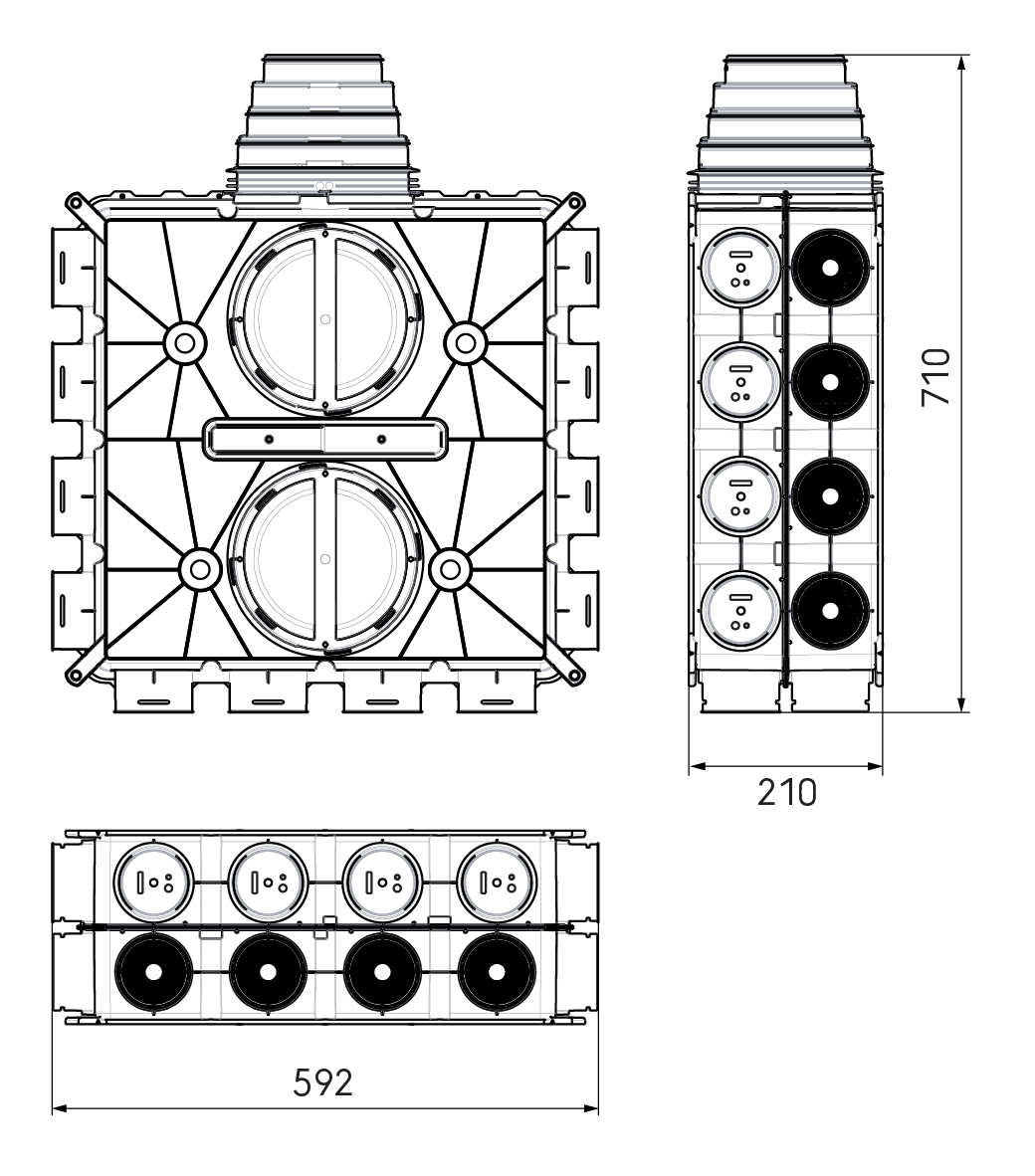

Dimensional drawing – DBOX 824

Air Excellent distribution box DB824 125-200 24 connections

Article number: 188952

Air Excellent DB824 distribution box PP grey
Air Excellent DB824 distribution box PP grey
Air Excellent DB824 distribution box PP grey
Air Excellent 800 serie distribution box PP grey
Air Excellent DB824 distribution box PP grey
Air Excellent DB824 distribution box PP grey
Dimensional drawing – DBOX 824
Air Excellent DB824 distribution box PP grey
Air Excellent DB824 distribution box PP grey
Air Excellent DB824 distribution box PP grey
Air Excellent 800 serie distribution box PP grey
Air Excellent DB824 distribution box PP grey
Air Excellent DB824 distribution box PP grey
Dimensional drawing – DBOX 824

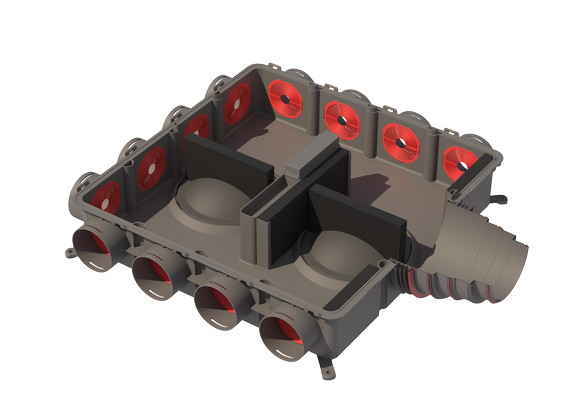

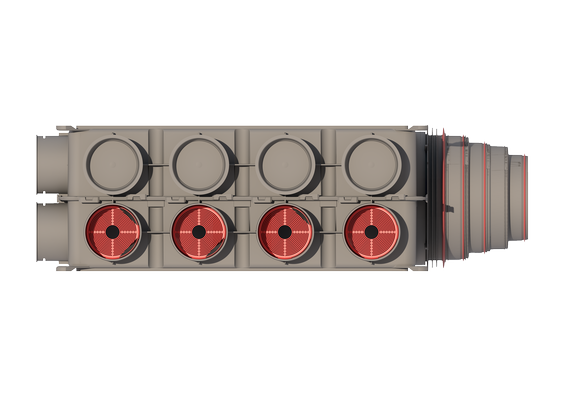

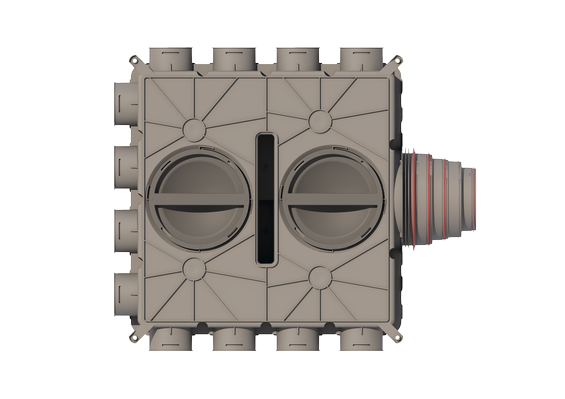

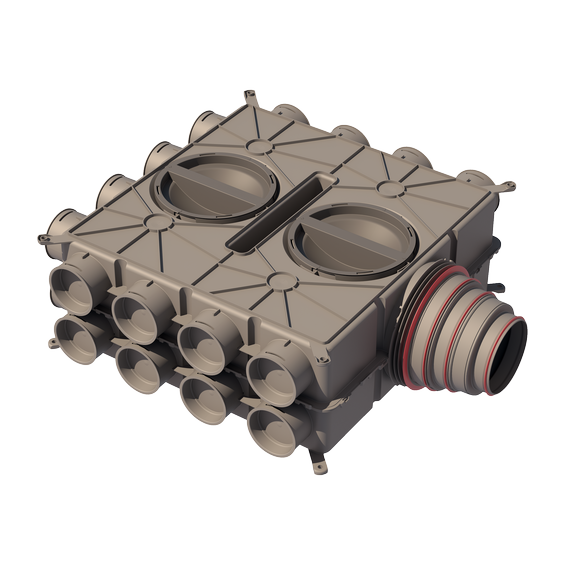

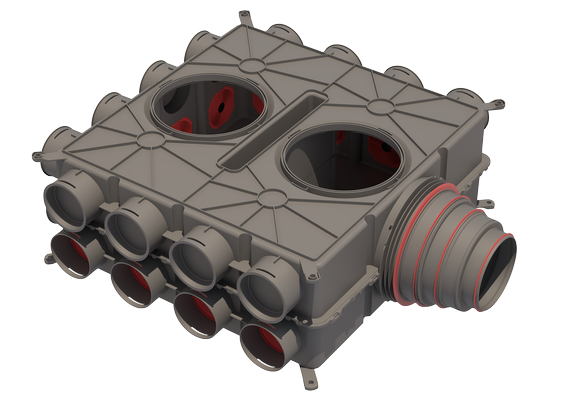

The Air Excellent DB824 is designed to radially distribute air from a ventilation unit, minimizing system pressure drop, fan energy use, and sound levels. It is compatible with Aerfoam insulated ducts and features 24 Air Excellent AE34C duct connections. With DBOX adaptors, it can connect to any duct diameter within the Air Excellent range. It offers flexible placement options on either the ceiling or wall and can be connected vertically or horizontally.

  • Includes stepped adaptor, 24 internal air restrictor rings, and 20 covers for unused connections
  • Multiple openings for flexible configurations and easy installation/inspection access
  • Made of durable, rust-free, lightweight plastic (PP) ensuring ease of handling and installation
  • Airtight mechanical connections to minimize pressure loss, fan energy consumption, and sound levels
View all specifications

Detailed information

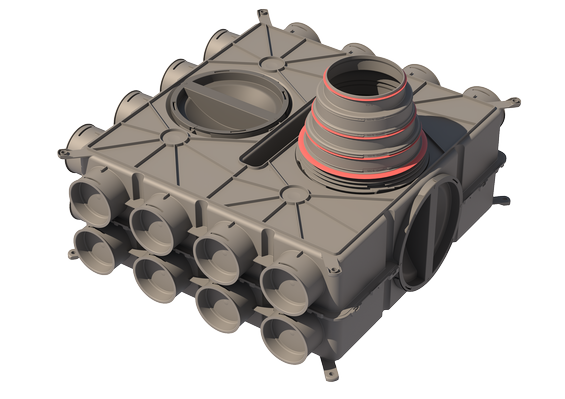

The Air Excellent distribution box DB824 is a versatile and efficient solution, complete with a stepped adaptor, 24 internal air restrictor rings, and 20 covers for unused connections. The stepped adaptor accommodates all sizes of Aerfoam insulated ducts and can be installed in either of the five inspection and maintenance openings (horizontal or vertical), offering flexible configuration options. The internal air restrictor rings allow precise control of the airflow rate to each room, ensuring optimal comfort throughout your space. Configuration is straightforward using the Aerflux ventilation configurator available online. If necessary, acoustic insulation blocks can be installed inside the box to reduce sound transmission through the ductwork system.

Specifications

General

Product Name
Air Excellent distribution box DB824 125-200 24 connections
GTIN
8713645246840
Type
Distribution Boxes
Trade name
Air Excellent

Technical

Colour
Grey
Number of covers
20
Anti static
Airflow direction
Supply / extract
Number of connections
24
Number of restrictor rings
24
Antimicrobial

Dimensions

Length gross
710 mm
Height
210 mm
Width
592 mm
Net weight
2.244 kg

Logistical

Intrastat
39259080
Base unit packaging
Box
Packaging / Trade length
728 mm
Packaging / Trade height
216 mm
Number per packaging
1
Gross weight
3.075 kg
Packaging / Trade width
598 mm

Performance

CE string
-
Temperature resistance (max.)
60 °C
Temperature resistance (min.)
-20 °C

Downloads

Technical data sheet

Technical data sheet - Air Excellent distribution box DB824 125-200 24 connections
