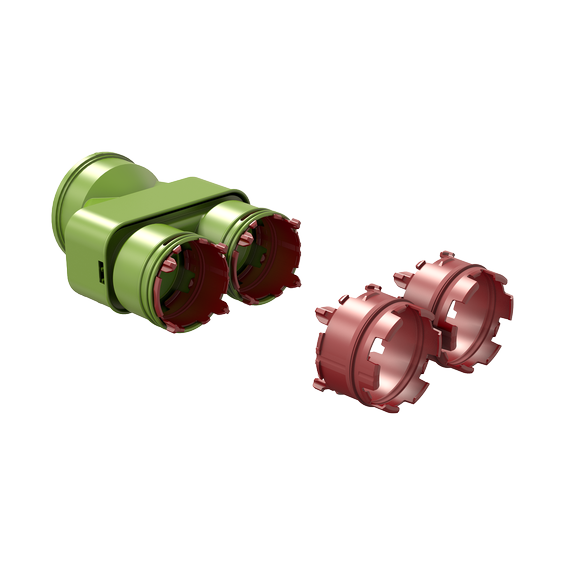

Air Excellent 2xAE23C DBOX Adaptor Kit

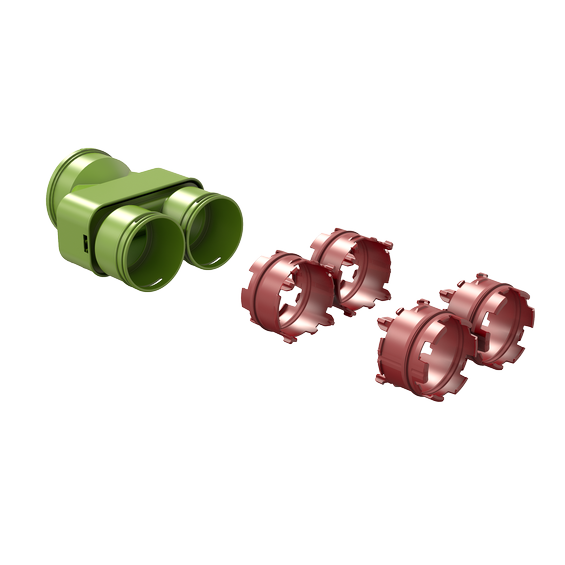

Air Excellent 2 x AE23C DBOX Adaptor Kit

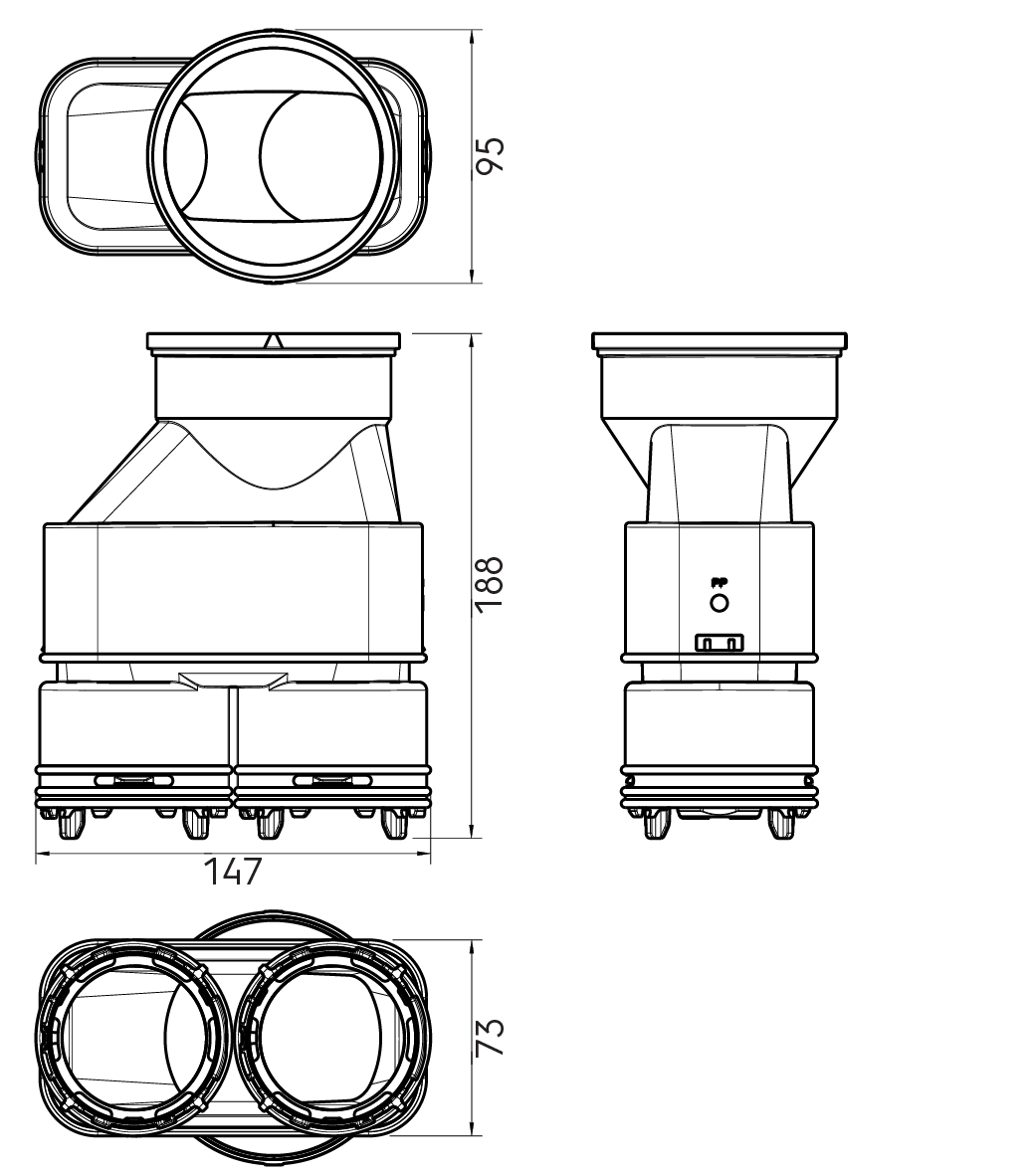

Dimensional drawing - Air Excellent 2xAE23C DBOX Adaptor Kit

Air Excellent 2xAE23C DBOX Adaptor Kit

Article number: 188980

Air Excellent 2xAE23C DBOX Adaptor Kit
Air Excellent 2 x AE23C DBOX Adaptor Kit
Dimensional drawing - Air Excellent 2xAE23C DBOX Adaptor Kit
Air Excellent 2xAE23C DBOX Adaptor Kit
Air Excellent 2 x AE23C DBOX Adaptor Kit
Dimensional drawing - Air Excellent 2xAE23C DBOX Adaptor Kit

The AE23C DBOX Adaptor Kit seamlessly connects a DBOX and two AE23C ducts to a valve adaptor, enabling quick, secure, and tool-free installation. The kit includes four AE23C Click-Seal Rings.

  • Airtight connections for reliable system performance
  • Low pressure loss to reduce fan energy use
  • Quick, tool-free installation
  • Lightweight design for easy handling
  • TÜV SÜD-certified for quality and safety
View all specifications

Specifications

General

Product Name
Air Excellent 2xAE23C DBOX Adaptor Kit
Trade name
Air Excellent
GTIN
8713645247625

Technical

Comm. Dimension
63 mm
Shape
Circular
Anti static
Airflow direction
Supply / extract
Colour
Green
Number of connections
2
Antimicrobial

Dimensions

Length gross
188 mm
Height
95 mm
Width
147 mm
Net weight
0.175 kg

Logistical

Intrastat
39259080
Gross weight
0.175 kg
Packaging / Trade width
147 mm
Base unit packaging
Unpacked
Packaging / Trade length
188 mm
Packaging / Trade height
95 mm

Performance

CE string
-
Temperature resistance (max.)
60 °C
Temperature resistance (min.)
-20 °C

Downloads

Certificate

Certificate - TÜV SÜD Air Excellent

Installation manual

Installation manual - Air Excellent ductwork

Technical data sheet

Technical data sheet - Air Excellent 2xAE23C DBOX Adaptor Kit
