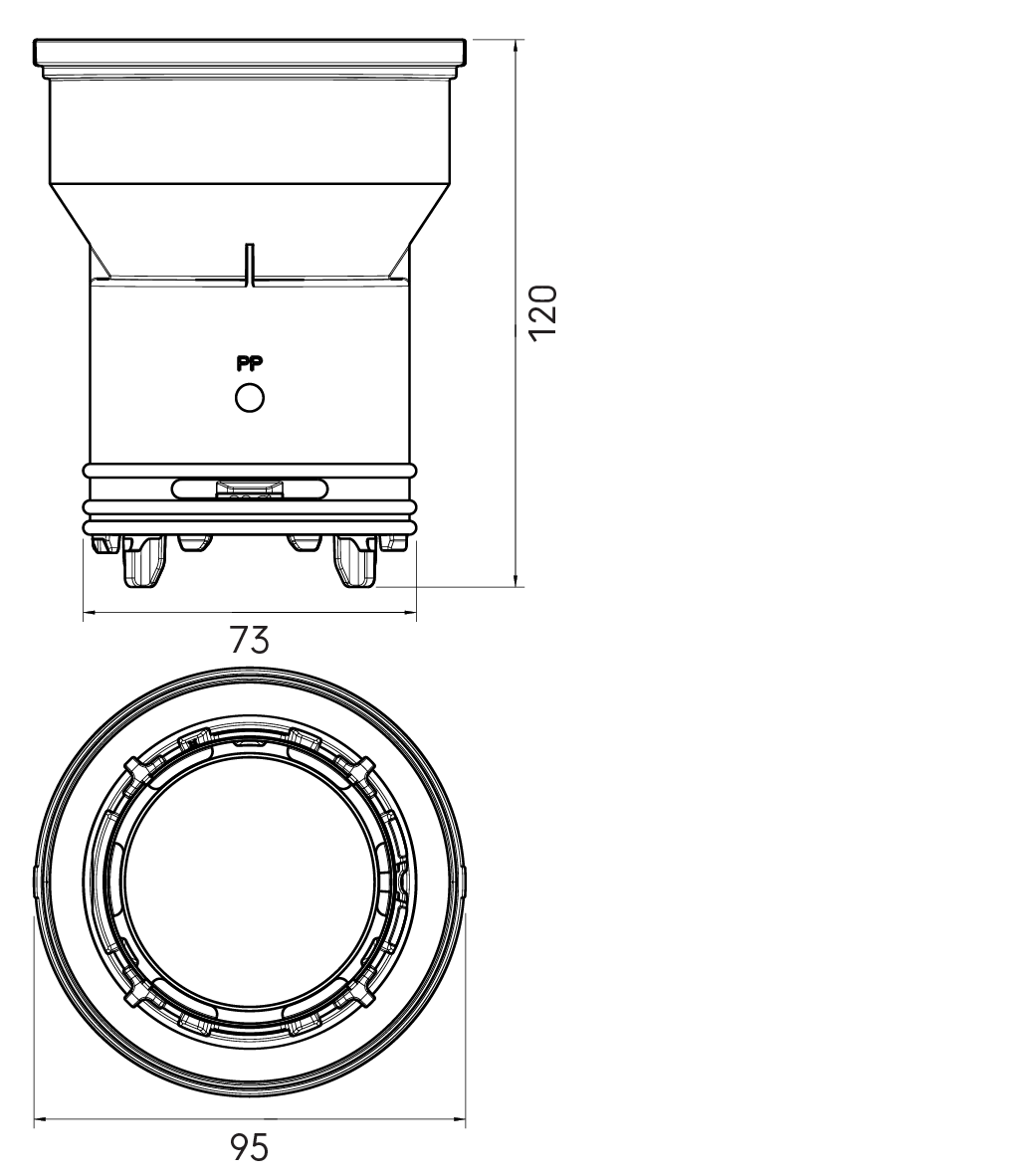

Dimensional drawing - Air Excellent AE23C DBOX Connection Set

Air Excellent AE23C DBOX Connection Set

Article number: 188982

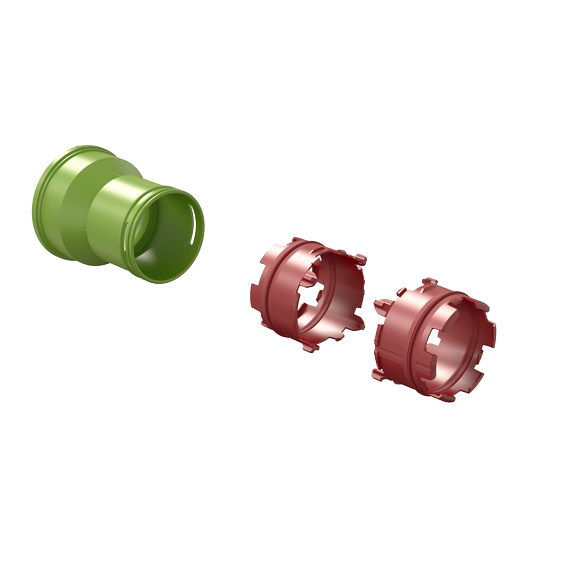

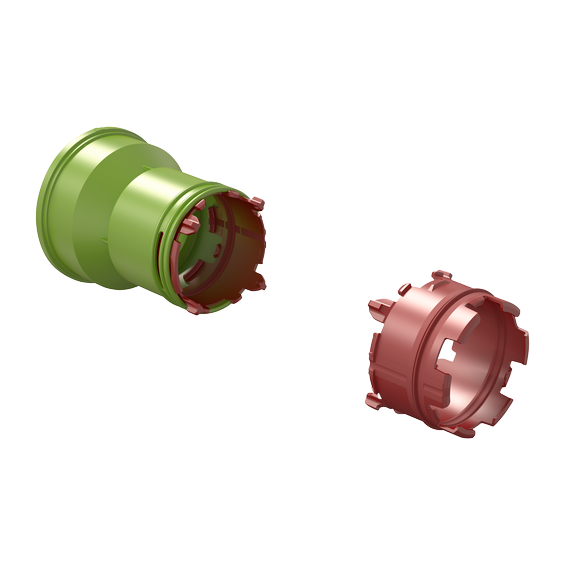

The AE23C DBOX Connection Set seamlessly connects a DBOX and an AE23C duct to a valve adaptor, ensuring a quick, secure and tool-free installation. Includes two AE23C Click-Seal Rings.

Airtight connections for reliable system performance
Low pressure loss to reduce fan energy use
Quick, tool-free installation
Lightweight design for easy handling
TÜV SÜD-certified for quality and safety

View all specifications

Specifications

General

Product Name

Air Excellent AE23C DBOX Connection Set

Trade name

Air Excellent

GTIN

8713645247632

Technical

Comm. Dimension

63 mm

Shape

Circular

Anti static

Airflow direction

Supply / extract

Colour

Green

Number of connections

1

Antimicrobial

Dimensions

Length gross

109 mm

Height

95 mm

Width

95 mm

Net weight

0.075 kg

Logistical

Intrastat

39259080

Gross weight

0.075 kg

Packaging / Trade width

95 mm

Base unit packaging

Wrapper

Packaging / Trade length

120 mm

Packaging / Trade height

95 mm

Performance

CE string

-

Temperature resistance (max.)

60 °C

Temperature resistance (min.)

-20 °C

Downloads

Certificate

Certificate - TÜV SÜD Air Excellent

Installation manual

Installation manual - Air Excellent ductwork
