Air Excellent AE45SC DBOX Bend Connection Set

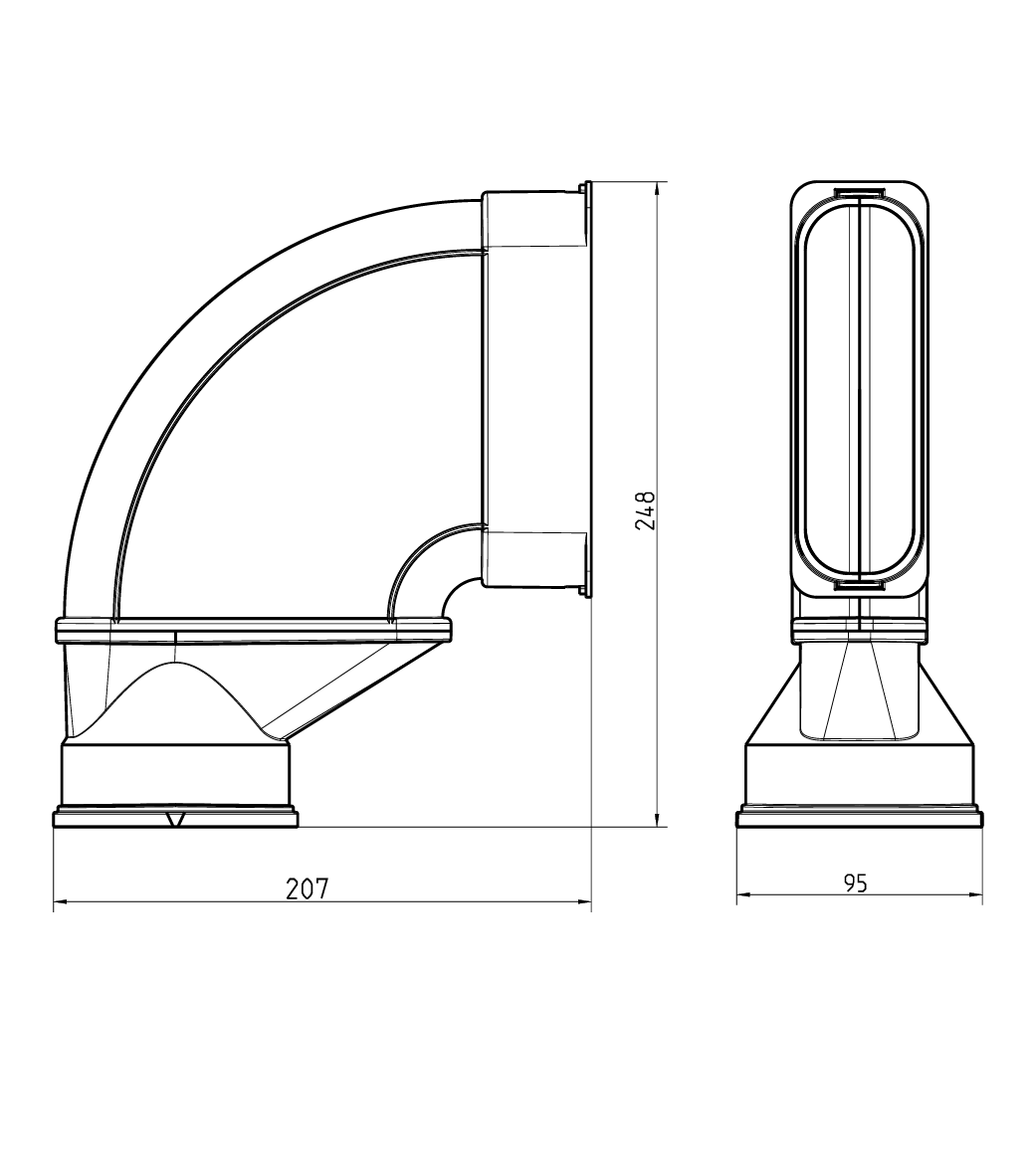

Dimensional drawing – Air Excellent AE45SC DBOX bend connection set

Air Excellent AE45SC DBOX Bend Connection Set

Article number: 188145

Air Excellent AE45SC DBOX Bend Connection Set
Dimensional drawing – Air Excellent AE45SC DBOX bend connection set
Air Excellent AE45SC DBOX Bend Connection Set
Dimensional drawing – Air Excellent AE45SC DBOX bend connection set

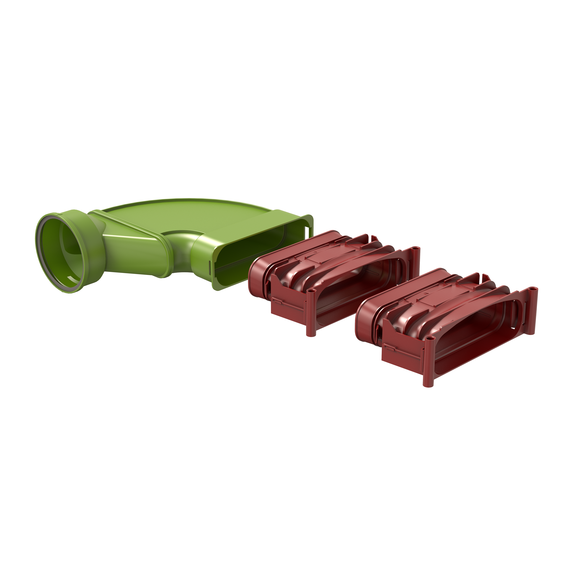

The Air Excellent DBOX bend connection is used to connect the AE45SC duct to the Air Excellent distribution box. The adaptor is supplied with two AE45SC seals to connect the duct and an integrated seal to connect the distribution box. These ensure an airtight mechanical connection without the need for tape or sealant.

  • Everything in one kit
  • Easy to install
  • Airtight (class ATC2 up to +/- 1000 Pa) thanks to mechanical connections, which minimises fan energy use and sound production
View all specifications

Specifications

General

Product Name
Air Excellent AE45SC DBOX Bend Connection Set
GTIN
8713645246192
Type
Adaptors
Trade name
Air Excellent

Technical

Comm. Dimension
50 x 140 mm
Shape
Semi-circular
Colour
Green
Airflow direction
Supply / extract

Dimensions

Length gross
248 mm
Height
95 mm
Width
207 mm
Net weight
0.346 kg

Logistical

Intrastat
39259080
Gross weight
0.346 kg
Packaging / Trade width
207 mm
Base unit packaging
Wrapper
Packaging / Trade length
248 mm
Packaging / Trade height
95 mm

Performance

CE string
-
Temperature resistance (max.)
60 °C
Temperature resistance (min.)
-20 °C

Downloads

Technical data sheet

Technical data sheet - Air Excellent AE45SC DBOX Bend Connection Set
