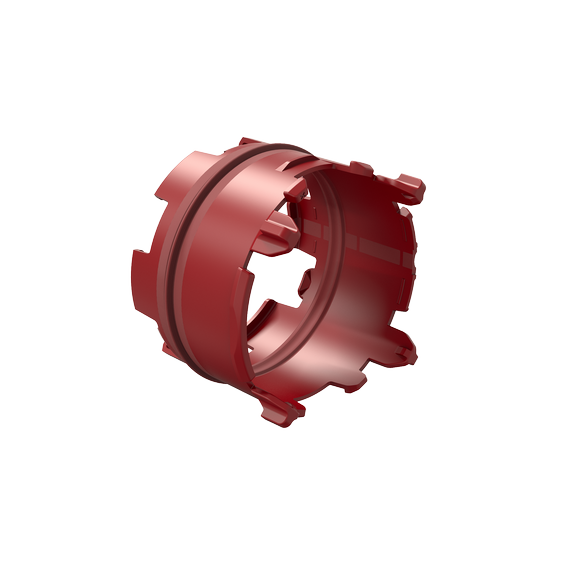

Air Excellent AE23C Seal Ring - 63 mm
Application picture - Click ring AE23C

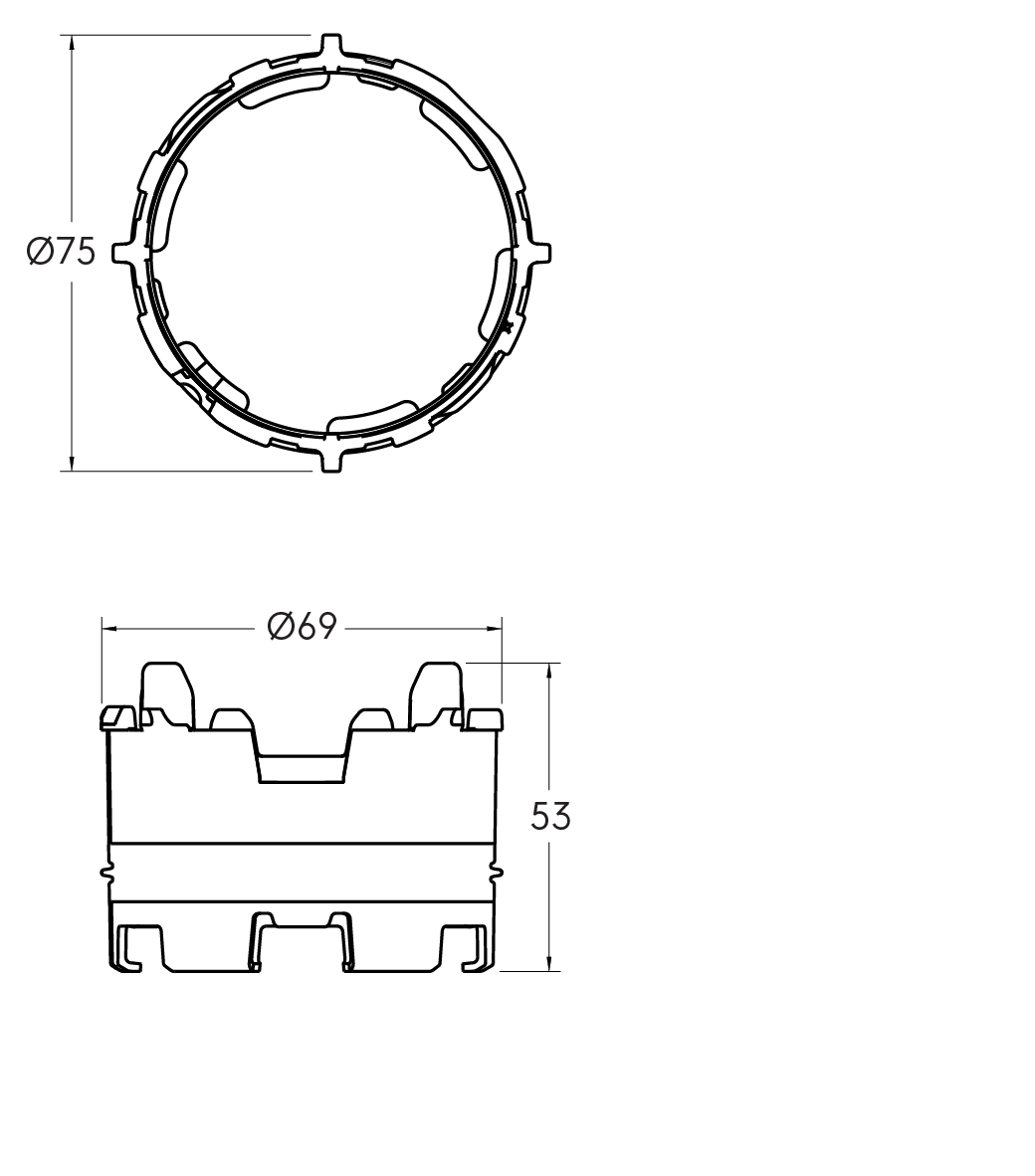

Dimensional drawing – Air Excellent AE23C Click-Seal Ring

Air Excellent AE23C Click-Seal Ring (10 Pieces)

Article number: 188981

Air Excellent AE23C Seal Ring - 63 mm
Application picture - Click ring AE23C
Dimensional drawing – Air Excellent AE23C Click-Seal Ring
Air Excellent AE23C Seal Ring - 63 mm
Application picture - Click ring AE23C
Dimensional drawing – Air Excellent AE23C Click-Seal Ring

The AE23C Click-Seal ring connects Air Excellent ducts to system accessories, creating a secure and airtight mechanical joint. The ring features a patented 2-in-1 click and seal mechanism, enabling fast, tool-free installation in just one click while ensuring reliable system performance.

  • Airtight connections for reliable system performance
  • Low pressure loss to reduce fan energy use
  • Quick, tool-free installation in just one click
  • Patented 2-in-1 click and seal mechanism
  • TÜV SÜD-certified for quality and safety
View all specifications

Specifications

General

Product Name
Air Excellent AE23C Click-Seal Ring (10 Pieces)
GTIN
8713645247823
Type
Connectors
Trade name
Air Excellent

Technical

Comm. Dimension
63 mm
Shape
Circular
Antimicrobial
Colour
Red
Anti static
Airflow direction
Supply / extract

Dimensions

Length gross
75 mm
Height
53 mm
Width
75 mm
Net weight
0.013 kg

Logistical

Intrastat
39259080
Gross weight
0.13 kg
Packaging / Trade width
250 mm
Base unit packaging
Bag
Packaging / Trade length
350 mm
Packaging / Trade height
53 mm

Performance

CE string
-
Temperature resistance (max.)
60 °C
Temperature resistance (min.)
-20 °C

Downloads

Certificate

Certificate - TÜV SÜD Air Excellent

Installation manual

Installation manual - Air Excellent ductwork

Technical data sheet

Technical data sheet - Air Excellent AE23C Click-Seal Ring (10 Pieces)

Brochure/folder

Brochure - Smart ventilation, healthy living
