188317-INOX-Grill
Dimensional drawing – Air Excellent floor grille

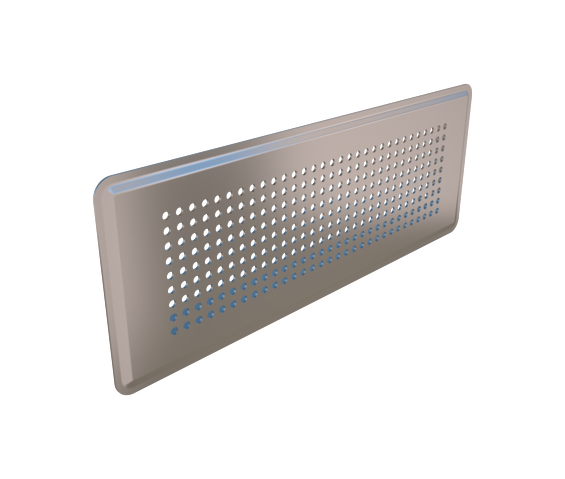

Air Excellent Floor Grille Stainless Steel

Article number: 188317

188317-INOX-Grill
Dimensional drawing – Air Excellent floor grille
188317-INOX-Grill
Dimensional drawing – Air Excellent floor grille

A stylish floor grille, which can be inserted into the Air Excellent floor grille adaptors.

  • Modular manifolds, which can be used with all 6 duct types
  • Semi-rigid plastic ducts on a roll and airtight mechanical connections, which are extremely easy to install
  • Low system pressure loss due to radial design
View all specifications

Detailed information

This item must be used to cover the Air Excellent floor grille adaptors.

Specifications

General

Product Name
Air Excellent Floor Grille Stainless Steel
GTIN
8713645175126
Type
Valves & Grilles
Trade name
Air Excellent

Technical

Comm. Dimension
50 x 100 mm / 60 x 130 mm / 75 mm / 90 mm
Shape
Rectangular
Colour
Metal grey
Airflow direction
Supply / extract

Dimensions

Length gross
350 mm
Height
25 mm
Width
130 mm
Net weight
0.52 kg

Logistical

Intrastat
39259080
Base unit packaging
Box
Packaging / Trade length
365 mm
Packaging / Trade height
40 mm
Number per packaging
1
Gross weight
0.61 kg
Packaging / Trade width
145 mm

Performance

Extract capacity
50 m³/h
Temperature resistance (min.)
-20 °C
Supply capacity
50 m³/h
Temperature resistance (max.)
60 °C

Downloads

Certificate

Certificate - TÜV SÜD Air Excellent

Installation manual

Installation manual - Air Excellent ductwork

Technical data sheet

Technical data sheet - Air Excellent Floor Grille Stainless Steel

Brochure/folder

Brochure - Air Excellent
