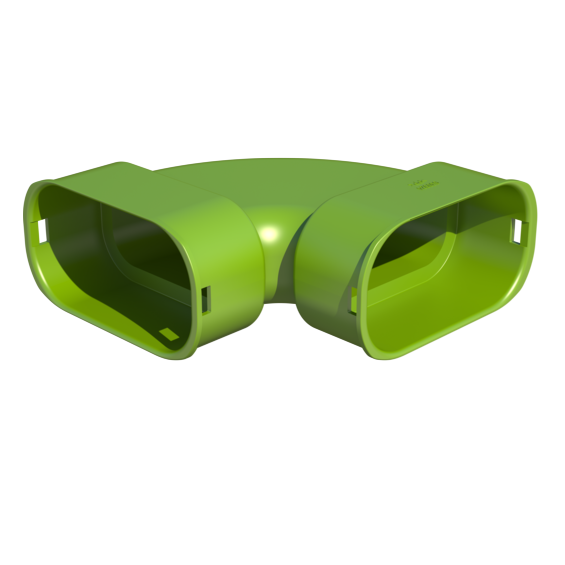

Air Excellent AE35SC Horizontal Bend 90°

Article number: 188304

188304-AE35sc-BendHorizontal
188304-AE35sc-BendHorizontal

An AE35sc (100x50mm) duct accessory. Use 2 AE35SC seal rings to make airtight mechanical connections to the ducts (airtightness class D = ATC 2 up to +/- 2000 Pa).

  • Low system pressure loss due to radial design
  • Airtightness class D/ATC 2 up +/- 2000 Pa, which minimises fan energy use and sound production
  • Modular manifolds, which can be used with all duct types
  • Semi-rigid ducts on a roll and airtight mechanical connections, which are extremely easy to install
  • TÜV SÜD and ISEGA tested and certified, REACH compliant
View all specifications

Specifications

General

Product Name
Air Excellent AE35SC Horizontal Bend 90°
GTIN
8713645175027
Comm. Dimension
50 x 100 mm
Trade name
Air Excellent

Technical

Comm. Dimension
50 x 100 mm
Material
PP
Antimicrobial
true
Colour
Green
Anti static
true

Dimensions

Length gross
164 mm
Height
61 mm
Width
164 mm
Net weight
0.11 kg

Logistical

Intrastat
39259080
Base unit packaging
Unpacked
Packaging / Trade length
164 mm
Packaging / Trade height
61 mm
Number per packaging
1
Gross weight
0.11 kg
Packaging / Trade width
164 mm

Performance

Temperature resistance (min.)
-20 °C
Installation temperature (min.)
-20 °C
Temperature resistance (max.)
60 °C
Installation temperature (max.)
60 °C
