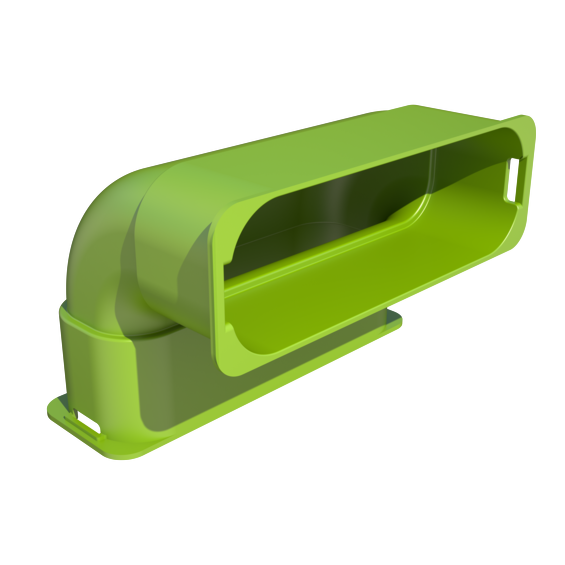

Air Excellent AE45SC Vertical Bend 90°

Article number: 188558

188.558-AE45sc-VerticalBend
188.558-AE45sc-VerticalBend

An AE45SC (140x50mm) duct accessory. Use 2 AE45SC seal rings to make airtight mechanical connections to the ducts (airtightness class C = ATC 3 up to +/- 2000 Pa).

  • Low system pressure loss due to radial design
  • Airtightness class C/ATC 2 up +/- 2000 Pa, which minimises fan energy use and sound production
  • Modular manifolds, which can be used with all duct types
  • Semi-rigid ducts on a roll and airtight mechanical connections, which are extremely easy to install
  • TÜV SÜD and ISEGA tested and certified, REACH compliant
View all specifications

Specifications

General

Product Name
Air Excellent AE45SC Vertical Bend 90°
GTIN
8713645220611
Comm. Dimension
50 x 140 mm
Trade name
Air Excellent

Technical

Comm. Dimension
50 x 140 mm
Material
PP
Antimicrobial
true
Colour
Green
Anti static
true

Dimensions

Length gross
105 mm
Height
105 mm
Width
160 mm
Net weight
0.11 kg

Logistical

Intrastat
39259080
Base unit packaging
Unpacked
Packaging / Trade length
143 mm
Packaging / Trade height
175 mm
Number per packaging
1
Gross weight
0.11 kg
Packaging / Trade width
101 mm

Performance

Temperature resistance (min.)
-20 °C
Installation temperature (min.)
-20 °C
Temperature resistance (max.)
60 °C
Installation temperature (max.)
60 °C
