Ubiform+ 600mm x 5m Anthracite

Article number: 539008

539 005_Ubiform+_ocre_600x5
539 004_Ubiform+_noir_450x5 (2)
539 004_Ubiform+_noir_450x5 (3)
539 005_Ubiform+_ocre_600x5
539 004_Ubiform+_noir_450x5 (2)
539 004_Ubiform+_noir_450x5 (3)

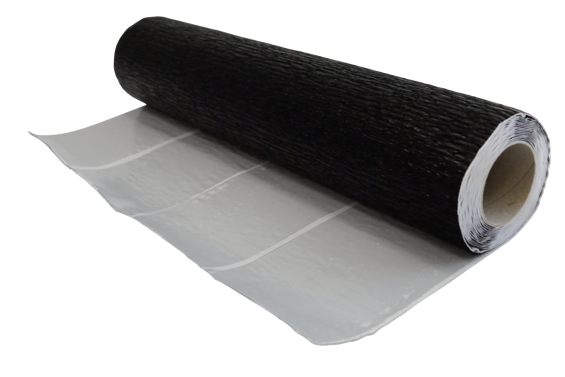

Ubiform + is a universal self-adhesive flashing that is easy to install without the need for specialised tools. Thanks to its band of aluminium it is extremely durable and lightweight. The creped aluminium allows Ubiform + to stretch up to 60% of its initial dimension and is also resistant to UV and weathering. The lower adhesive layer uses a high bond butyl adhesive, the innovative system replaces conventional flashings made of zinc, copper or lead when a cost-efficient, simple and fast junction seals are required still ensuring a comparatively high and long lasting seal quality.

  • Lightweight and easy to handle
  • Fully self adhesive rolls
  • Quick and easy to install
  • Suits most conventional flashings
  • A practical and cost-effective solution consisting of a full surface self-adhesive profiled aluminium roll
  • Secure and fast alternative to sheet lead flashings in most typical junction points
  • Overlapping adhesion without any problem
  • Optimum adhesion thanks to a high bond butyl layer
  • Foil reinforced on the reverse
  • UV-stable and weather-resistant
View all specifications

Specifications

General

Product Name
Ubiform+ 600mm x 5m Anthracite
GTIN
8713645225647
Type
Lead-Free Flashing
Trade name
Ubiform+

Technical

Colour
Anthracite
Material
Butyl

Dimensions

Length gross
5 m / 5000 mm
Height
1.4 mm
Width
600 mm
Net weight
5.7 kg

Logistical

Intrastat
68071000
Base unit packaging
Box
Packaging / Trade length
150 mm
Packaging / Trade height
625 mm
Number per packaging
1
Gross weight
5.95 kg
Packaging / Trade width
150 mm

Performance

Temperature resistance (min.)
-40 °C
Temperature resistance (max.)
100 °C
