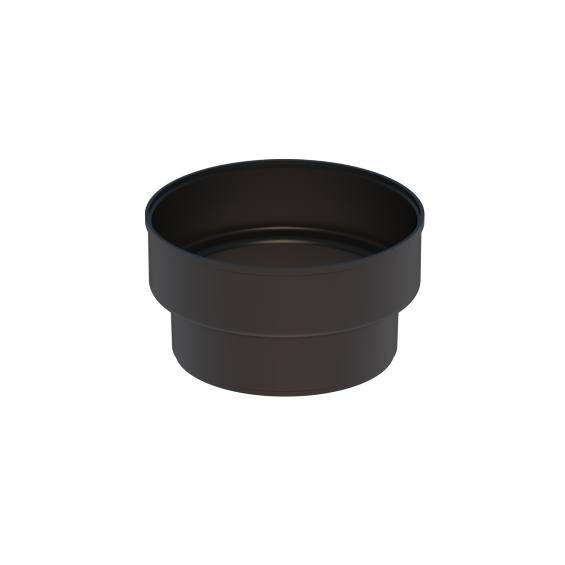

Aerfoam adaptor 190-160 plastic black
Aerfoam insulated ductwork system
Aerfoam insulated ductwork system, view from below

Aerfoam Adaptor 180 (F) - 160 (M)

Article number: 542003

Aerfoam adaptor 190-160 plastic black
Aerfoam insulated ductwork system
Aerfoam insulated ductwork system, view from below
Aerfoam adaptor 190-160 plastic black
Aerfoam insulated ductwork system
Aerfoam insulated ductwork system, view from below

An adaptor used to connect Aerfoam 180 (F) to Aerfoam 160 (M).

  • Insulated
  • Extremely easy and safe to cut to length
  • Airtight mechanical connections, which are extremely easy to install
  • Airtightness class D/ATC 2 up +/- 200 Pa, which minimises fan energy use and sound production
  • Zero carbon, EPD certified and REACH compliant
View all specifications

Specifications

General

Product Name
Aerfoam Adaptor 180 (F) - 160 (M)
GTIN
8713645211145
Type
Adaptors
Trade name
Aerfoam

Technical

Comm. Dimension
180 mm
Material
PE
Airflow direction
Supply / extract
Colour
Black
Shape
Circular

Dimensions

Length gross
220 mm
Height
103 mm
Width
220 mm
Net weight
0.2 kg

Logistical

Intrastat
39174000
Base unit packaging
Unpacked
Packaging / Trade length
220 mm
Packaging / Trade height
103 mm
Number per packaging
1
Gross weight
0.2 kg
Packaging / Trade width
220 mm

Performance

CE string
-

Downloads

Installation manual

Installation manual - Aerfoam system

Brochure/folder

Brochure - Aerfoam
