Aerfoam 160-160-125 T-piece

Article number: 188238

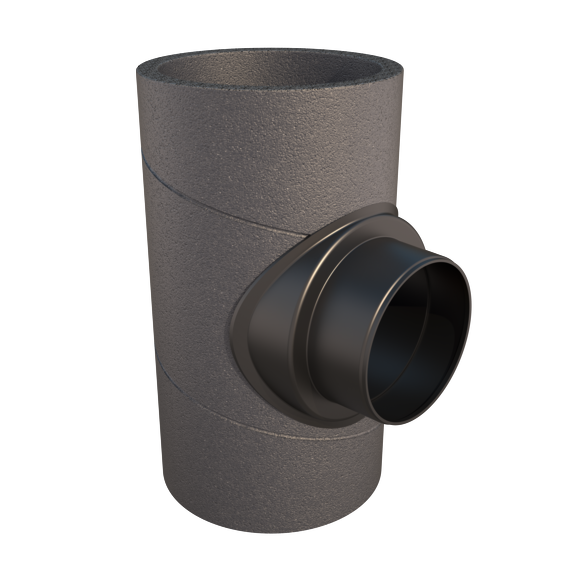

0188238-T-STUK 160-125 90° EPE
Aerfoam insulated ductwork system
Aerfoam insulated ductwork system, view from below
0188238-T-STUK 160-125 90° EPE
Aerfoam insulated ductwork system
Aerfoam insulated ductwork system, view from below

Insulating ducts in air distribution systems used for ventilation, heating or cooling is often required to minimise heat loss or prevent condensation on or in the duct. Ubbink has developed a complete range of insulated ductwork, which are extremely easy to install and maintain. They are available in a large range of diameters and bends. Several accessories including terminals and airtight external duct seals complete the program.

  • Compact, mechanical connections
  • Extremely light material
  • Easy to dismantle for maintenance
  • Zero carbon footprint
  • BIM-ready
View all specifications

Specifications

General

Product Name
Aerfoam 160-160-125 T-piece
GTIN
8713645203553
Type
T-Piece
Trade name
Aerfoam

Technical

Comm. Dimension
160 mm
Material
EPE
Insulation material
EPS
Colour
Grey
Shape
Circular

Dimensions

Length gross
316 mm
Net weight
0.02 kg
Height
254 mm

Logistical

Intrastat
39259080
Base unit packaging
Box
Packaging / Trade length
408 mm
Packaging / Trade height
306 mm
Number per packaging
1
Gross weight
0.38 kg
Packaging / Trade width
263 mm

Performance

CE string
-
