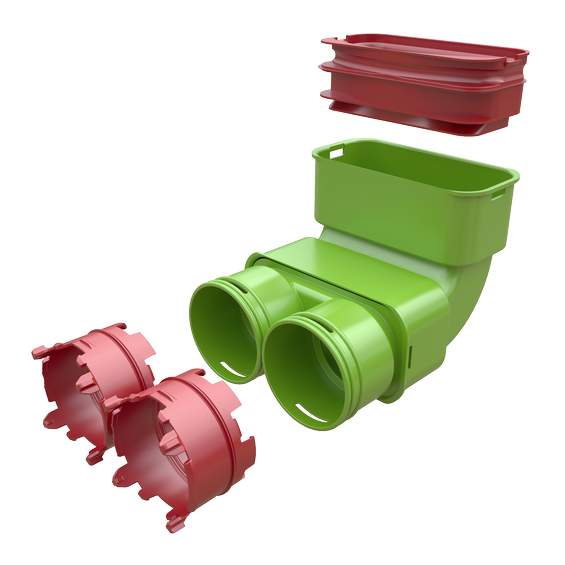

Exploded view - Air Excellent 2x AE23C - AE55SC Vertical Bend Adaptor Kit

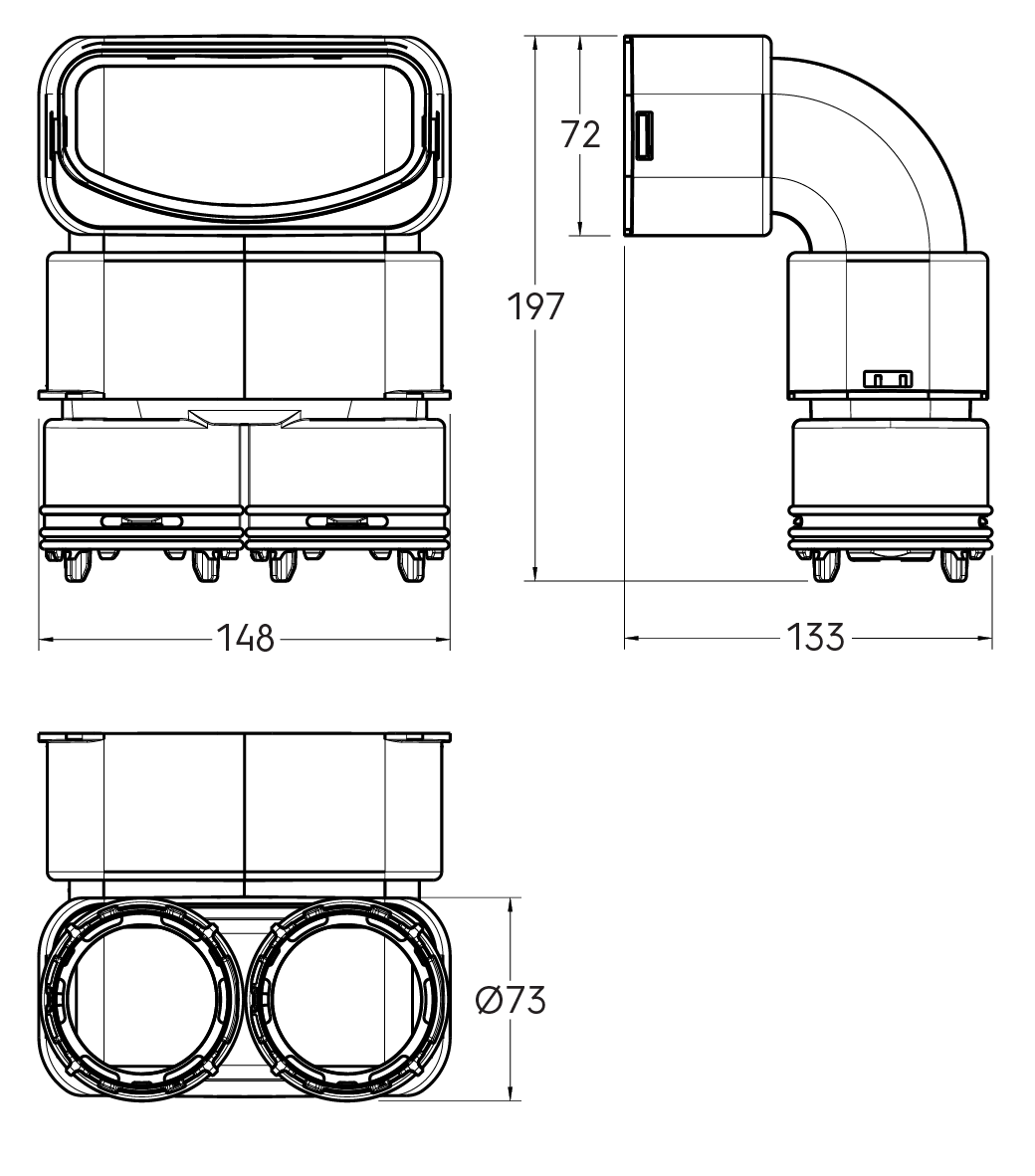

Dimensional drawing - Air Excellent 2x AE23C - AE55SC Vertical Bend Adaptor Kit

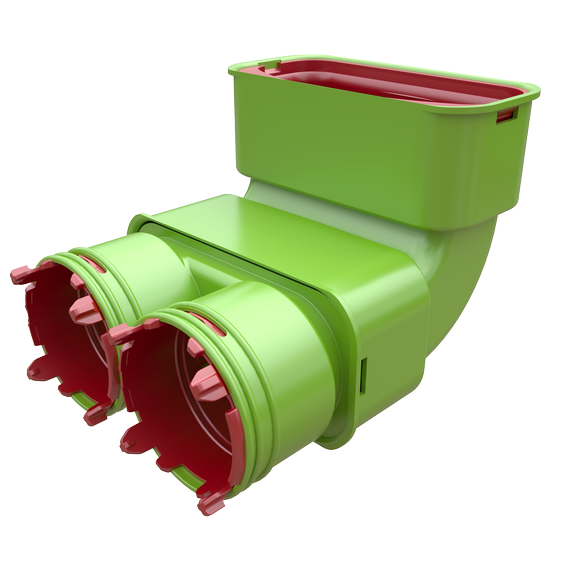

Air Excellent 2x AE23C - AE55SC Vertical Bend Adaptor Kit

Article number: 188988

The 2x AE23C - AE55SC Vertical Bend Adaptor Kit seamlessly connects two AE23C ducts with an AE55SC duct making it possible to create a vertical 90° bend in your system, ensuring a quick, secure and tool-free installation. Includes two AE23C Click-Seal Rings and one AE55SC Seal Ring.

Airtight connections for reliable system performance
Low pressure loss to reduce fan energy use
Quick, tool-free installation
Lightweight design for easy handling
TÜV SÜD-certified for quality and safety

View all specifications

Specifications

General

Product Name

Air Excellent 2x AE23C - AE55SC Vertical Bend Adaptor Kit

GTIN

8713645249728

Type

Bends

Trade name

Air Excellent

Technical

Comm. Dimension

60 x 130 mm / 63 mm

Anti static

Airflow direction

Supply / extract

Colour

Green

Antimicrobial

Dimensions

Length gross

197 mm

Height

133 mm

Width

148 mm

Net weight

0.136 kg

Logistical

Intrastat

39259080

Base unit packaging

Unpacked

Packaging / Trade length

197 mm

Packaging / Trade height

133 mm

Number per packaging

1

Gross weight

0.136 kg

Packaging / Trade width

148 mm

Performance

CE string

-

Temperature resistance (max.)

60 °C

Temperature resistance (min.)

-20 °C

Downloads

Certificate

Certificate - TÜV SÜD Air Excellent

Installation manual

Installation manual - Air Excellent ductwork
