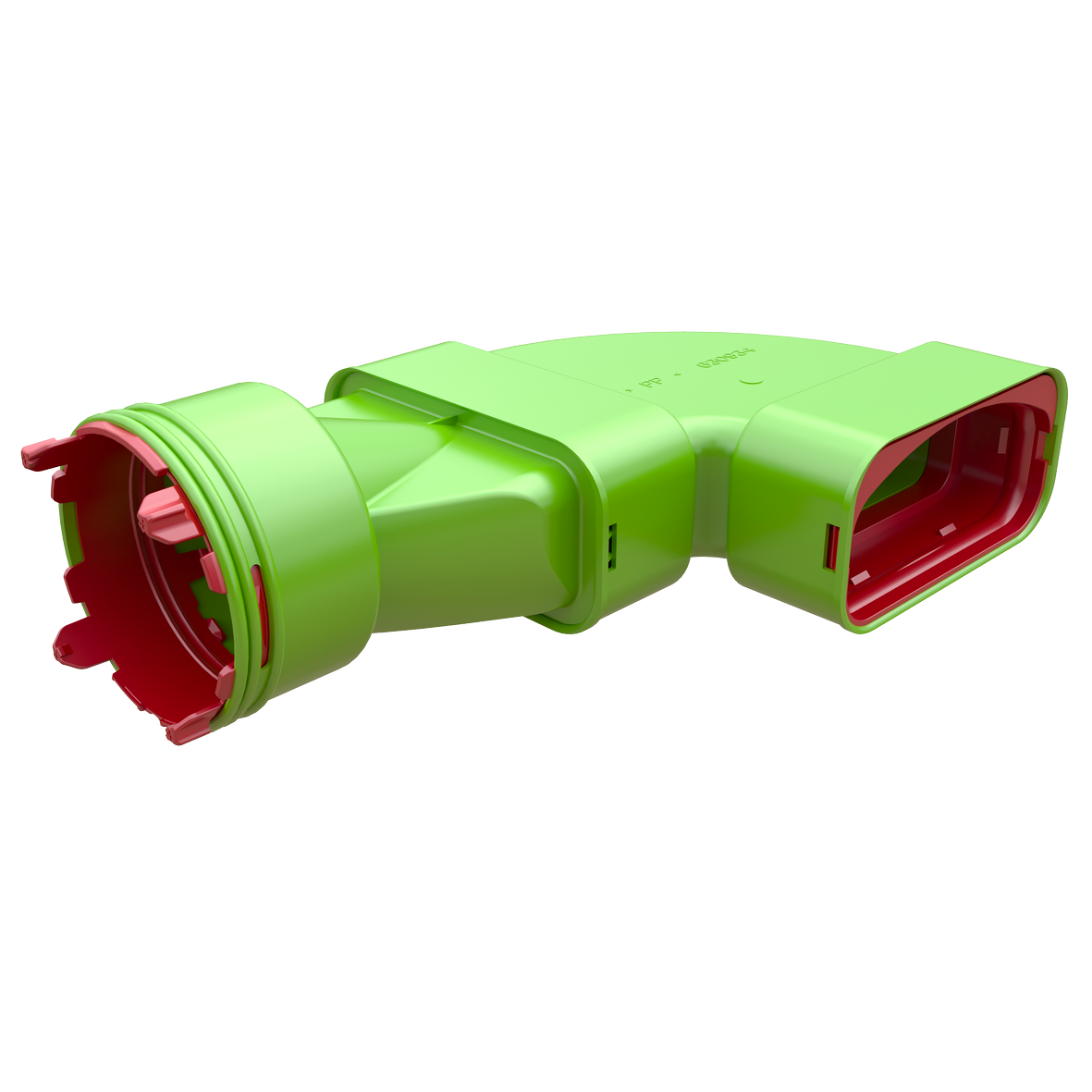

Air Excellent AE48C - AE55SC Horizontal Bend Adaptor Kit

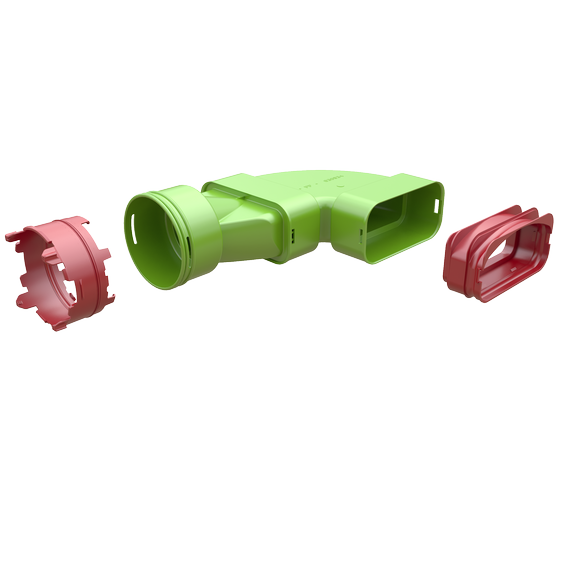

Exploded view - Air Excellent AE48C - AE55SC Horizontal Bend Adaptor Kit

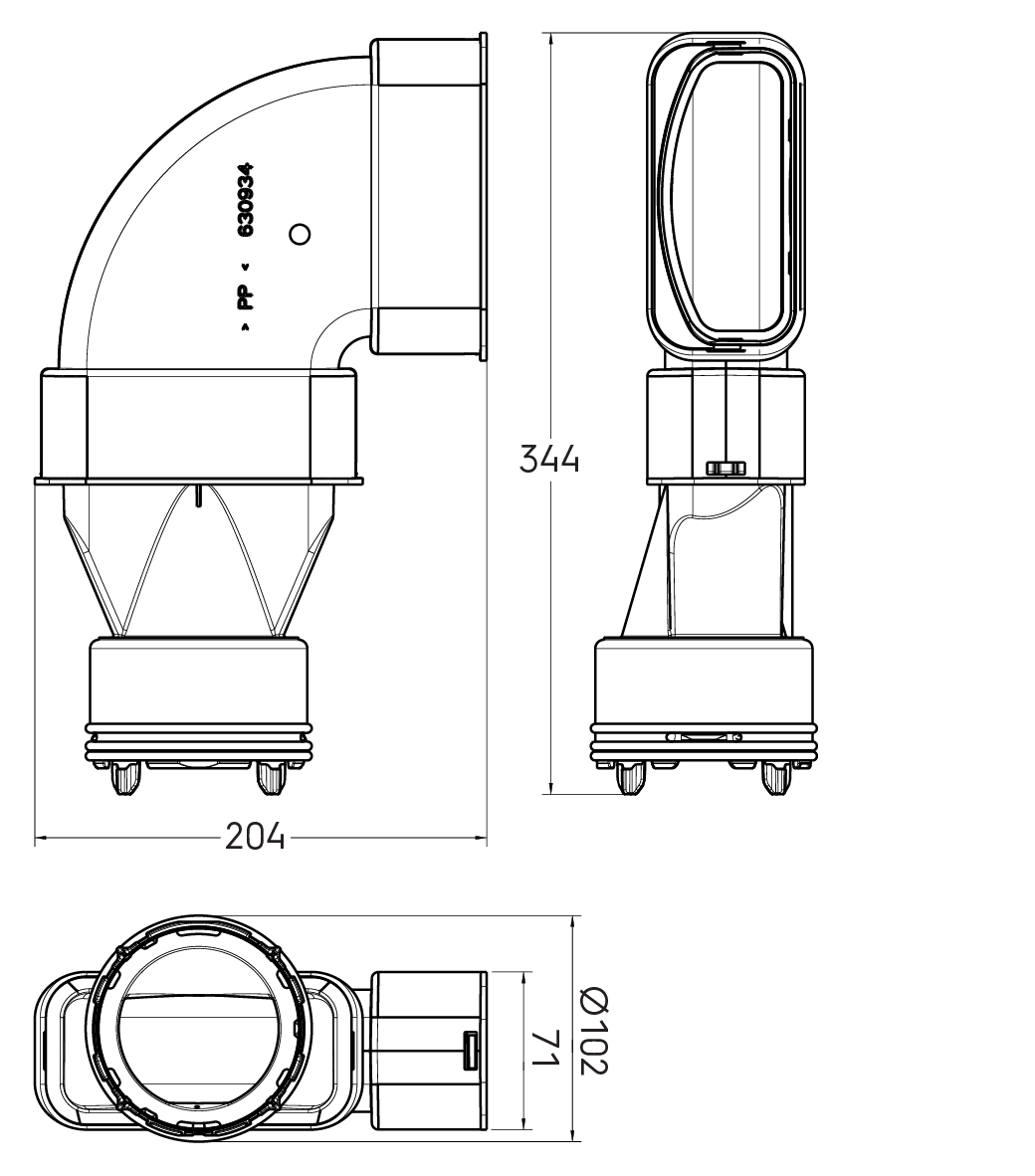

Dimensional drawing - Air Excellent AE48C - AE55SC Horizontal Bend Adaptor Kit

Air Excellent AE48C - AE55SC Horizontal Bend Adaptor Kit

Article number: 189038

The AE48C - AE55SC Horizontal Bend Adaptor Kit seamlessly connects an AE48C duct with an AE55SC duct making it possible to create a horizontal 90° bend in your system, ensuring a quick, secure and tool-free installation. Includes one AE48C Click-Seal Ring and one AE55SC Seal Ring.

Airtight connections for reliable system performance
Low pressure loss to reduce fan energy use
Quick, tool-free installation
Lightweight design for easy handling
TÜV SÜD-certified for quality and safety

View all specifications

Specifications

General

Product Name

Air Excellent AE48C - AE55SC Horizontal Bend Adaptor Kit

GTIN

8713645249742

Type

Bends

Trade name

Air Excellent

Technical

Comm. Dimension

50 x 140 mm / 90 mm

Shape

Bend

Antimicrobial

Colour

Green

Anti static

Airflow direction

Supply / extract

Dimensions

Length gross

344 mm

Height

102 mm

Width

204 mm

Net weight

0.146 kg

Logistical

Intrastat

39259080

Base unit packaging

Unpacked

Packaging / Trade length

344 mm

Packaging / Trade height

102 mm

Number per packaging

1

Gross weight

0.146 kg

Packaging / Trade width

204 mm

Performance

CE string

-

Temperature resistance (max.)

60 °C

Temperature resistance (min.)

-20 °C

Downloads

Certificate

Certificate - TÜV SÜD Air Excellent

Installation manual

Installation manual - Air Excellent ductwork
