Air Excellent AE48C Bend 90°

Article number: 188174

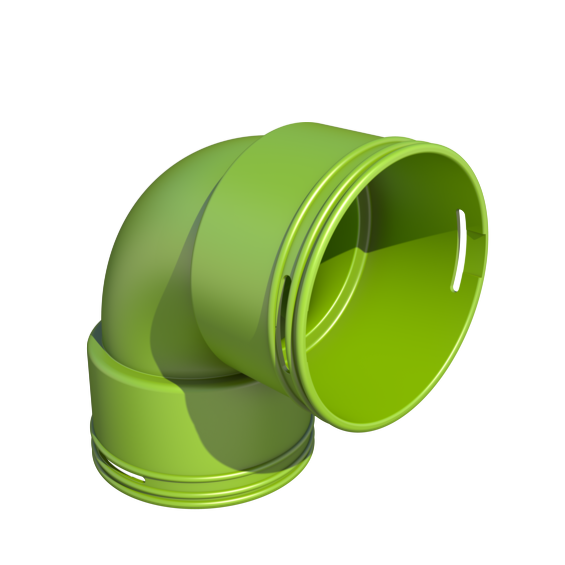

188174-ae48c_bend_90_degrees
188174-ae48c_bend_90_degrees

An AE48C (90/75mm) duct accessory. Use 2 AE48C seal and click rings to make airtight mechanical connections to the ducts (airtightness class D = ATC 2 up to +/- 2000 Pa).

  • Low system pressure loss due to radial design
  • Airtightness class D/ATC 2 up +/- 2000 Pa, which minimises fan energy use and sound production
  • Modular manifolds, which can be used with all duct types
  • Semi-rigid ducts on a roll and airtight mechanical connections, which are extremely easy to install
  • TÜV SÜD and ISEGA tested and certified, REACH compliant
View all specifications

Specifications

General

Product Name
Air Excellent AE48C Bend 90°
GTIN
8713645215747
Comm. Dimension
90 mm
Trade name
Air Excellent

Technical

Comm. Dimension
90 mm
Material
PP
Anti static
true
Colour
Green
Shape
Circular
Antimicrobial
true

Dimensions

Length gross
102 mm
Height
161 mm
Width
102 mm
Net weight
0.1 kg

Logistical

Intrastat
39259080
Base unit packaging
Foil
Packaging / Trade length
102 mm
Packaging / Trade height
161 mm
Number per packaging
1
Gross weight
0.1 kg
Packaging / Trade width
102 mm

Performance

Temperature resistance (min.)
-20 °C
Installation temperature (min.)
-20 °C
Temperature resistance (max.)
60 °C
Installation temperature (max.)
60 °C
