Air Excellent AE23C Connector

Article number: 188349

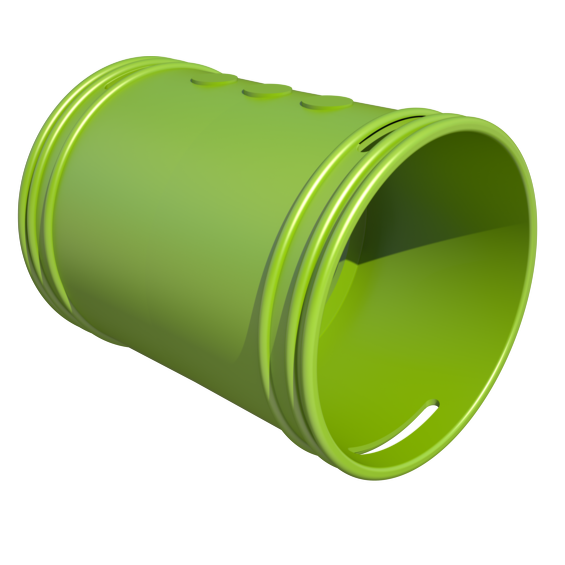

188349-AE23c-FlexFlex

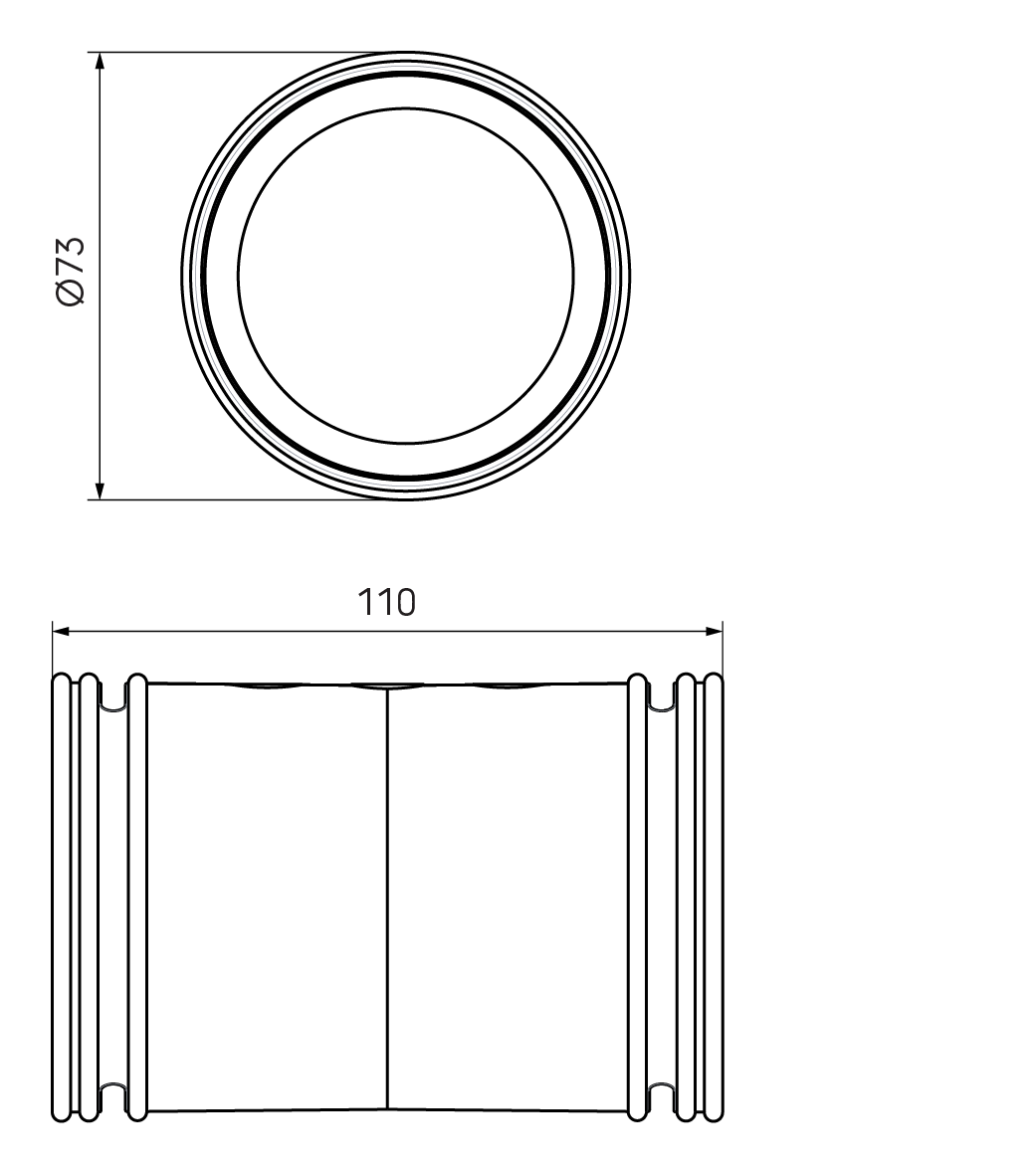

Dimensional drawing – AE23C Connector
188349-AE23c-FlexFlex
Dimensional drawing – AE23C Connector

An AE23C duct accessory used to connect AE23C ducts. Use 2 AE23C seal rings and 2 AE23C click rings to connect the ducts to it.

  • Modular manifolds, which can be used with all 6 duct types
  • Semi-rigid plastic ducts on a roll and airtight mechanical connections, which are extremely easy to install
  • Low system pressure loss due to radial design
  • Airtight (class D/ATC 2 up +/- 2000 Pa) thanks to mechanical connections, which minimises fan energy use and sound production
  • TÜV SÜD and ISEGA tested and certified, REACH compliant
View all specifications

Detailed information

This item can be used to connect 2 AE23C ducts.

Specifications

General

Product Name
Air Excellent AE23C Connector
GTIN
8713645202723
Type
Connectors
Trade name
Air Excellent

Technical

Comm. Dimension
63 mm
Material
PP
Anti static
true
Airflow direction
Supply / extract
Colour
Green
Shape
Circular
Antimicrobial
true

Dimensions

Length gross
110 mm
Height
73 mm
Width
73 mm
Net weight
0.04 kg

Logistical

Intrastat
39259080
Gross weight
0.05 kg
Base unit packaging
Unpacked

Performance

Temperature resistance (min.)
-20 °C
Temperature resistance (max.)
60 °C
