Air Excellent AE34C Connector

Article number: 188350

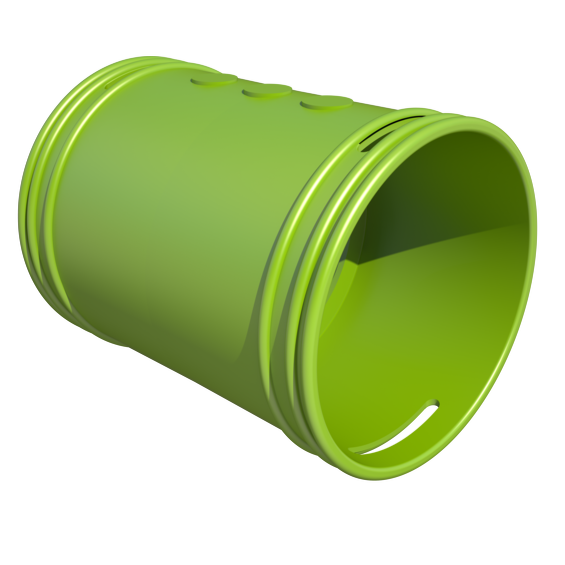

188.350-AE34c-ConnectorFlexFlex

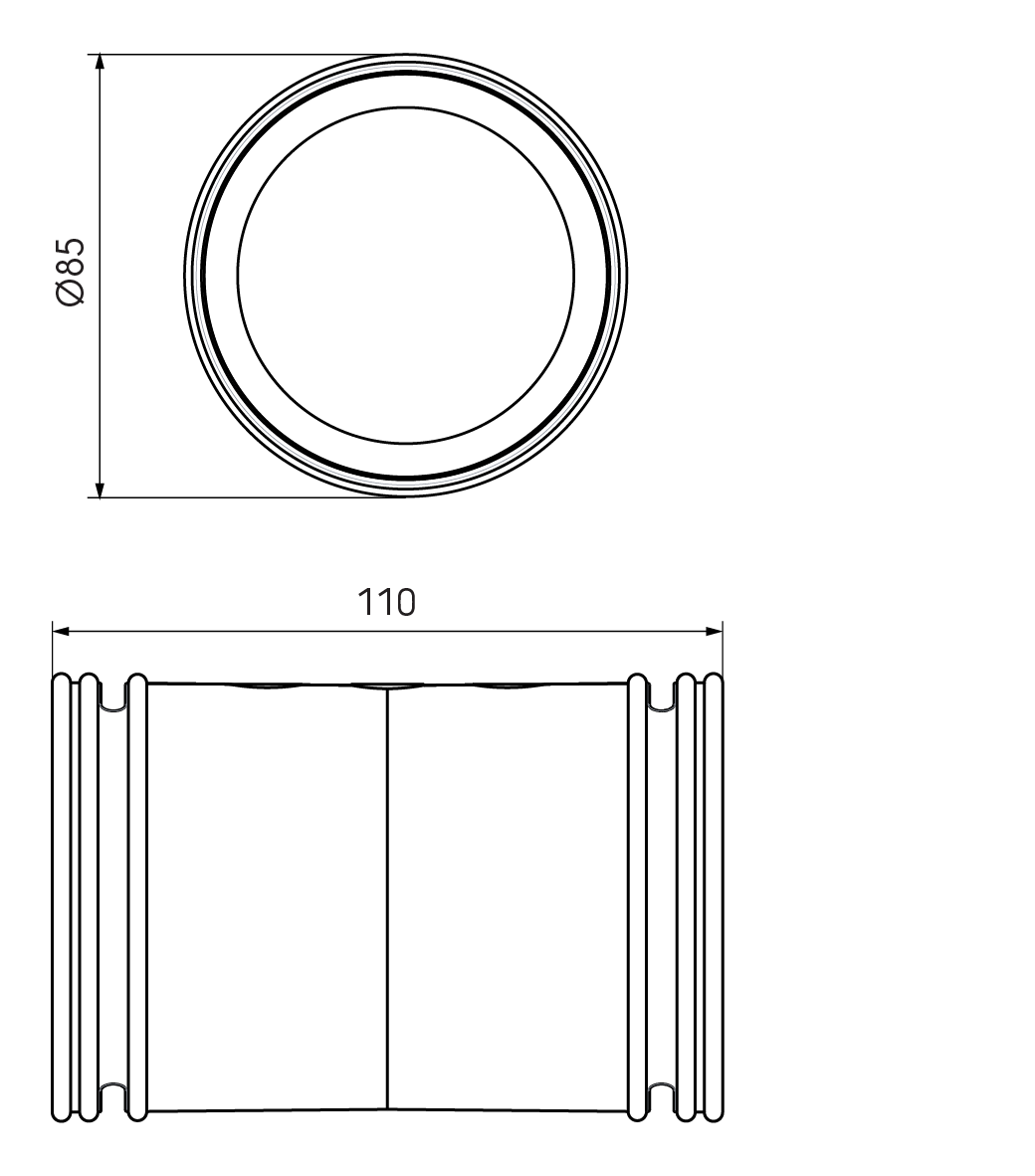

Dimensional drawing – AE34C Connector
188.350-AE34c-ConnectorFlexFlex
Dimensional drawing – AE34C Connector

An AE34C duct accessory used to connect AE34C ducts. Use 2 AE34C seal rings and 2 AE34C click rings to connect the ducts to it.

  • Modular manifolds, which can be used with all 6 duct types
  • Semi-rigid plastic ducts on a roll and airtight mechanical connections, which are extremely easy to install
  • Low system pressure loss due to radial design
  • Airtight (class D/ATC 2 up +/- 2000 Pa) thanks to mechanical connections, which minimises fan energy use and sound production
  • TÜV SÜD and ISEGA tested and certified, REACH compliant
View all specifications

Detailed information

This item can be used to connect 2 AE34C ducts.

Specifications

General

Product Name
Air Excellent AE34C Connector
GTIN
8713645204529
Type
Connectors
Trade name
Air Excellent

Technical

Comm. Dimension
75 mm
Colour indication
RAL 6038
Shape
Circular
Antimicrobial
Colour
Green
Material
PP
Anti static
Airflow direction
Supply / extract

Dimensions

Length gross
110 mm
Height
85 mm
Width
85 mm
Net weight
0.04 kg

Logistical

Intrastat
39259080
Gross weight
0.05 kg
Packaging / Trade width
85 mm
Base unit packaging
Unpacked
Packaging / Trade length
110 mm
Packaging / Trade height
85 mm

Performance

Temperature resistance (min.)
-20 °C
Temperature resistance (max.)
60 °C
