Air Excellent AE45SC Connector

Article number: 188551

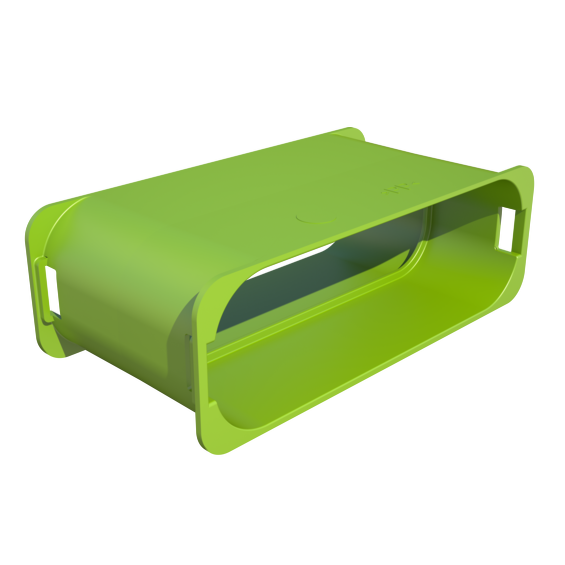

188.551-AE45sc-ConnectorFlexFlex
Dimensional drawing – AE45SC Connector
188.551-AE45sc-ConnectorFlexFlex
Dimensional drawing – AE45SC Connector

An AE45SC duct accessory used to connect AE45SC ducts. Use 2 AE45SC seal & click rings to connect the ducts to it.

  • Modular manifolds, which can be used with all 6 duct types
  • Semi-rigid plastic ducts on a roll and airtight mechanical connections, which are extremely easy to install
  • Low system pressure loss due to radial design
  • Airtight (class D/ATC 2 up +/- 2000 Pa) thanks to mechanical connections, which minimises fan energy use and sound production
  • TÜV SÜD and ISEGA tested and certified, REACH compliant
View all specifications

Detailed information

This item can be used to connect 2 AE45SC ducts.

Specifications

General

Product Name
Air Excellent AE45SC Connector
GTIN
8713645220598
Type
Connectors
Trade name
Air Excellent

Technical

Comm. Dimension
50 x 140 mm
Material
PP
Anti static
true
Airflow direction
Supply / extract
Colour
Green
Shape
Semi-circular
Antimicrobial
true

Dimensions

Length gross
82 mm
Height
52 mm
Width
160 mm
Net weight
0.06 kg

Logistical

Intrastat
39259080
Base unit packaging
Unpacked
Packaging / Trade length
160 mm
Packaging / Trade height
82 mm
Number per packaging
1
Gross weight
0.06 kg
Packaging / Trade width
52 mm

Performance

Temperature resistance (min.)
-20 °C
Temperature resistance (max.)
60 °C
