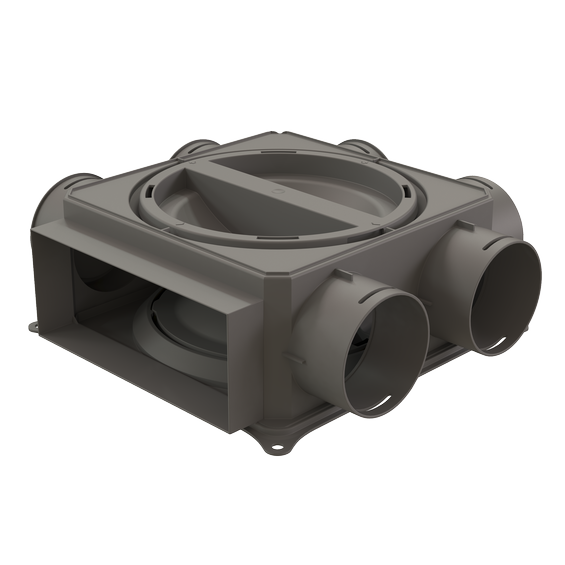

Air Excellent 200 Series DBOX DB206H200x80
Article number: 188673
Detailed information
Air Excellent distribution boxes are used to distribute air inside a dwelling radially, which minimises system pressure drop, fan energy use and sound production. They are made of plastic (PP) so that they are durable, don't rust and lightweight so easy to handle and install. This distribution box can be connected to mass flow ductwork with dimensions 200x80mm and has 6 Air Excellent duct connections.
Specifications
General
Product Name
Air Excellent 200 Series DBOX DB206H200x80
GTIN
8713645229386
Trade name
Air Excellent
Type
Distribution Boxes
Accessories in package
Restrictions rings
Technical
Colour
Grey
Anti static
Airflow direction
Supply / extract
Material
PP
Antimicrobial

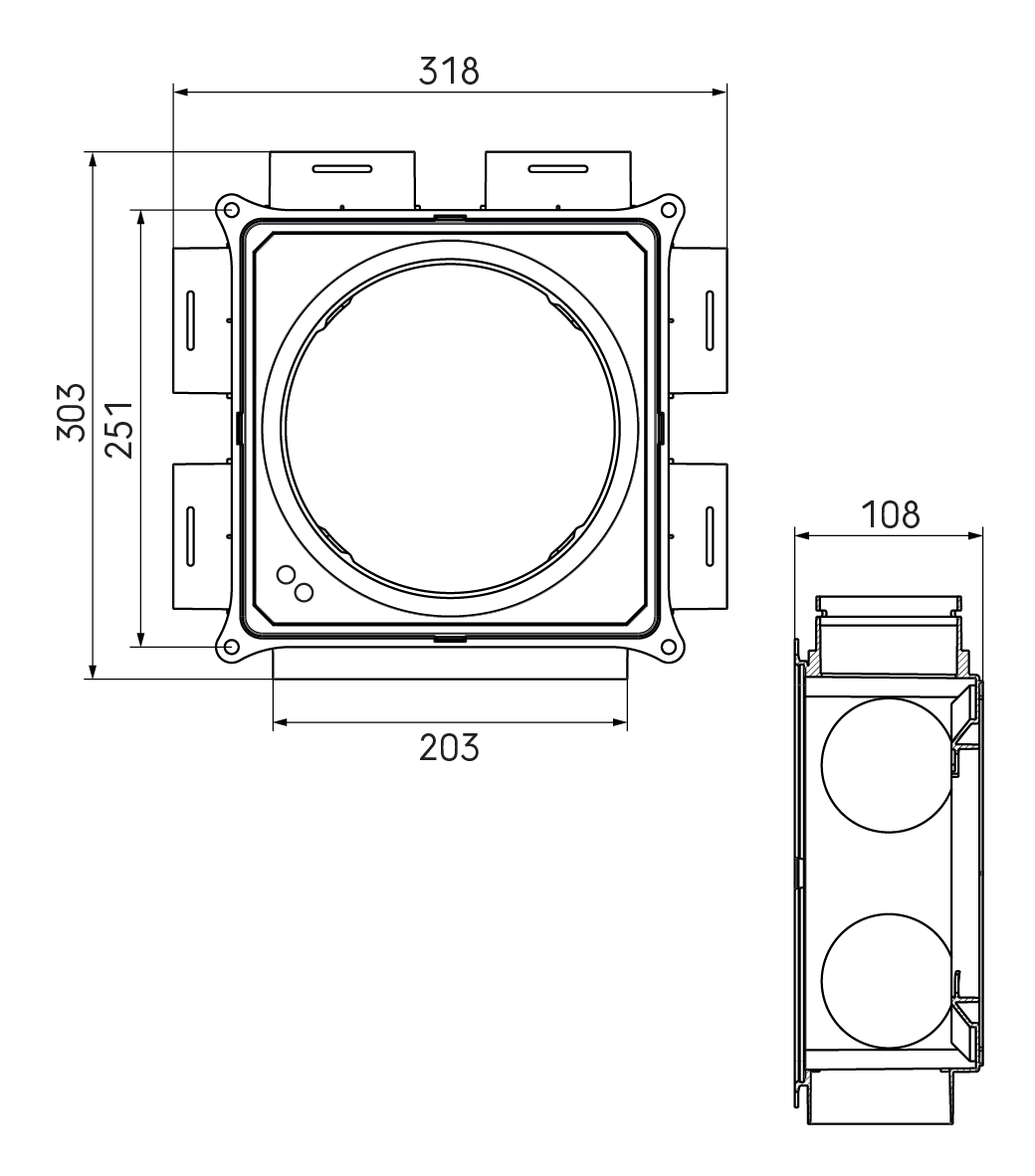

Dimensions
Length gross
318 mm
Height
108 mm
Width
303 mm
Net weight
0.86 kg
Logistical
Intrastat
39259080
Base unit packaging
Box
Packaging / Trade length
331 mm
Packaging / Trade height
227 mm
Number per packaging
1
Gross weight
1.25 kg
Packaging / Trade width
331 mm
Performance
CE string
-
Temperature resistance (max.)
60 °C
Temperature resistance (min.)
-20 °C
Downloads
Certificate
Certificate - TÜV SÜD Air Excellent
Installation manual
Installation manual - Distribution box 200 series
Technical data sheet
Technical data sheet - Air Excellent 200 Series DBOX DB206H200x80
Brochure/folder
Brochure - Air Excellent
