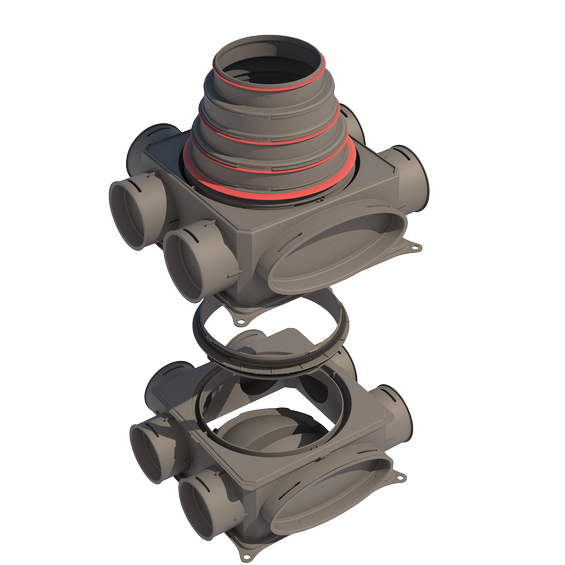

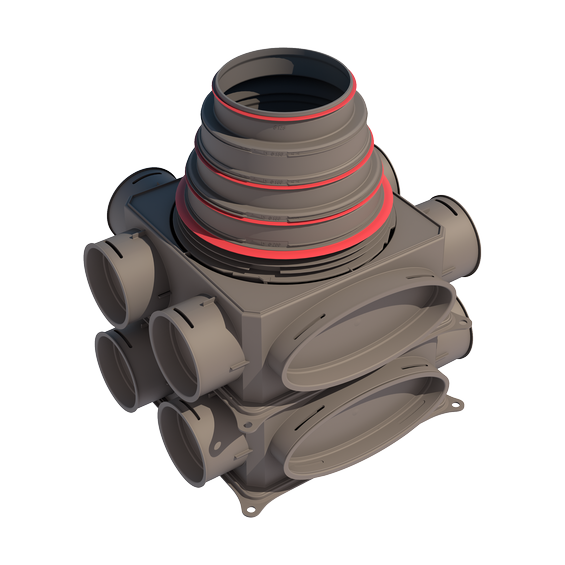

Air Excellent DB212 vertical extended, with stepped mass flow adaptor 125–200mm
Air Excellent DB212 vertical extended, with stepped mass flow adaptor 125–200mm

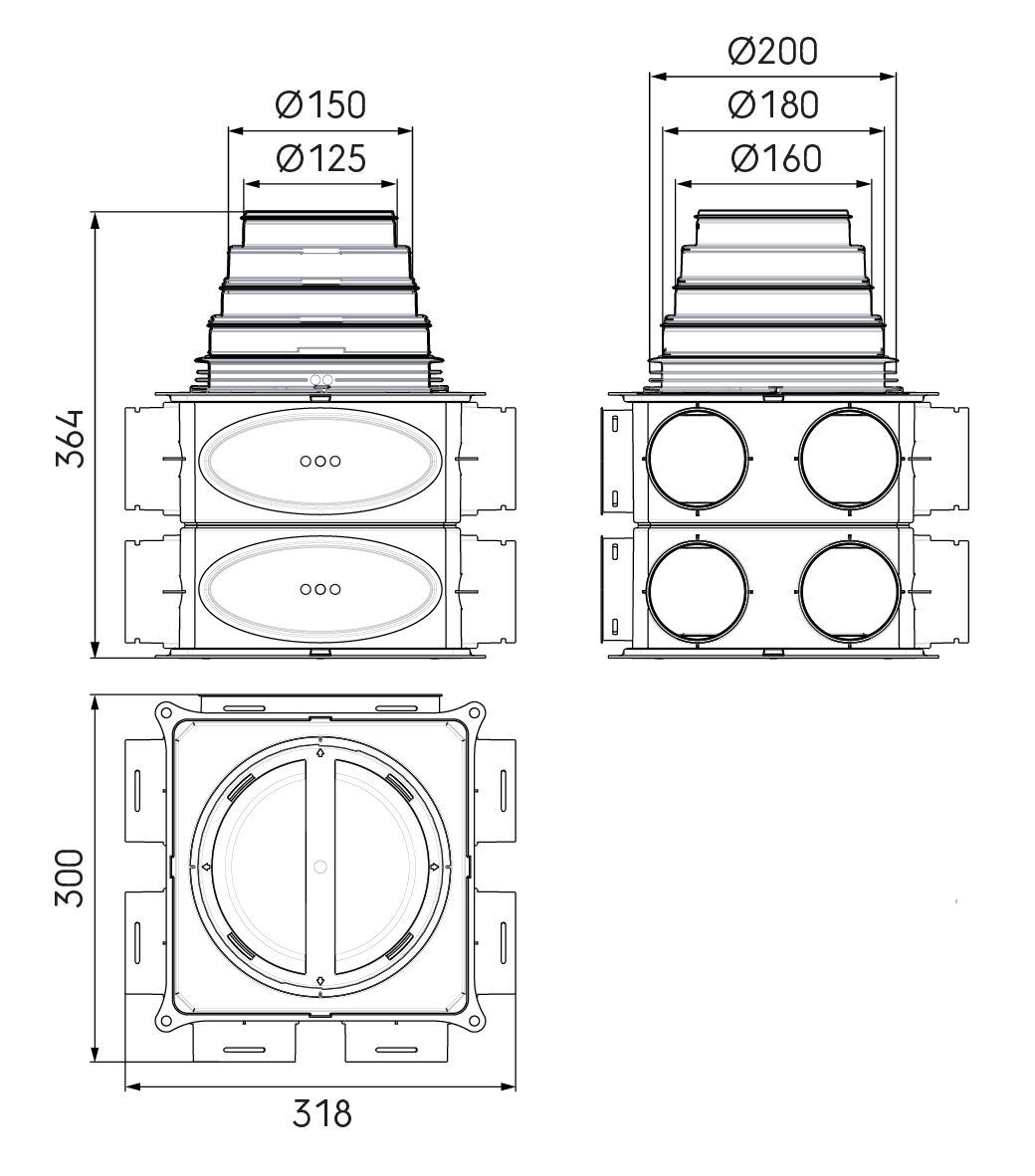

Dimensional drawing – DBOX 212 vertical extended, with stepped mass flow adaptor 125–200 mm

Air Excellent distribution box DB212V125-200VE 12 connections

Article number: 188964

Air Excellent DB212 vertical extended, with stepped mass flow adaptor 125–200mm
Air Excellent DB212 vertical extended, with stepped mass flow adaptor 125–200mm
Dimensional drawing – DBOX 212 vertical extended, with stepped mass flow adaptor 125–200 mm
Air Excellent DB212 vertical extended, with stepped mass flow adaptor 125–200mm
Air Excellent DB212 vertical extended, with stepped mass flow adaptor 125–200mm
Dimensional drawing – DBOX 212 vertical extended, with stepped mass flow adaptor 125–200 mm

The Air Excellent vertical DB212 is designed to radially distribute air from a ventilation unit, minimizing system pressure drop, fan energy use, and sound levels. It is compatible with Aerfoam insulated ducts and features 12 Air Excellent duct connections. With DBOX adaptors, it can connect to any duct diameter within the Air Excellent range. The compact box is ideal for small spaces, it can be installed on ceilings, walls, or floors.

  • Includes stepped adaptor, 12 internal air restrictor rings, and 6 covers for unused connections
  • Ideal for optimizing space in small areas
  • Made of durable, rust-free, lightweight plastic (PP) for easy handling and installation
  • Mechanical connections to minimize pressure loss, fan energy consumption, and sound levels
View all specifications

Detailed information

The Air Excellent vertical distribution box DB212 is a versatile and efficient solution, complete with a stepped adaptor, 12 internal air restrictor rings, and 6 covers for unused connections. The stepped adaptor accommodates all sizes of Aerfoam insulated ducts, offering flexible configuration options. The internal air restrictor rings allow precise control of the airflow rate to each room, ensuring optimal comfort throughout your space. Configuration is straightforward using the Aerflux ventilation configurator available on our website.

Specifications

General

Product Name
Air Excellent distribution box DB212V125-200VE 12 connections
GTIN
8713645246871
Trade name
Air Excellent
Type
Distribution Boxes
Accessories in package
Restrictions rings

Technical

Colour
Grey
Material
PP
Antimicrobial
Colour indication
RAL 7012
Anti static
Airflow direction
Supply / extract

Dimensions

Length gross
318 mm
Height
364 mm
Width
300 mm
Net weight
2.066 kg

Logistical

Intrastat
39259080
Base unit packaging
Box
Packaging / Trade length
330 mm
Packaging / Trade height
325 mm
Number per packaging
1
Gross weight
2.536 kg
Packaging / Trade width
330 mm

Performance

CE string
-
Temperature resistance (max.)
60 °C
Temperature resistance (min.)
-20 °C

Downloads

Installation manual

Installation manual - Distribution box 200 series

Technical data sheet

Technical data sheet - Air Excellent distribution box DB212V125-200VE 12 connections
