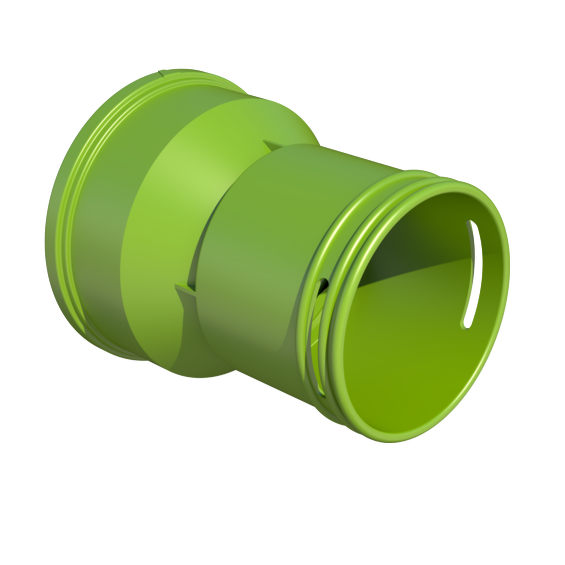

Air Excellent AE23C DBOX Adaptor

Article number: 188552

188552-AE23c-DBOXAdapter

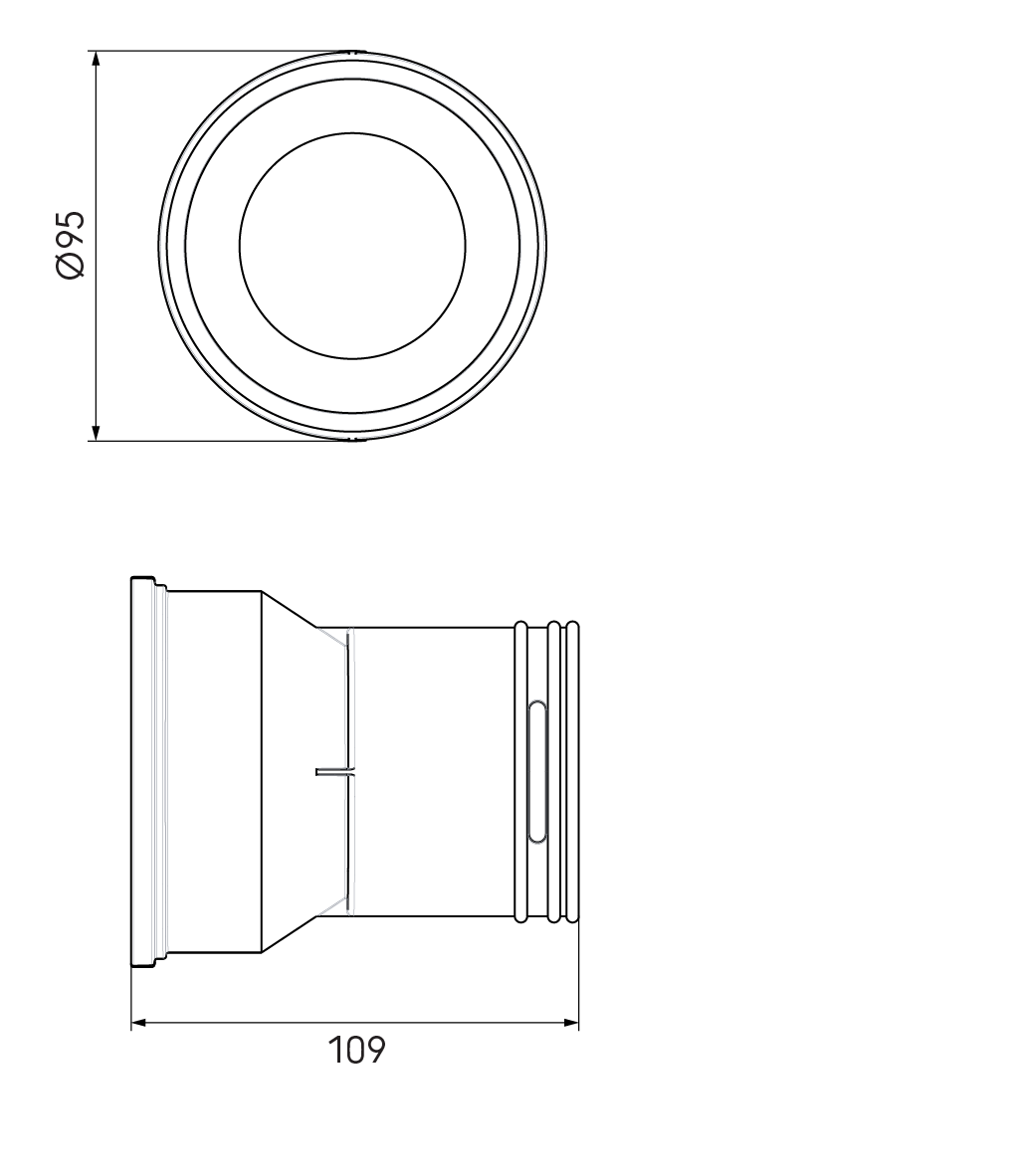

Dimensional drawing – AE23C DBOX Adaptor
188552-AE23c-DBOXAdapter
Dimensional drawing – AE23C DBOX Adaptor

An AE23C duct accessory used to connect a AE23C duct to a distribution box.

  • Modular manifolds, which can be used with all 6 duct types
  • Semi-rigid plastic ducts on a roll and airtight mechanical connections, which are extremely easy to install
  • Low system pressure loss due to radial design
  • Airtight (class D/ATC 2 up +/- 2000 Pa) thanks to mechanical connections, which minimises fan energy use and sound production
  • TÜV SÜD and ISEGA tested and certified, REACH compliant
View all specifications

Detailed information

This item is used to connect the AE23C duct to the Air Excellent distribution boxes. The adaptor has an airtight seal for the Air Excellent distribution boxes, but an AE23C seal ring and an AE23C click ring is required to connect the AE23C duct to it.

Specifications

General

Product Name
Air Excellent AE23C DBOX Adaptor
GTIN
8713645213477
Type
Adaptors
Trade name
Air Excellent

Technical

Comm. Dimension
63 mm
Material
PP
Anti static
Airflow direction
Supply / extract
Colour
Green
Shape
Circular
Antimicrobial

Dimensions

Length gross
109 mm
Height
95 mm
Width
95 mm
Net weight
0.05 kg

Logistical

Intrastat
39259080
Base unit packaging
Unpacked
Number per packaging
1
Gross weight
0.07 kg

Performance

Temperature resistance (min.)
-20 °C
Temperature resistance (max.)
60 °C
