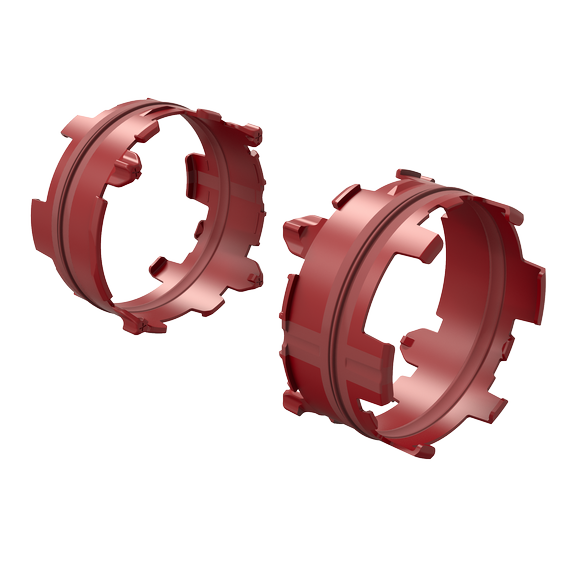

Air Excellent AE34C DBOX Connection Set

Article number: 188996

The AE34C DBOX Connection Set seamlessly connects a DBOX and an AE34C duct to a valve adaptor, ensuring a quick, secure and tool-free installation. Includes two AE34C Click-Seal Rings.

  • Airtight connections for reliable system performance
  • Low pressure loss to reduce fan energy use
  • Quick, tool-free installation
  • Lightweight design for easy handling
  • TÜV SÜD-certified for quality and safety
View all specifications

All media

Air Excellent AE34C DBOX Connection Set
Application picture - Air Excellent distribution box DB206H125 6 connections

Specifications

General

Product Name
Air Excellent AE34C DBOX Connection Set
Trade name
Air Excellent
GTIN
8713645247724

Technical

Comm. Dimension
75 mm
Shape
Circular
Anti static
Airflow direction
Supply / extract
Colour
Green
Number of connections
1
Antimicrobial

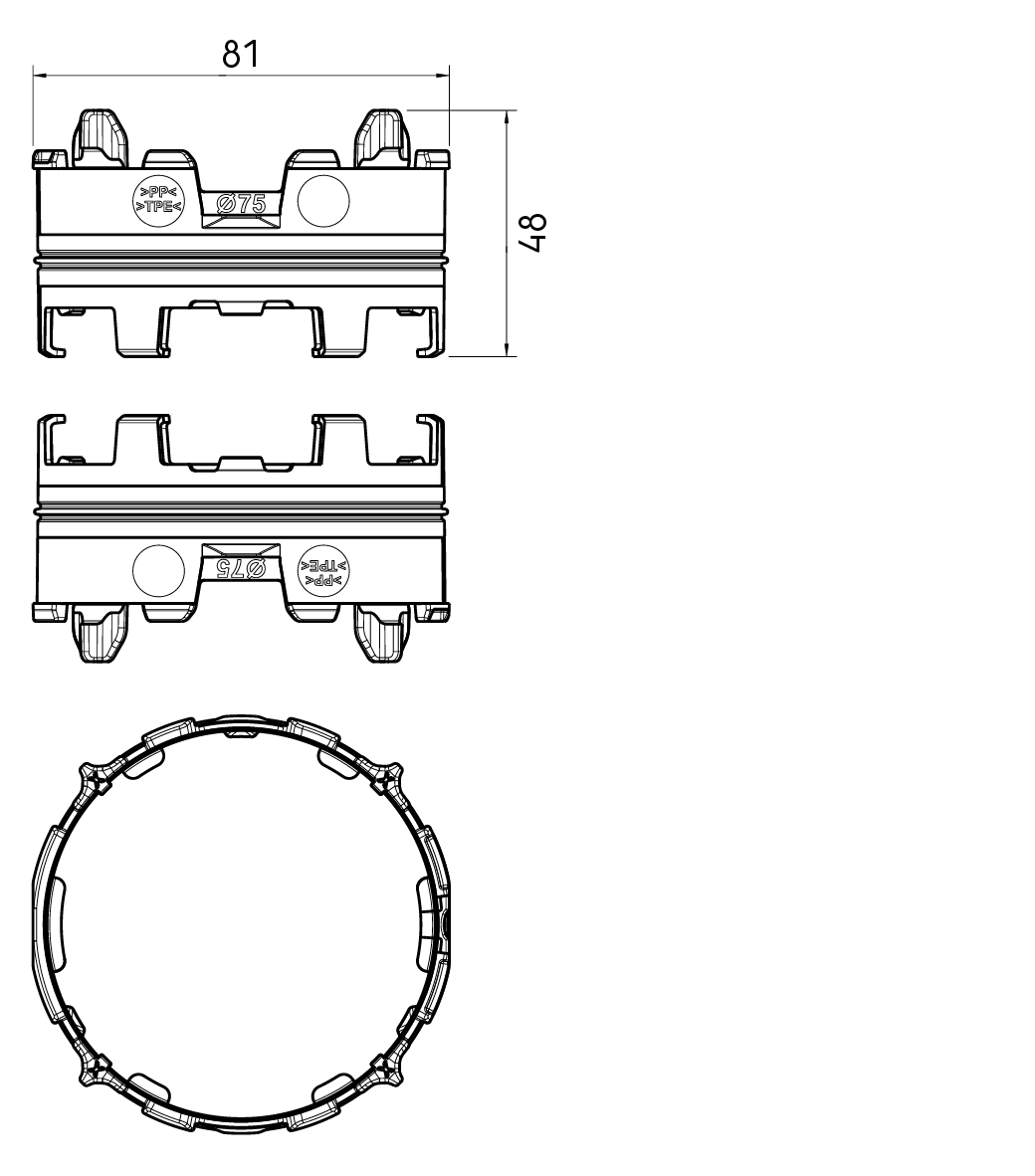

Dimensions

Length gross
81 mm
Height
48 mm
Width
81 mm
Net weight
0.13 kg

Logistical

Intrastat
39259080
Gross weight
0.26 kg
Packaging / Trade width
81 mm
Base unit packaging
Bag
Packaging / Trade length
81 mm
Packaging / Trade height
100 mm

Performance

CE string
-
Temperature resistance (max.)
60 °C
Temperature resistance (min.)
-20 °C
