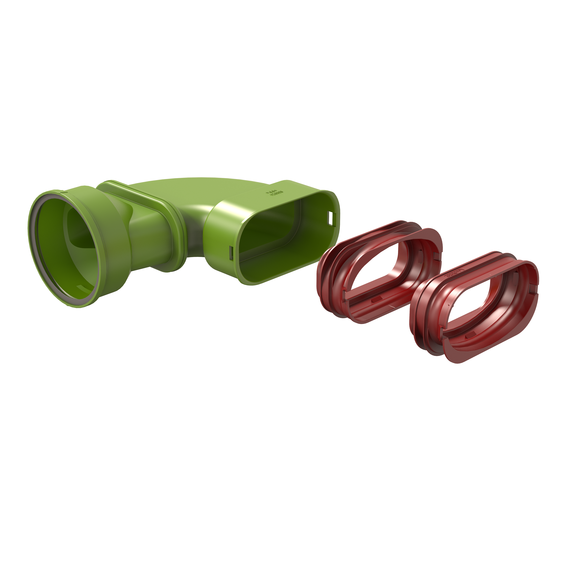

Air Excellent AE35SC DBOX Bend Connection Set

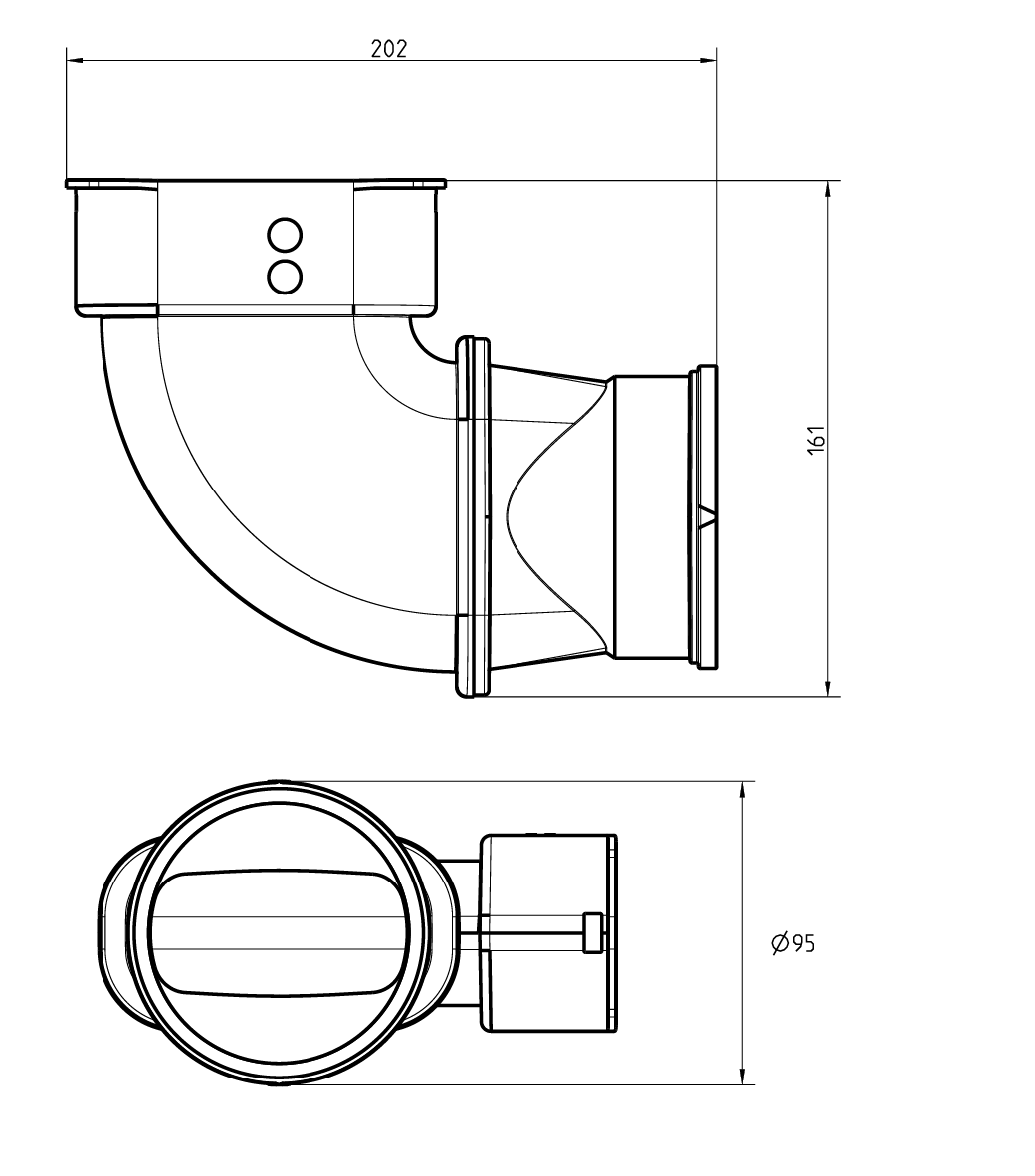

Dimensional drawing – Air Excellent AE35SC DBOX bend connection set

Air Excellent AE35SC DBOX Bend Connection Set

Article number: 188144

Air Excellent AE35SC DBOX Bend Connection Set
Dimensional drawing – Air Excellent AE35SC DBOX bend connection set
Air Excellent AE35SC DBOX Bend Connection Set
Dimensional drawing – Air Excellent AE35SC DBOX bend connection set

The Air Excellent DBOX bend connection is used to connect the AE35SC duct to the Air Excellent distribution box. The adaptor is supplied with two AE35SC seals to connect the duct and an integrated seal to connect the distribution box. These ensure an airtight mechanical connection without the need for tape or sealant.

  • Everything in one kit
  • Easy to install
  • Airtight (class D/ATC 2 up +/- 2000 Pa) thanks to mechanical connections, which minimises fan energy use and sound production
View all specifications

Specifications

General

Product Name
Air Excellent AE35SC DBOX Bend Connection Set
GTIN
8713645246185
Type
Adaptors
Trade name
Air Excellent

Technical

Colour
Green
Material
Plastic
Airflow direction
Supply / extract
Colour indication
RAL 6038
Shape
Semi-circular

Dimensions

Length gross
202 mm
Height
95 mm
Width
161 mm
Net weight
0.169 kg

Logistical

Intrastat
39259080
Gross weight
0.169 kg
Packaging / Trade width
161 mm
Base unit packaging
Wrapper
Packaging / Trade length
202 mm
Packaging / Trade height
95 mm

Performance

CE string
-
Temperature resistance (max.)
60 °C
Temperature resistance (min.)
-20 °C
