Air Excellent AE48C - AE55SC Adaptor

Article number: 188585

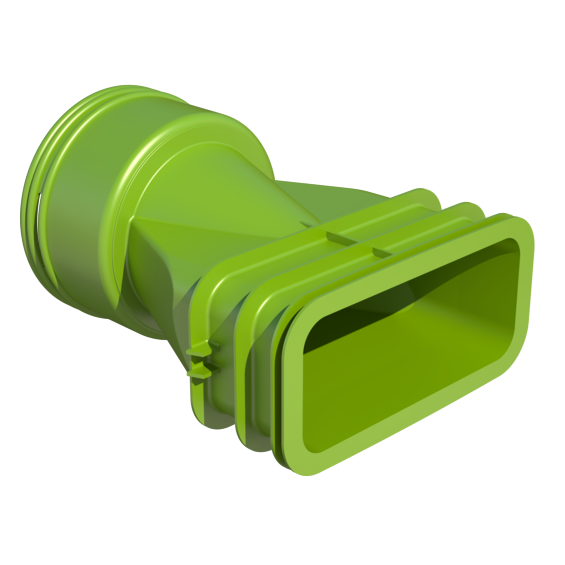

188585-AE55sc-AE48c-AdaptingPart
Dimensional drawing – AE48C - AE55SC Adaptor
188585-AE55sc-AE48c-AdaptingPart
Dimensional drawing – AE48C - AE55SC Adaptor

This item can be used to connect an AE48C duct to an AE55SC accessory

  • Modular manifolds, which can be used with all 6 duct types
  • Semi-rigid plastic ducts on a roll and airtight mechanical connections, which are extremely easy to install
  • Low system pressure loss due to radial design
  • Airtight (class D/ATC 2 up +/- 2000 Pa) thanks to mechanical connections, which minimises fan energy use and sound production
View all specifications

Specifications

General

Product Name
Air Excellent AE48C - AE55SC Adaptor
GTIN
8713645212166
Type
Adaptors
Trade name
Air Excellent

Technical

Comm. Dimension
60 x 130 mm / 90 mm
Material
PP
Antimicrobial
Colour
Green
Anti static
Airflow direction
Supply / extract

Dimensions

Length gross
175 mm
Height
102 mm
Width
143 mm
Net weight
0.09 kg

Logistical

Intrastat
39259080
Base unit packaging
Foil
Packaging / Trade length
143 mm
Packaging / Trade height
175 mm
Number per packaging
1
Gross weight
0.09 kg
Packaging / Trade width
101 mm

Performance

Temperature resistance (min.)
-20 °C
Temperature resistance (max.)
60 °C
