AE34c-FlexPipe-Untreated

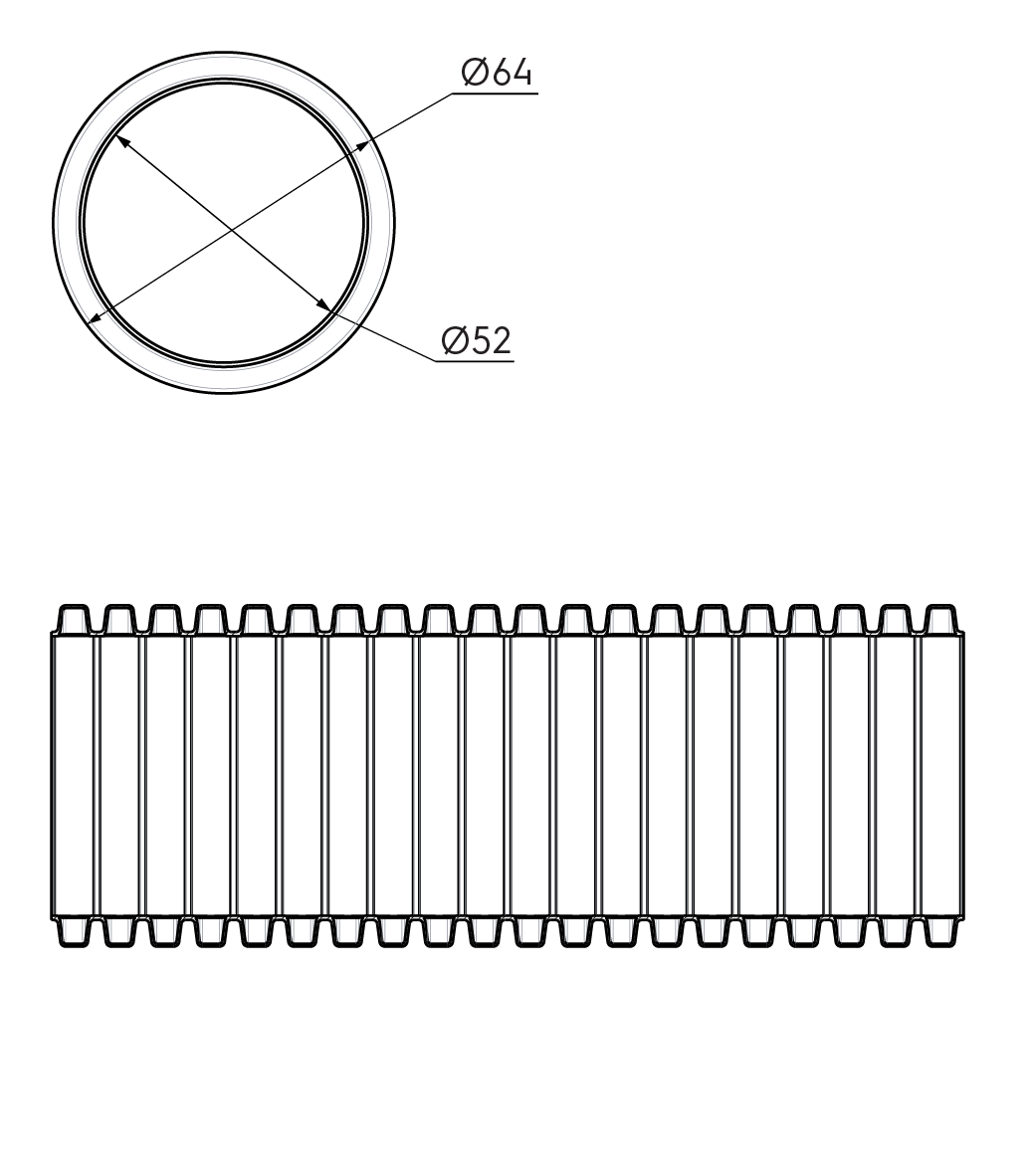

Dimensional drawing – AE23C Semi-Rigid Duct

Air Excellent AE23C Semi-Rigid Duct 50m

Article number: 188377

AE34c-FlexPipe-Untreated
Dimensional drawing – AE23C Semi-Rigid Duct
AE34c-FlexPipe-Untreated
Dimensional drawing – AE23C Semi-Rigid Duct

An Air Excellent semi-rigid plastic duct DN63/50mm without any additives.

  • Modular manifolds, which can be used with all 6 duct types
  • Semi-rigid plastic ducts on a roll and airtight mechanical connections, which are extremely easy to install
  • Low system pressure loss due to radial design
  • Airtight (class D/ATC 2 up +/- 2000 Pa) thanks to mechanical connections, which minimises fan energy use and sound production
View all specifications

Detailed information

This semi-rigid/bendable plastic duct is made of virgin PE to ensure its quality and durability and has a high-density outer layer with a ring stiffness of 10.83 kN/m2 in accordance with ISO 9969 and a smooth inner surface. It is easy to cut with a knife.

Specifications

General

Product Name
Air Excellent AE23C Semi-Rigid Duct 50m
GTIN
4049193055691
Type
Ductwork
Trade name
Air Excellent

Technical

Comm. Dimension
63 mm
Colour indication
RAL 6038
Shape
Circular
Antimicrobial
Colour
Green
Material
PE
Anti static
Airflow direction
Supply / extract

Dimensions

Length gross
50 m / 50000 mm
Height
64 mm
Width
64 mm

Logistical

Intrastat
39173200
Base unit packaging
Unpacked
Number per packaging
1
Gross weight
12.35 kg

Performance

Temperature resistance (min.)
-20 °C
Temperature resistance (max.)
60 °C
Installation temperature (max.)
50 °C
Installation temperature (min.)
0 °C

Downloads

Installation manual

Installation manual - Air Excellent ductwork

Technical data sheet

Technical data sheet - Air Excellent AE23C Semi-Rigid Duct 50m

Brochure/folder

Brochure - Air Excellent
