Air Excellent 2x AE23C Valve Adaptor 125mm 90°

Article number: 188341

AE34c-ValveAdapter

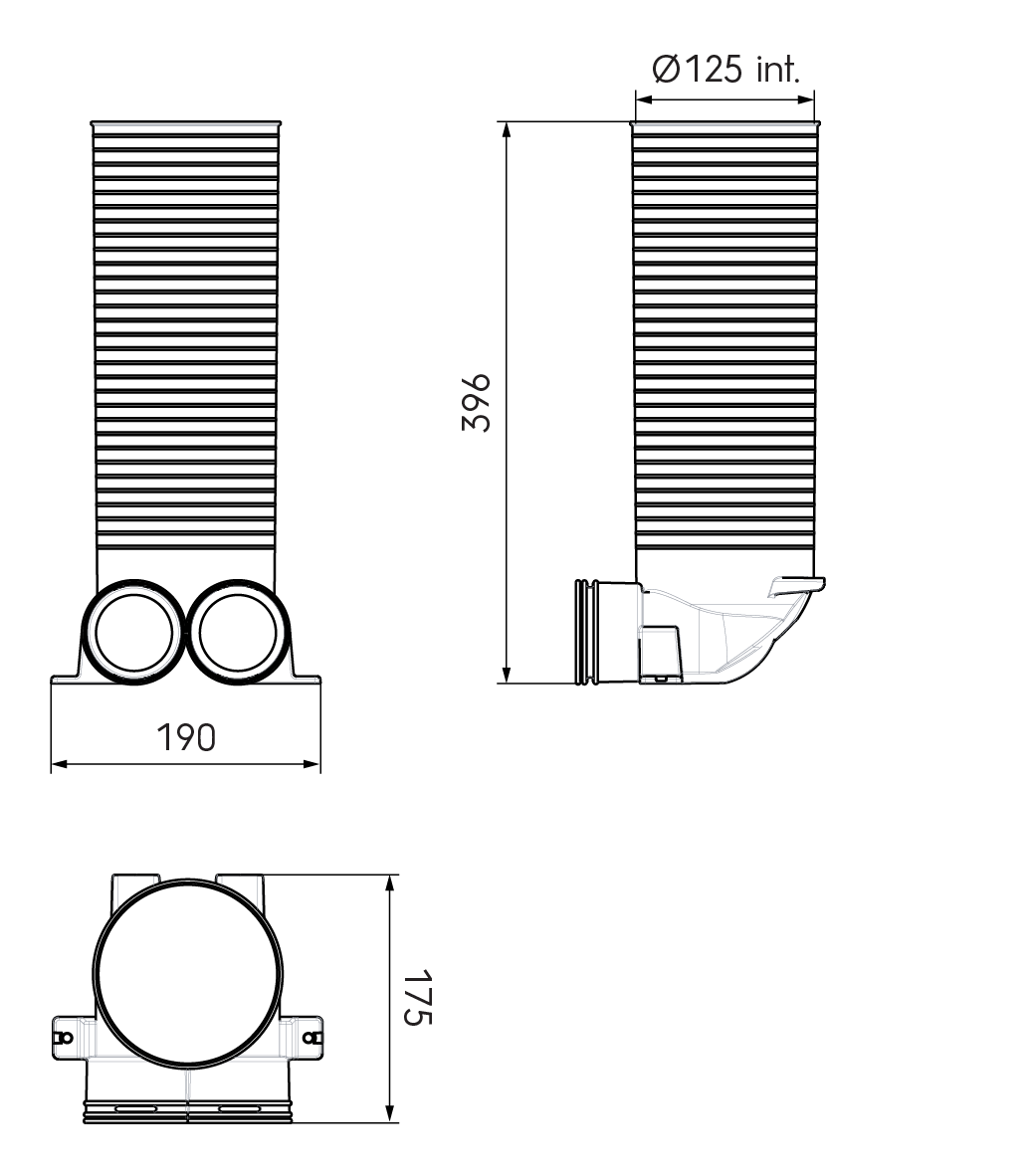

Dimensional drawing – 2x AE23C Valve Adaptor 125mm 90°
AE34c-ValveAdapter
Dimensional drawing – 2x AE23C Valve Adaptor 125mm 90°

An AE23C duct accessory. Use an AE23C seal ring and an AE23C click ring to connect the AE23C duct to it.

  • Modular manifolds, which can be used with all 6 duct types
  • Semi-rigid plastic ducts on a roll and airtight mechanical connections, which are extremely easy to install
  • Low system pressure loss due to radial design
  • Airtight (class D/ATC 2 up +/- 2000 Pa) thanks to mechanical connections, which minimises fan energy use and sound production
  • TÜV SÜD and ISEGA tested and certified, REACH compliant
View all specifications

Detailed information

This item can be used to terminate a duct run inside a habitable or wet room. A valve must be inserted into it.

Specifications

General

Product Name
Air Excellent 2x AE23C Valve Adaptor 125mm 90°
GTIN
8713645201412
Trade name
Air Excellent
Type
Adaptors
Accessories in package
Cover caps

Technical

Comm. Dimension
63 mm
Material
PP
Number of connections
2
Antimicrobial
true
Colour
Green
Shape
Circular
Anti static
true
Airflow direction
Supply / extract

Dimensions

Length gross
396 mm
Height
175 mm
Width
190 mm
Net weight
0.36 kg

Logistical

Intrastat
39259080
Base unit packaging
Unpacked
Packaging / Trade length
395 mm
Number per packaging
1
Gross weight
0.36 kg

Performance

Temperature resistance (min.)
-20 °C
Temperature resistance (max.)
60 °C
